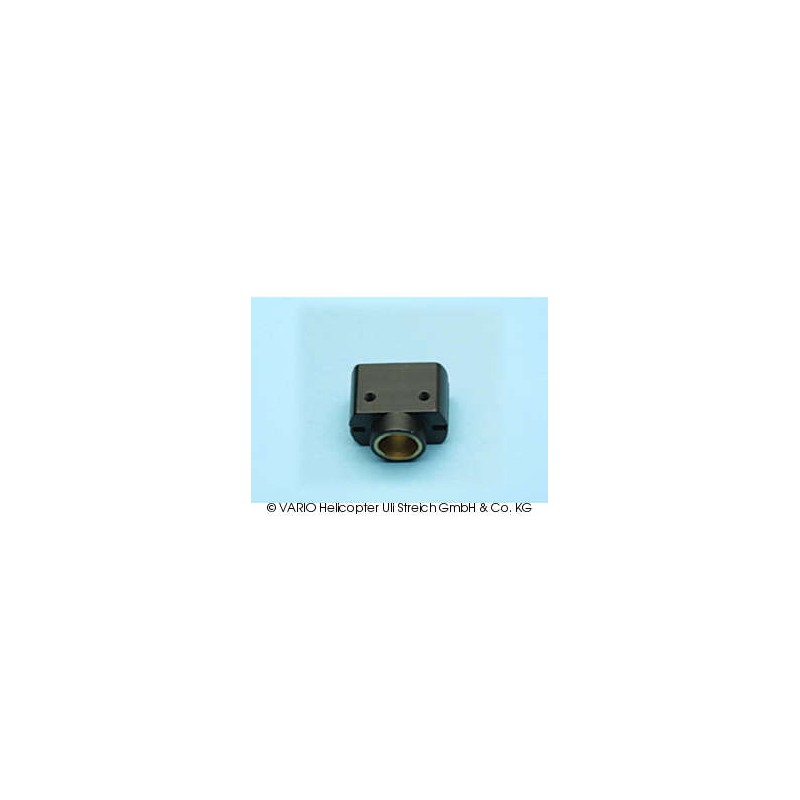

Mittelteil Alu, 10 mm

Référence: 91/60

Paddles

 Paddles1 pairapprox. 29 g eachfor 4 mm Ø flybar

Référence: 703/45

Rotor head linkage for Alouette III

This rotor head linkage is essential for the correct operation of the rotor head of the Alouette III due to its heavy take-off weight.

Référence: 1005/8

Kit de conversión varillaje directo para JetRanger XL eléctrico

Référence: 703/33

3-blade centre piece 12 mm

Component part for a multi-blade rotor head for 12 mm Ø main shaft; see Ord.No. 703/32, 704/32 resp. 705/32.

Référence: 54/18

Clamp ring for 12 mm

Same design as clamp ring 54/13, but for 12 mm Ø main rotor shaft.Clamp ring for pitch compensator 12 mm Ø, length of the pin 40 mm.

Référence: 87/4

Chape double 90°

A 90° twisted double ball-link connect the mixer lever to the ball collet on the flybar. Content of the package: 2 pieces

Référence: 832/69

Connecting elbow, aluminium

Connecting elbow, aluminiumPack of 2

Référence: 707/3

Rotor head cover for 3-blade head

155 mm diameter

Référence: 832/74

Joint torique 9 x 4.5 mm

O-ring 9 x 4.5 mm Content of the package: 4 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Référence: 78/45

Mixer lever set, aluminium

These mixer levers from aluminium are particularly torsion proof and feature an improved control precision. For individual settings you can change the connection of the linkage (relocate the balls).Flanged bearings 3 x 7 x 3 mm are suitable also, i.e. you use existing ballraces again.Place of installation: all rotor heads which are provided with the...

Référence: 78/40

Kit mélangeurs

Mixer levers are an essential part of every flybar-controlled rotor head. From the swashplate a pushrod runs to the ballraced mixer arm which is screwed to the blade holder arm. The mixer levers transmit the control movement to the flybar via the double ball-link.Additionial accessories for the use of mixer levers are either two flanged ballraces or two...

Référence: 80/30

Bras de commande en métal, 5 mm

Control bridge 2-part metal, for 5 mm ∅ flybar.

Référence: 82/52

Spacer washer for SKS rotor head

Spacer washer for SKS rotor head Content of the package: 2 pieces

Référence: 68/22

Aluminium side frames

Aluminium side frames for swashplate driver 68/20 and 68/50. Content of the package: 2 pieces

Référence: 480/54

Anillo de sujeción plateado con 3 orificios

Référence: 80/10

Cadre de commande, boules métal

The control bridge actuates the flybar. The servos pass the control commands to the swashplate. The collective pitch compensator connected to the swashplate transfers the movement to the control bridge via the angled pushrods. The flybar accepts the control commands and passes them on to the blade holders and the rotor disc.Control bridge, GRP, for 4 mm ∅...
