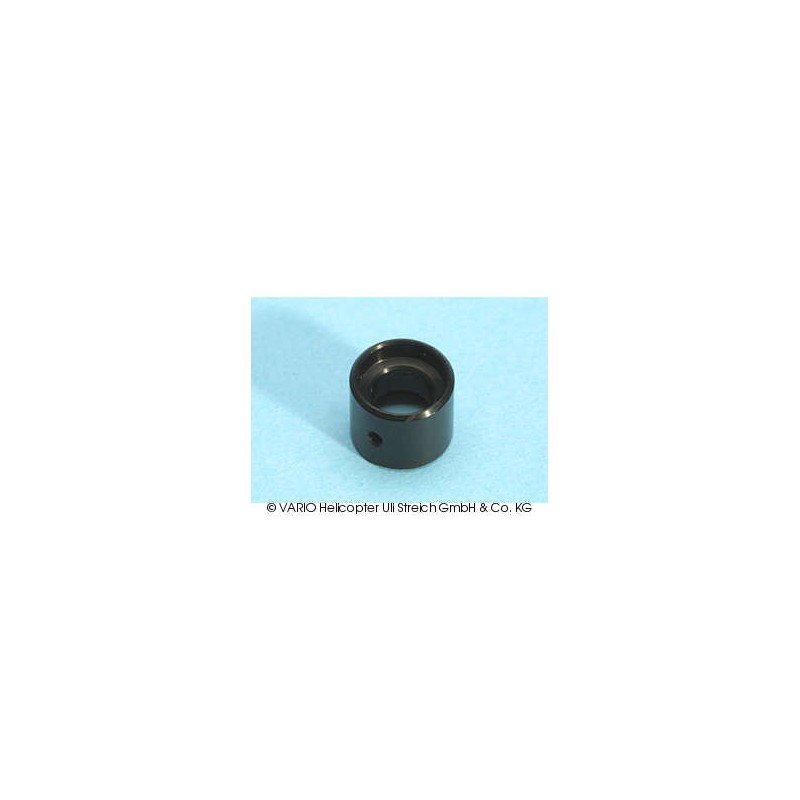

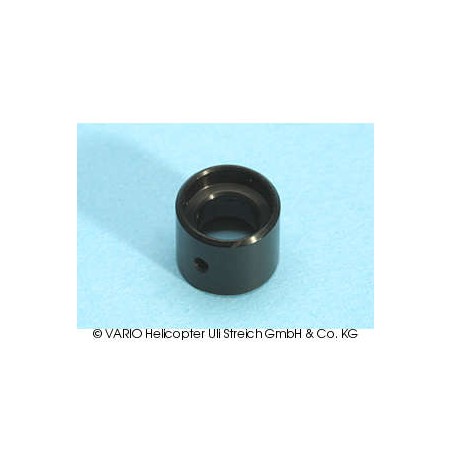

Steuerring für Heckrotor

Reference: 103/20

Tail blade holder set, rotor

Changing from a 2-blade tail rotor to a 3-blade version is quick and affordable if you use our complete blade holder set. The set includes all the components you need, including blade holder, thrust bearing, ballraces, ball-end bolt, screws etc., without 3-blade hub.

Reference: 97/12

Reinforced tail rotor bellcrank

The forces generated by the tail rotor rise significantly with large, heavy model helicopters; larger tail rotor blades also have the same effect. This reinforced aluminium tail rotor bellcrank is the item of choice wherever high control power is required, as it prevents the lever twisting.Reinforced tail rotor bellcrank, complete with screw fixings

Reference: 98/16

Control sleeve for tail rotor

 Control sleevefor tail rotor shaft 6 mm ∅with nut (left-hand thread!)

Reference: 92/38

Gehäusedeckel lang

Reference: 103/10

Tail blade holder

Tail blade holder for hub with 5 mm.

Reference: 92/39

Gehäuseverlängerung

Reference: 97/10

Bellcrank

Bellcrank, left-hand

Reference: 97/5

Return spring, chromed

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Reference: 054

Blade holder bolts M 3 x 20 mm G12 for tail rotor

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Reference: 95/20

Bevel gear set, speed up gearing

Bevel gear set, speed up gearing for the tail rotor of the Hughes 500, Ord.No. 9040, complete as illustrated.

Reference: 92/87

3-Blatt Heckrotor T-Rex-Lama

Reference: 94/15

Tail rotor shaft 5 x 84.5 mm

 Tail rotor shaft5 x 82 mm

Reference: 95/11

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 6 mm

Not available

Reference: 103/6

Tail blade holder

 Tail blade holder3-partfor 6 mm ∅ hub

Reference: 92/11

Srews set 12-part

 Screw set, 12-part1 x socket-head cap screw M 2 x 8 (90015)5 x socket-head cap screw M 2 x 10 (90020)6 x self-locking nut M 2 (90525)

Reference: 92/94

Fenestron control ring

 Content of the package1 piece
