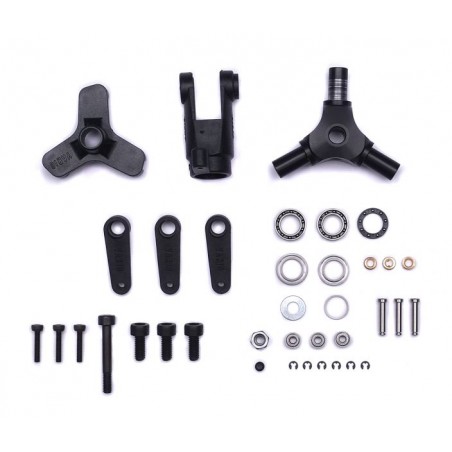

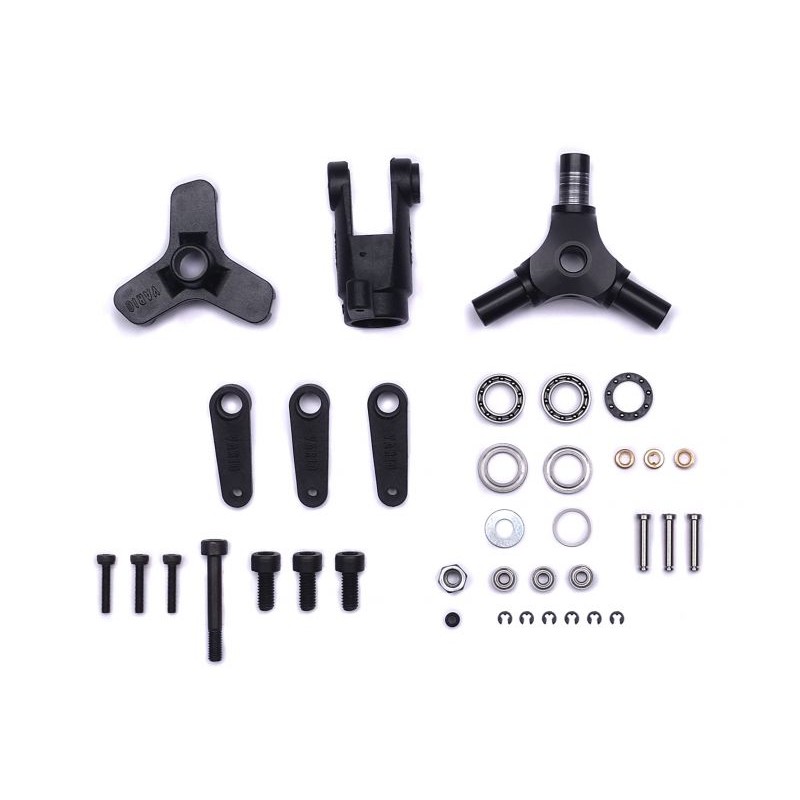

Heckrotor-Ergänzungsset 3-Blatt

Reference: 103/20

Tail blade holder set, rotor

Changing from a 2-blade tail rotor to a 3-blade version is quick and affordable if you use our complete blade holder set. The set includes all the components you need, including blade holder, thrust bearing, ballraces, ball-end bolt, screws etc., without 3-blade hub.

Reference: 92/36

Tail gearbox bearing holder

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Reference: 94/15

Tail rotor shaft 5 x 84.5 mm

 Tail rotor shaft5 x 82 mm

Reference: 95/11

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 6 mm

Not available

Reference: 34/5

Tail rotor pitch gauge

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Reference: 92/39

Gehäuseverlängerung

Reference: 94/18

Tail rotor shaft 6 x 87 mm

 Tail rotor shaft6 x 87 mm

Reference: 103/10

Tail blade holder

Tail blade holder for hub with 5 mm.

Reference: 95/10

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 5 mm

Not available

Reference: 92/38

Gehäusedeckel lang

Reference: 98/15

Control sleeve for tail rotor

 Control sleevefor tail rotor shaft 5 mm ∅with nut (left-hand thread!)

Reference: 97/13

Heckrotorumlenkhebel rechts verstärkt

Reference: 94/10

Tail rotor shaft 5 x 82 mm

 Tail rotor shaft5 x 82 mm

Reference: 97/16

Bellcrank aluminum right

Not available

Reference: 054

Blade holder bolts M 3 x 20 mm G12 for tail rotor

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Reference: 7/92

Tail rotor housing

 Content of the package1 piece
