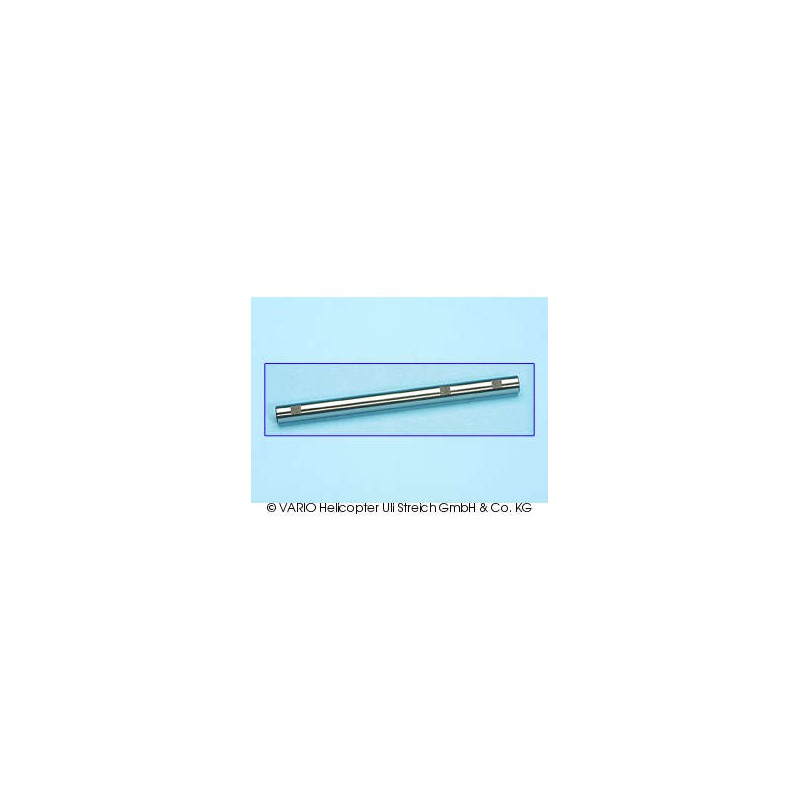

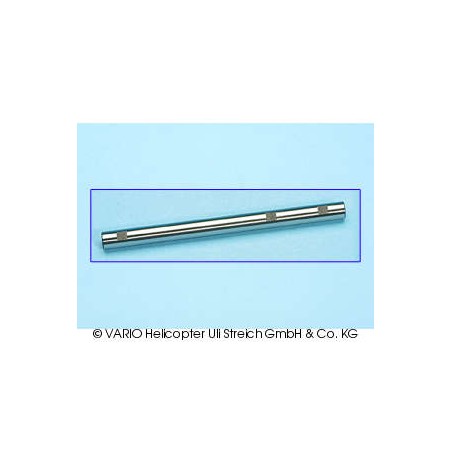

Heckrotorwelle 6 x 92 mm

Référence: 100/22

Raccords articulés

 Ball linkspack of 2shortconnection for ballraces

Référence: 054

Vis porte-pales anticouple M 3 x 20 mm G12

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Référence: 103/6

Porte-pales AC

 Tail blade holder3-partfor 6 mm ∅ hub

Référence: 98/16

Douille de commande AC

 Control sleevefor tail rotor shaft 6 mm ∅with nut (left-hand thread!)

Référence: 99/6

Bague de commande AC

 Control ringfor tail rotor shaft 6 mm ∅

Référence: 92/82

Heckrotor-Ergänzungsset 4-Blatt

Référence: 92/80

Kit complément anticouple

Scale tail rotor fittings set, complete as illustrated

Référence: 103/7

Porte-pales

Not available

Référence: 92/39

Gehäuseverlängerung

Référence: 34/5

Incidencemètre pour anticouple

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Référence: 94/10

Axe AC 5 x 82 mm

 Tail rotor shaft5 x 82 mm

Référence: 95/10

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 5 mm

Not available

Référence: 94/19

Heckrotorwelle 6 x 112 mm

Référence: 97/5

Ressort de rappel AC

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Référence: 100/7

Goupille 2 mm pour palonnier

Content of the package: 2 pieces.

Référence: 98/15

Douille de commande AC

 Control sleevefor tail rotor shaft 5 mm ∅with nut (left-hand thread!)
