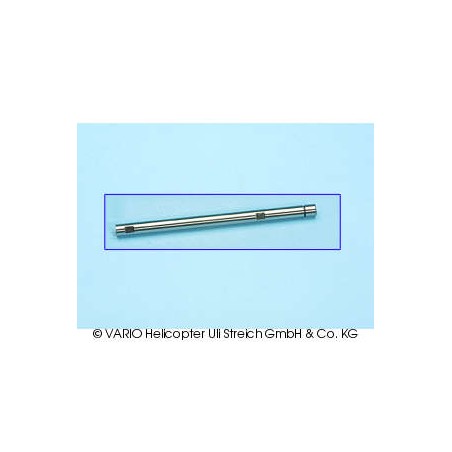

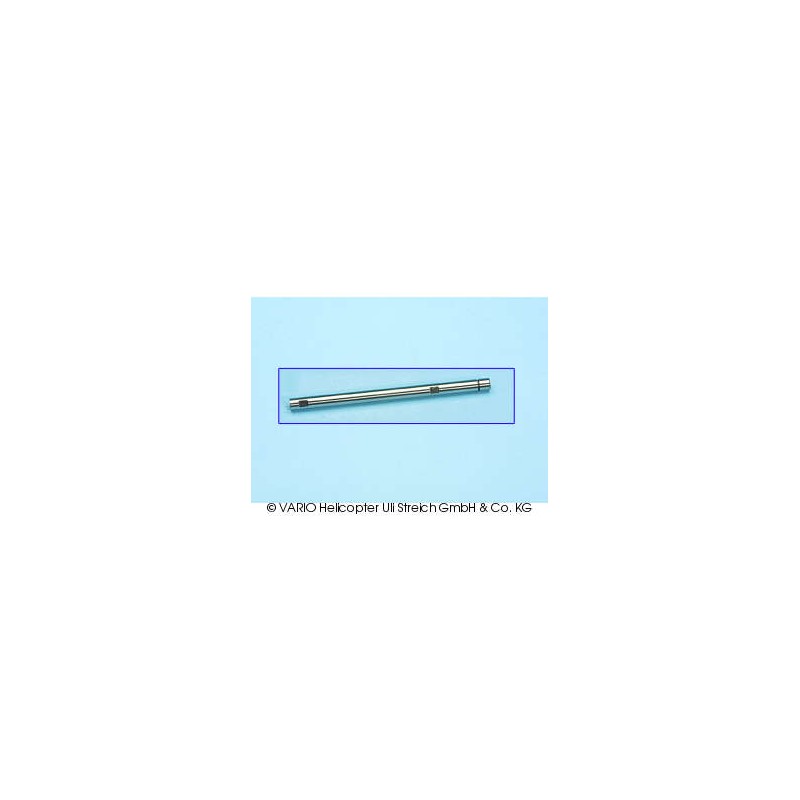

Albero rotore di coda 5 x 82 mm

Reference: 92/80

Scale tail rotor fittings set

Scale tail rotor fittings set, complete as illustrated

Reference: 95/5

Bevel gear 5 mm, 18-tooth

 Bevel gear5 mm18 toothmodule 0.8

Reference: 92/82

Heckrotor-Ergänzungsset 4-Blatt

Reference: 97/20

Bellcrank set

Bellcrank set, with flanged bearings, bush and shim washer

Reference: 92/36

Tail gearbox bearing holder

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Reference: 98/15

Control sleeve for tail rotor

 Control sleevefor tail rotor shaft 5 mm ∅with nut (left-hand thread!)

Reference: 95/11

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 6 mm

Not available

Reference: 103/10

Tail blade holder

Tail blade holder for hub with 5 mm.

Reference: 054

Blade holder bolts M 3 x 20 mm G12 for tail rotor

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Reference: 92/10

Tail rotor housing 2-part

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Reference: 95/20

Bevel gear set, speed up gearing

Bevel gear set, speed up gearing for the tail rotor of the Hughes 500, Ord.No. 9040, complete as illustrated.

Reference: 97/16

Bellcrank aluminum right

Not available

Reference: 95/7

Bevel gear 5mm, 19 tooth

  Bevel gear 5 mm 19 tooth module 0.8

Reference: 94 C

Circlip for 5 mm ∅ shaftOrd.No. 94 C

 Circlip for 5 mm ∅ shaftpack of 2

Reference: 99/9

Control ring for tail rotor

 Control ringfor tail rotor shaft 5 mm ∅

Reference: 92/37

Housing cover for tail rotor

Housing cover for aluminium tail rotor with 6 mm shaftaluminium
