Boccola scorrevole per coda

Riferimento: 92/94

Distanziale

 Content of the package1 piece

Riferimento: 97/13

Heckrotorumlenkhebel rechts verstärkt

Riferimento: 94/19

Heckrotorwelle 6 x 112 mm

Riferimento: 99/9

Distanziale rotore coda

 Control ringfor tail rotor shaft 5 mm ∅

Riferimento: 97/30

Leva commando rotore coda destra

Bellcrank, right-hand

Riferimento: 98/15

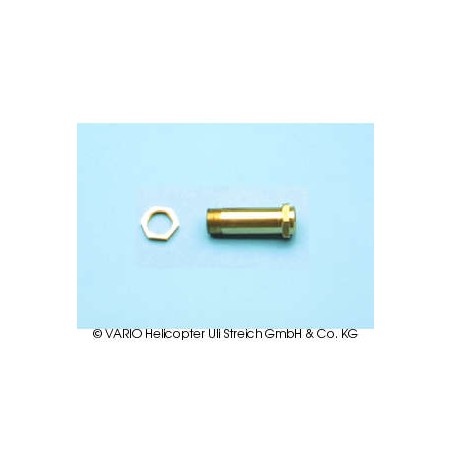

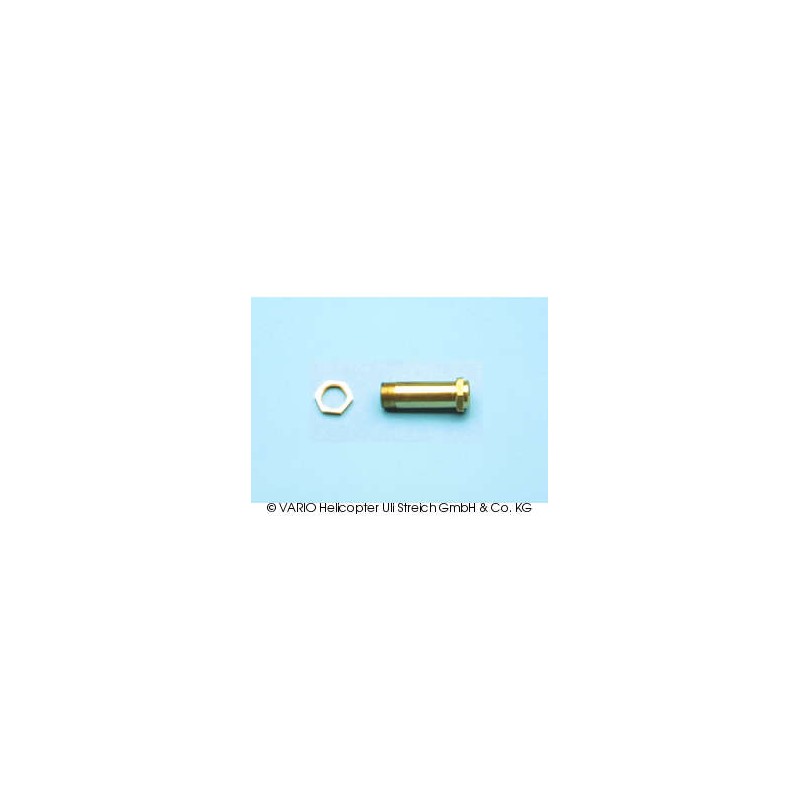

Boccola scorrevole per coda

 Control sleevefor tail rotor shaft 5 mm ∅with nut (left-hand thread!)

Riferimento: 92/36

Coperchio per carter coda, alluminio

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Riferimento: 054

Viti a brugola per fissaggio pale coda M3 x 20 G12

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Riferimento: 103/20

Set porta pale di coda

Changing from a 2-blade tail rotor to a 3-blade version is quick and affordable if you use our complete blade holder set. The set includes all the components you need, including blade holder, thrust bearing, ballraces, ball-end bolt, screws etc., without 3-blade hub.

Riferimento: 94/10

Albero rotore di coda 5 x 82 mm

 Tail rotor shaft5 x 82 mm

Riferimento: 34/5

Calettatore di passo per rotore di coda

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Riferimento: 97/10

Leva commando rotore coda

Bellcrank, left-hand

Riferimento: 95/5

Bevel gear 5 mm, 18-tooth

 Bevel gear5 mm18 toothmodule 0.8

Riferimento: 97/16

Bellcrank aluminum right

Not available

Riferimento: 92/11

Viti per carter rotore di coda

 Screw set, 12-part1 x socket-head cap screw M 2 x 8 (90015)5 x socket-head cap screw M 2 x 10 (90020)6 x self-locking nut M 2 (90525)

Riferimento: 100/12

Comandi snodati per rotore Coda

 Ball linkspack of 2shortconnection with ball-end bolts
