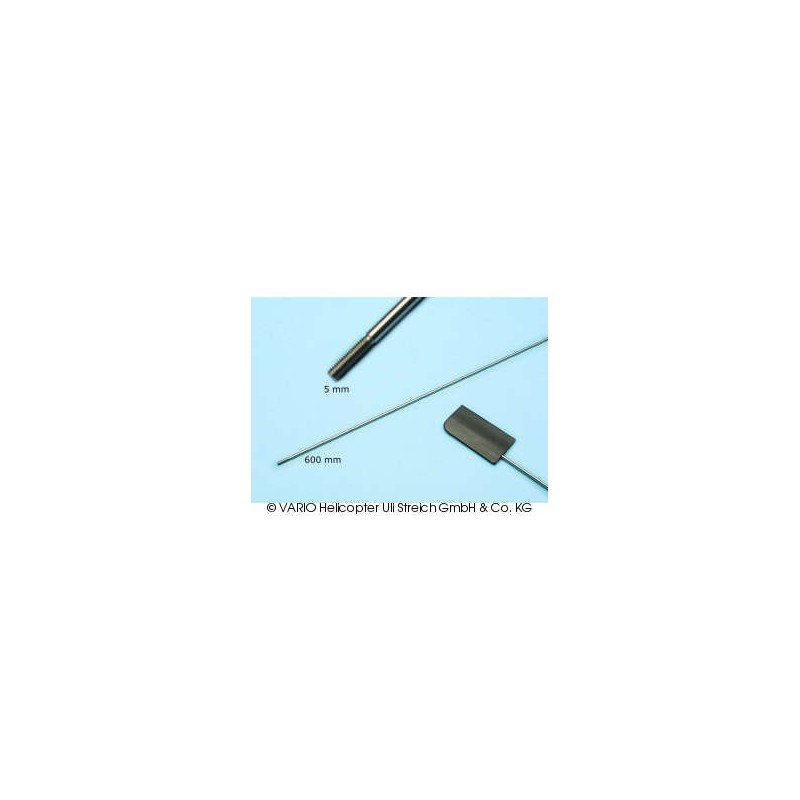

varilla estabilizadora (acero)5 x 600 m

Reference: 832/77

Spacer washer 6.0 x 21.8 x 4.0 mm

Spacer washer for rotor headContent of the package: 2 pieces

Reference: 86

Ball collet 4 mm

Ball collets provide the fixation of double ball-links on the flybar, in order to settle the essential distance to the rocker. Ball collet 4 mm Ø, pack of 2, chrome-plated.

Reference: 722/71

Collective pitch compensator 12 mm

Pitch compensator, complete, for 12 mm Ø main shaft, centre piece aluminium.For use with the rotor head Ord.No. 722/72.

Reference: 74/19

O-ring 1.5 x 19 mm soft

O-ring 1.5 x 19 mm soft Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 87/21

Washer for actuator arm 2.5 x 9 mm

Washer for actuator arm Content of the package: 2 pieces

Reference: 74/17

O-ring 2.5 x 13 mm soft

O-ring 2.5 x 13 mm soft Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 87/20

Actuating lever

The connection between mixer lever and variable rocker is carried out by an actuating lever, triple ballraced. Content of the package: 2 pieces

Reference: 74/7

Rotor head dampers for 2 blade FBL systems

Flybarless electronics have now become common. Where they are being used harder damping is required.For these cases Vario is now offering a harder damping of the blade shaft provided by a pretension absorbing element in the centre block.For the adjustment, the outer O-ring position can be selected between "hard" and "soft" flight characteristics.Important...

Reference: 704/31

4-blade centre piece, 10 mm

Item to a multi-blade rotor head for Ø 10 mm shaft; see Ord.No. 703/30, 704/30 and 705/30.

Reference: 832/74

O-ring 9 x 4.5 mm

O-ring 9 x 4.5 mm Content of the package: 4 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 117/20

Thrust bearing set complete

The standard version of our mechanics includes ground thrust bearing shafts with a of 8 mm Ø and a length of 110 mm.Thrust bearings absorb the high centrifugal forces exerted by the main rotor blades. The effect of the axial bearings is retained in full when the blade holders rotate.Thrust bearing set, complete as shown.

Reference: 705/33

5-blade centre piece 12 mm

Component part for a multi-blade rotor head for 12 mm Ø main shaft; see Ord.No. 703/32, 704/32 resp. 705/32.

Reference: 702/90

Aluminium centre piece

Aluminium centre piece for 12 mm Ø main shaft

Reference: 76/19

GRP blade holder, 5 mm ∅ hole

As demands on helicopters continue to rise, so stronger blade holders are required. In this case a 14 mm blade holder is combined with a 5 mm Ø hole for blade retention, i.e. the matching blade holder screws and self-locking nuts are M5 in size.GRP blade holder with short linkage armfor multi-blade rotor heads

Reference: 703/41

La palanca acodada, Alu

Reference: 702/92

Rotor head balance weight Bell 47 black

Not available
