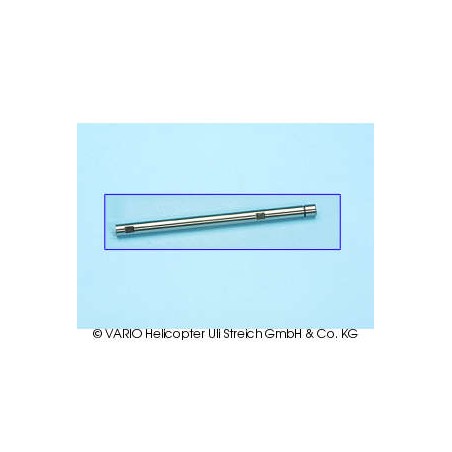

Eje rotor cola 5 x 82 mm

Reference: 100/22

Ball links for tail blade grips

 Ball linkspack of 2shortconnection for ballraces

Reference: 34/5

Tail rotor pitch gauge

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Reference: 97/30

Bellcrank, right-hand

Bellcrank, right-hand

Reference: 103/7

Tail blade Holder Alu

Not available

Reference: 103/10

Tail blade holder

Tail blade holder for hub with 5 mm.

Reference: 92/36

Tail gearbox bearing holder

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Reference: 99/9

Control ring for tail rotor

 Control ringfor tail rotor shaft 5 mm ∅

Reference: 92/38

Gehäusedeckel lang

Reference: 94/18

Tail rotor shaft 6 x 87 mm

 Tail rotor shaft6 x 87 mm

Reference: 92/10

Tail rotor housing 2-part

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Reference: 97/20

Bellcrank set

Bellcrank set, with flanged bearings, bush and shim washer

Reference: 92/80

Scale tail rotor fittings set

Scale tail rotor fittings set, complete as illustrated

Reference: 95/11

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 6 mm

Not available

Reference: 95/10

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 5 mm

Not available

Reference: 100/7

Pin 2 mm for control bridge

Content of the package: 2 pieces.

Reference: 98/16

Control sleeve for tail rotor

 Control sleevefor tail rotor shaft 6 mm ∅with nut (left-hand thread!)
