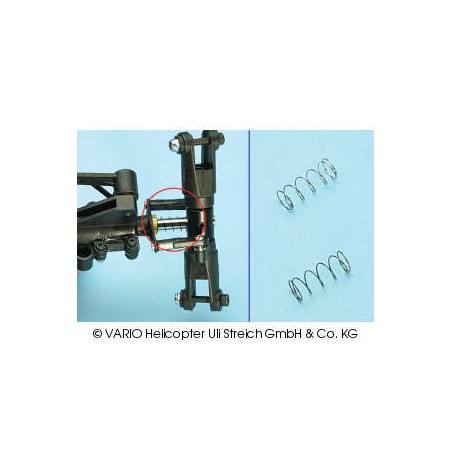

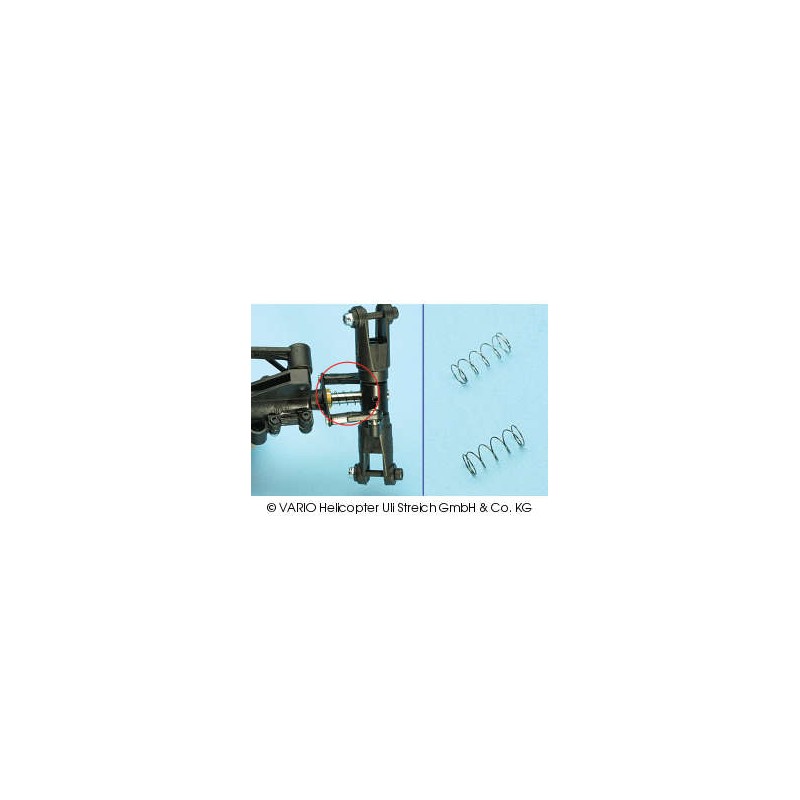

Muelle para rotor de cola

Riferimento: 97/15

Leva comando coda, alluminio , sinistra

Not available

Riferimento: 054

Viti a brugola per fissaggio pale coda M3 x 20 G12

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Riferimento: 97/13

Heckrotorumlenkhebel rechts verstärkt

Riferimento: 95/10

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 5 mm

Not available

Riferimento: 95/7

Ingranaggio conico 5 mm, 19 denti

  Bevel gear 5 mm 19 tooth module 0.8

Riferimento: 100/12

Comandi snodati per rotore Coda

 Ball linkspack of 2shortconnection with ball-end bolts

Riferimento: 95/5

Bevel gear 5 mm, 18-tooth

 Bevel gear5 mm18 toothmodule 0.8

Riferimento: 92/36

Coperchio per carter coda, alluminio

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Riferimento: 92/81

Heckrotor-Ergänzungsset 3-Blatt

Riferimento: 94/10

Albero rotore di coda 5 x 82 mm

 Tail rotor shaft5 x 82 mm

Riferimento: 97/10

Leva commando rotore coda

Bellcrank, left-hand

Riferimento: 103/6

Porta pale coda, tre parti

 Tail blade holder3-partfor 6 mm ∅ hub

Riferimento: 92/37

Coperchio per carter coda, VTR

Housing cover for aluminium tail rotor with 6 mm shaftaluminium

Riferimento: 92/10

Carter rotore di coda

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Riferimento: 92/38

Gehäusedeckel lang

Riferimento: 99/9

Distanziale rotore coda

 Control ringfor tail rotor shaft 5 mm ∅
