Brazos de control paso cola

Référence: 92/11

Kit visserie, 12 pièces

 Screw set, 12-part1 x socket-head cap screw M 2 x 8 (90015)5 x socket-head cap screw M 2 x 10 (90020)6 x self-locking nut M 2 (90525)

Référence: 92/94

Bague de commande pour Fenestron

 Content of the package1 piece

Référence: 97/16

Bellcrank aluminum right

Not available

Référence: 100/7

Goupille 2 mm pour palonnier

Content of the package: 2 pieces.

Référence: 97/5

Ressort de rappel AC

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Référence: 92/10

Boîtier AC

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Référence: 94/16

Axe AC 6 x 92 mm

 Tail rotor shaft6 x 92 mm

Référence: 95/5

Pignon 5 mm, 18 dents

 Bevel gear5 mm18 toothmodule 0.8

Référence: 054

Vis porte-pales anticouple M 3 x 20 mm G12

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Référence: 92/82

Heckrotor-Ergänzungsset 4-Blatt

Référence: 103/7

Porte-pales

Not available

Référence: 99/6

Bague de commande AC

 Control ringfor tail rotor shaft 6 mm ∅

Référence: 94 C

Circlips pour Ø 5 mmOrd.No. 94 C

 Circlip for 5 mm ∅ shaftpack of 2

Référence: 103/10

Porte-pales AC

Tail blade holder for hub with 5 mm.

Référence: 97/12

Renvoi d'anticouple, renforcé

The forces generated by the tail rotor rise significantly with large, heavy model helicopters; larger tail rotor blades also have the same effect. This reinforced aluminium tail rotor bellcrank is the item of choice wherever high control power is required, as it prevents the lever twisting.Reinforced tail rotor bellcrank, complete with screw fixings

Référence: 100/22

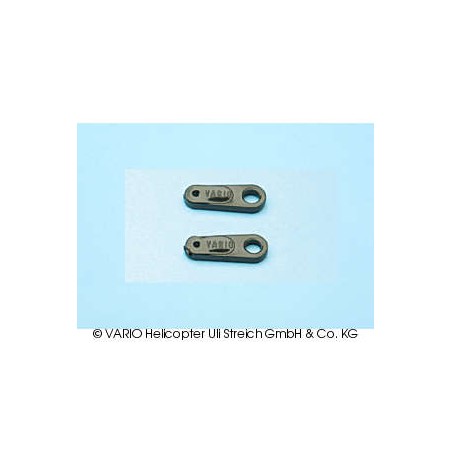

Raccords articulés

 Ball linkspack of 2shortconnection for ballraces
