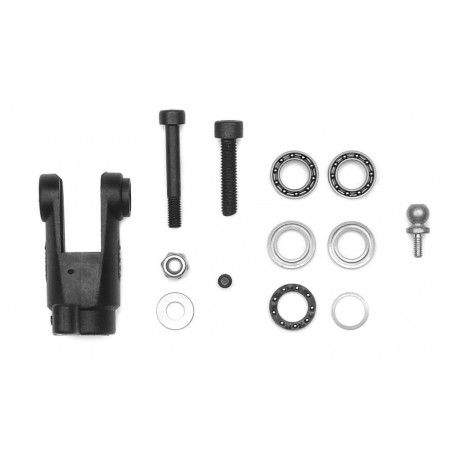

Cola Portapalas set, rotor

Référence: 95/20

Pignon-Kit augmentation régime rotor anticouple

Bevel gear set, speed up gearing for the tail rotor of the Hughes 500, Ord.No. 9040, complete as illustrated.

Référence: 7/92

Boîtier d'anticouple

 Content of the package1 piece

Référence: 99/9

Bague de commande AC

 Control ringfor tail rotor shaft 5 mm ∅

Référence: 98/16

Douille de commande AC

 Control sleevefor tail rotor shaft 6 mm ∅with nut (left-hand thread!)

Référence: 95/5

Pignon 5 mm, 18 dents

 Bevel gear5 mm18 toothmodule 0.8

Référence: 054

Vis porte-pales anticouple M 3 x 20 mm G12

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Référence: 100/12

Raccords articulés

 Ball linkspack of 2shortconnection with ball-end bolts

Référence: 97/5

Ressort de rappel AC

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Référence: 92/81

Heckrotor-Ergänzungsset 3-Blatt

Référence: 92/37

Couvercle alu pour boîtier AC alu

Housing cover for aluminium tail rotor with 6 mm shaftaluminium

Référence: 92/38

Gehäusedeckel lang

Référence: 92/36

Couvercle pour roulement, AC

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Référence: 97/12

Renvoi d'anticouple, renforcé

The forces generated by the tail rotor rise significantly with large, heavy model helicopters; larger tail rotor blades also have the same effect. This reinforced aluminium tail rotor bellcrank is the item of choice wherever high control power is required, as it prevents the lever twisting.Reinforced tail rotor bellcrank, complete with screw fixings

Référence: 99/6

Bague de commande AC

 Control ringfor tail rotor shaft 6 mm ∅

Référence: 92/39

Gehäuseverlängerung

Référence: 97/30

Palonnier AC, droite

Bellcrank, right-hand
