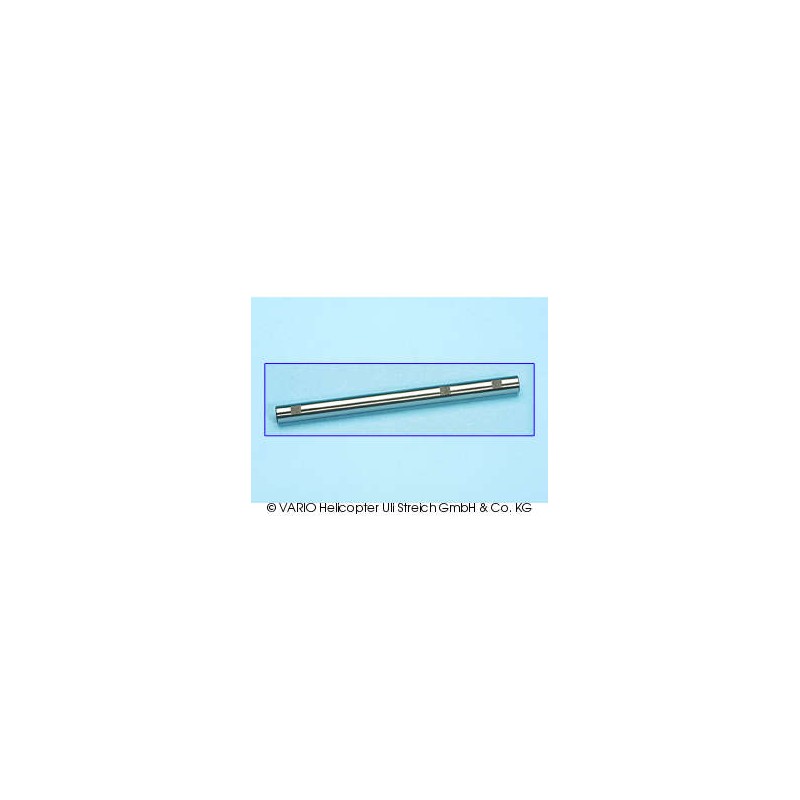

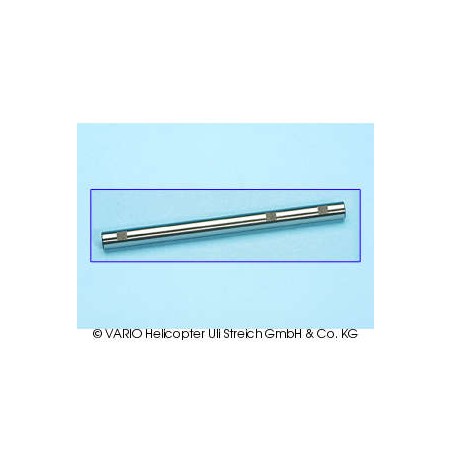

Eje rotor de cola 6 x 92 mm

Référence: 103/10

Porte-pales AC

Tail blade holder for hub with 5 mm.

Référence: 97/10

Palonnier AC

Bellcrank, left-hand

Référence: 100/7

Goupille 2 mm pour palonnier

Content of the package: 2 pieces.

Référence: 92/39

Gehäuseverlängerung

Référence: 95/7

Pignon 5 mm, 19 dents

  Bevel gear 5 mm 19 tooth module 0.8

Référence: 97/16

Bellcrank aluminum right

Not available

Référence: 94/18

Axe AC 6 x 87 mm

 Tail rotor shaft6 x 87 mm

Référence: 97/20

Kit palonnier AC

Bellcrank set, with flanged bearings, bush and shim washer

Référence: 99/9

Bague de commande AC

 Control ringfor tail rotor shaft 5 mm ∅

Référence: 94/10

Axe AC 5 x 82 mm

 Tail rotor shaft5 x 82 mm

Référence: 97/5

Ressort de rappel AC

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Référence: 34/5

Incidencemètre pour anticouple

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Référence: 100/12

Raccords articulés

 Ball linkspack of 2shortconnection with ball-end bolts

Référence: 97/30

Palonnier AC, droite

Bellcrank, right-hand

Référence: 92/10

Boîtier AC

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Référence: 95/10

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 5 mm

Not available
