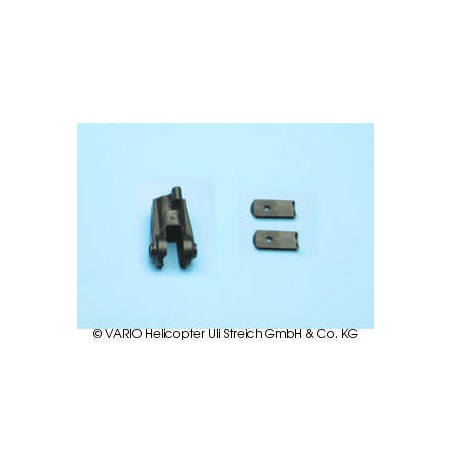

Cola Portapalas

Riferimento: 92/39

Gehäuseverlängerung

Riferimento: 95/5

Bevel gear 5 mm, 18-tooth

 Bevel gear5 mm18 toothmodule 0.8

Riferimento: 103/7

Boccola 5 x 6 x 14 mm

Not available

Riferimento: 97/5

Molle per rotore coda

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Riferimento: 98/16

Boccola scorrevole per coda

 Control sleevefor tail rotor shaft 6 mm ∅with nut (left-hand thread!)

Riferimento: 95/7

Ingranaggio conico 5 mm, 19 denti

  Bevel gear 5 mm 19 tooth module 0.8

Riferimento: 99/6

Distanziale rotore coda

 Control ringfor tail rotor shaft 6 mm ∅

Riferimento: 34/5

Calettatore di passo per rotore di coda

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Riferimento: 97/15

Leva comando coda, alluminio , sinistra

Not available

Riferimento: 97/12

Comando passo coda rinforzato

The forces generated by the tail rotor rise significantly with large, heavy model helicopters; larger tail rotor blades also have the same effect. This reinforced aluminium tail rotor bellcrank is the item of choice wherever high control power is required, as it prevents the lever twisting.Reinforced tail rotor bellcrank, complete with screw fixings

Riferimento: 97/10

Leva commando rotore coda

Bellcrank, left-hand

Riferimento: 97/20

Set leva commando rotore coda

Bellcrank set, with flanged bearings, bush and shim washer

Riferimento: 94/10

Albero rotore di coda 5 x 82 mm

 Tail rotor shaft5 x 82 mm

Riferimento: 98/15

Boccola scorrevole per coda

 Control sleevefor tail rotor shaft 5 mm ∅with nut (left-hand thread!)

Riferimento: 94/18

Albero ø 6 x 87 mm.

 Tail rotor shaft6 x 87 mm

Riferimento: 95/20

Ingranaggio-Set per alzare i giri

Bevel gear set, speed up gearing for the tail rotor of the Hughes 500, Ord.No. 9040, complete as illustrated.
