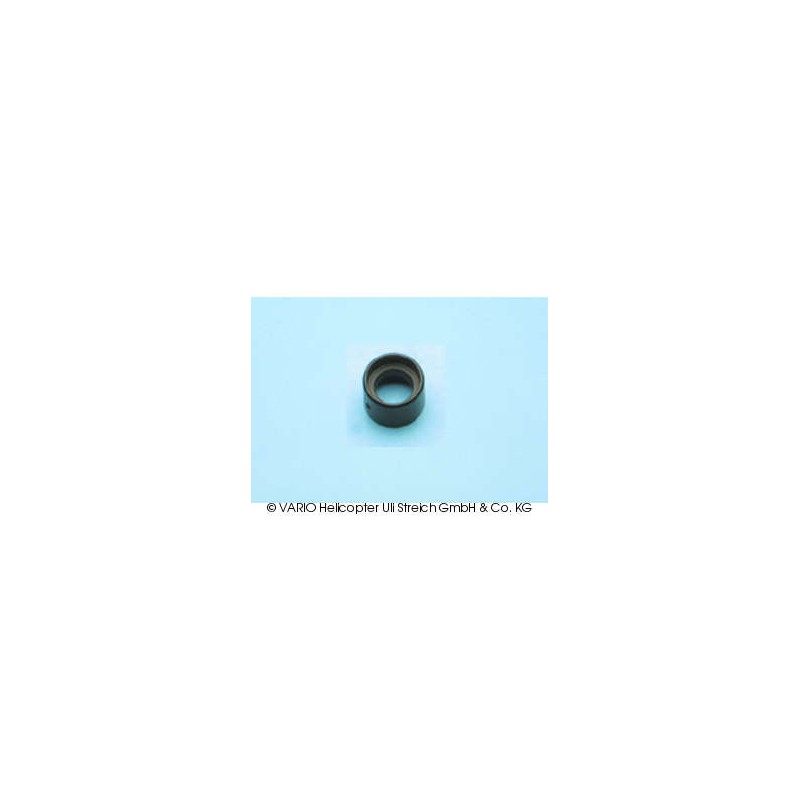

Anillo para manga de control cola, 6mm

Référence: 100/7

Goupille 2 mm pour palonnier

Content of the package: 2 pieces.

Référence: 103/20

Jeu porte-pales AC

Changing from a 2-blade tail rotor to a 3-blade version is quick and affordable if you use our complete blade holder set. The set includes all the components you need, including blade holder, thrust bearing, ballraces, ball-end bolt, screws etc., without 3-blade hub.

Référence: 92/11

Kit visserie, 12 pièces

 Screw set, 12-part1 x socket-head cap screw M 2 x 8 (90015)5 x socket-head cap screw M 2 x 10 (90020)6 x self-locking nut M 2 (90525)

Référence: 95/11

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 6 mm

Not available

Référence: 97/30

Palonnier AC, droite

Bellcrank, right-hand

Référence: 95/5

Pignon 5 mm, 18 dents

 Bevel gear5 mm18 toothmodule 0.8

Référence: 92/36

Couvercle pour roulement, AC

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Référence: 100/12

Raccords articulés

 Ball linkspack of 2shortconnection with ball-end bolts

Référence: 92/10

Boîtier AC

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Référence: 92/82

Heckrotor-Ergänzungsset 4-Blatt

Référence: 92/87

3-Blatt Heckrotor T-Rex-Lama

Référence: 7/92

Boîtier d'anticouple

 Content of the package1 piece

Référence: 92/81

Heckrotor-Ergänzungsset 3-Blatt

Référence: 054

Vis porte-pales anticouple M 3 x 20 mm G12

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Référence: 103/6

Porte-pales AC

 Tail blade holder3-partfor 6 mm ∅ hub

Référence: 97/5

Ressort de rappel AC

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...
