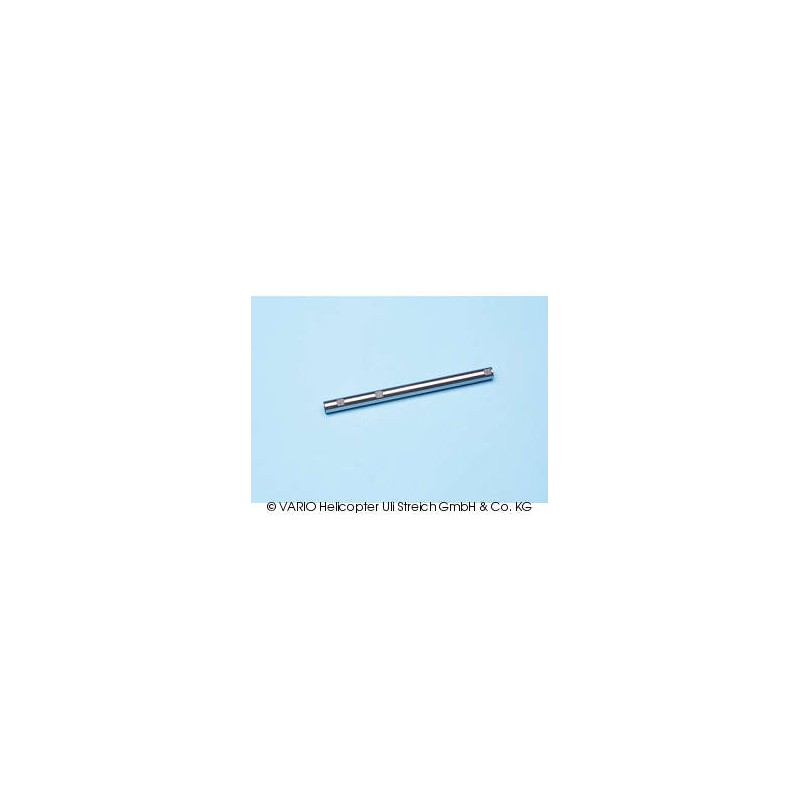

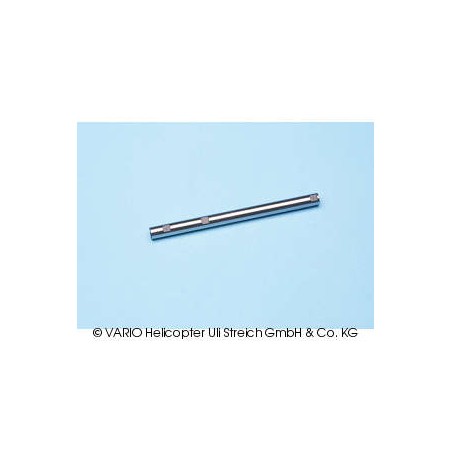

Eje roto de cola 6x87mm, Lama

Reference: 95/5

Bevel gear 5 mm, 18-tooth

 Bevel gear5 mm18 toothmodule 0.8

Reference: 34/5

Tail rotor pitch gauge

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Reference: 92/36

Tail gearbox bearing holder

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Reference: 103/7

Tail blade Holder Alu

Not available

Reference: 92/37

Housing cover for tail rotor

Housing cover for aluminium tail rotor with 6 mm shaftaluminium

Reference: 7/92

Tail rotor housing

 Content of the package1 piece

Reference: 95/7

Bevel gear 5mm, 19 tooth

  Bevel gear 5 mm 19 tooth module 0.8

Reference: 94/15

Tail rotor shaft 5 x 84.5 mm

 Tail rotor shaft5 x 82 mm

Reference: 92/10

Tail rotor housing 2-part

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Reference: 99/9

Control ring for tail rotor

 Control ringfor tail rotor shaft 5 mm ∅

Reference: 98/15

Control sleeve for tail rotor

 Control sleevefor tail rotor shaft 5 mm ∅with nut (left-hand thread!)

Reference: 95/11

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 6 mm

Not available

Reference: 95/10

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 5 mm

Not available

Reference: 92/82

Heckrotor-Ergänzungsset 4-Blatt

Reference: 103/20

Tail blade holder set, rotor

Changing from a 2-blade tail rotor to a 3-blade version is quick and affordable if you use our complete blade holder set. The set includes all the components you need, including blade holder, thrust bearing, ballraces, ball-end bolt, screws etc., without 3-blade hub.

Reference: 98/16

Control sleeve for tail rotor

 Control sleevefor tail rotor shaft 6 mm ∅with nut (left-hand thread!)
