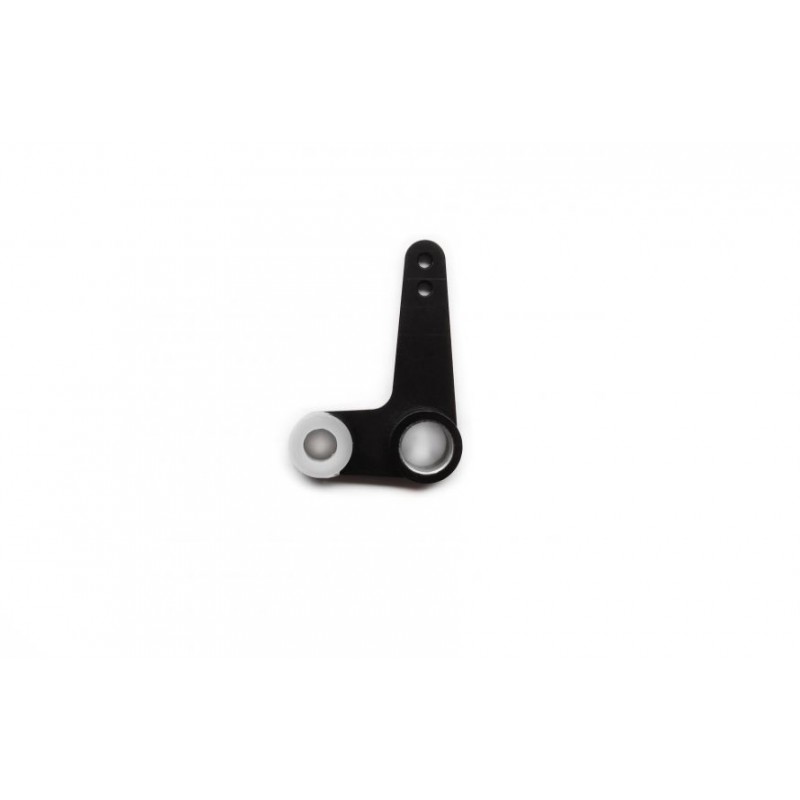

Escuadra de mando aluminio, izquierda

Riferimento: 95/7

Ingranaggio conico 5 mm, 19 denti

  Bevel gear 5 mm 19 tooth module 0.8

Riferimento: 97/13

Heckrotorumlenkhebel rechts verstärkt

Riferimento: 92/87

3-Blatt Heckrotor T-Rex-Lama

Riferimento: 92/37

Coperchio per carter coda, VTR

Housing cover for aluminium tail rotor with 6 mm shaftaluminium

Riferimento: 92/80

Set per ampliamento del rotore di coda a tre pale

Scale tail rotor fittings set, complete as illustrated

Riferimento: 34/5

Calettatore di passo per rotore di coda

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Riferimento: 054

Viti a brugola per fissaggio pale coda M3 x 20 G12

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Riferimento: 97/5

Molle per rotore coda

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Riferimento: 98/15

Boccola scorrevole per coda

 Control sleevefor tail rotor shaft 5 mm ∅with nut (left-hand thread!)

Riferimento: 100/12

Comandi snodati per rotore Coda

 Ball linkspack of 2shortconnection with ball-end bolts

Riferimento: 94/10

Albero rotore di coda 5 x 82 mm

 Tail rotor shaft5 x 82 mm

Riferimento: 100/7

Spina 2 mm per trascinatore

Content of the package: 2 pieces.

Riferimento: 97/20

Set leva commando rotore coda

Bellcrank set, with flanged bearings, bush and shim washer

Riferimento: 92/10

Carter rotore di coda

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Riferimento: 92/36

Coperchio per carter coda, alluminio

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Riferimento: 92/82

Heckrotor-Ergänzungsset 4-Blatt
