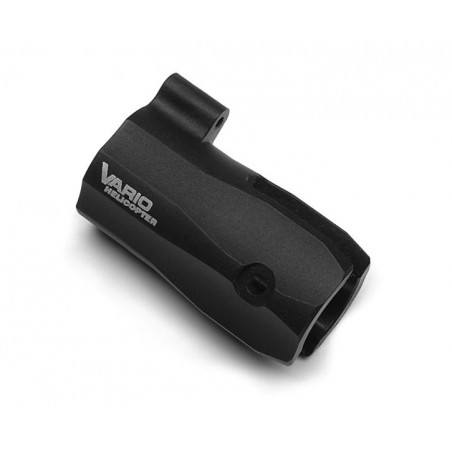

Cola Portapalas Aluminio

Reference: 94/19

Heckrotorwelle 6 x 112 mm

Reference: 100/12

Ball links for tail blade grips

 Ball linkspack of 2shortconnection with ball-end bolts

Reference: 97/30

Bellcrank, right-hand

Bellcrank, right-hand

Reference: 92/10

Tail rotor housing 2-part

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Reference: 94/15

Tail rotor shaft 5 x 84.5 mm

 Tail rotor shaft5 x 82 mm

Reference: 98/16

Control sleeve for tail rotor

 Control sleevefor tail rotor shaft 6 mm ∅with nut (left-hand thread!)

Reference: 92/36

Tail gearbox bearing holder

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Reference: 97/5

Return spring, chromed

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Reference: 92/39

Gehäuseverlängerung

Reference: 054

Blade holder bolts M 3 x 20 mm G12 for tail rotor

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Reference: 34/5

Tail rotor pitch gauge

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Reference: 95/7

Bevel gear 5mm, 19 tooth

  Bevel gear 5 mm 19 tooth module 0.8

Reference: 92/87

3-Blatt Heckrotor T-Rex-Lama

Reference: 92/80

Scale tail rotor fittings set

Scale tail rotor fittings set, complete as illustrated

Reference: 103/20

Tail blade holder set, rotor

Changing from a 2-blade tail rotor to a 3-blade version is quick and affordable if you use our complete blade holder set. The set includes all the components you need, including blade holder, thrust bearing, ballraces, ball-end bolt, screws etc., without 3-blade hub.

Reference: 97/20

Bellcrank set

Bellcrank set, with flanged bearings, bush and shim washer
