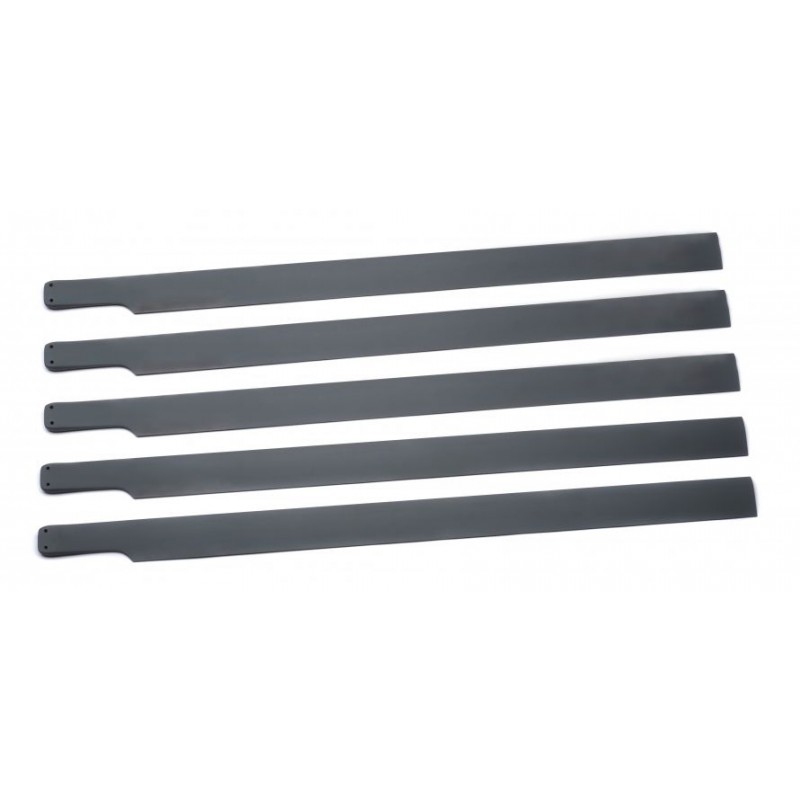

Set 5 palas1880mm

Reference: 410/3

Juego de 3 cuchillas 1350 mm 1L simétrico

Reference: F428

Reflex blades 2000 mm

Rotor blade, rotor disc 2000 mm Ø Specification 14.0 mm blade root 910 mm long 75.0 mm blade chord 290 g approx. 11.0 mm profile thickness GRP, reflex 1 pair

Reference: 404/30

3-blade-set 1600 mm

Specification 3-blade-set length: 725 mm rotor disc: 1600 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 175 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/39

4-blade-set 1680 mm

Specification 4-blade-set length: 765 mm rotor disc: 1680 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 185 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 418

2-blade-set 1630 mm

Specification 2-blade-set length: 725 mm rotor disc: 1630 mm blade root: 14 mm 1-hole blade chord: 62 mm profile thickness: 8 mm weight: ca. 220 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 415/1

2-blade-set 2160 mm

Specification 2-blade-set length: 950 mm rotor disc: 2160 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 400 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 419

2-blade-set 1810 mm

Specification 2-blade-set length: 815 mm rotor disc: 1810 mm blade root: 14 mm 1-hole blade chord: 72 mm profile thickness: 9 mm weight: ca. 260 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 417

2-blade-set 2500 mm

Specification 2-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 500 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 404/900

5-blade-set 1550 mm

Specification 5-blade-set length: 680 mm rotor disc: 1550 mm blade root: 14 mm 1-hole blade chord: 47 mm profile thickness: 7 mm weight: ca. 150 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 403/2

2-blade-set 1500 mm

Specification2-blade-setlength: 660 mmrotor disc: 1500 mmblade root: 14 mm 1-holeblade chord: 65 mmprofile thickness: 9.5 mmweight: ca. 180 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: symmetric l.h.r.

Reference: 413/4

3-blade-set 2300 mm

Specification 3-blade-set length: 1015 mm rotor disc: 2300 mm blade root: 18 mm 1-hole blade chord: 64 mm profile thickness: 9 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 415/5

2-blade-set 2160 mm Alu

Specification 2-blade-set length: 950 mm rotor disc: 2160 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 480 g material: alumninium symmetry: reflex l.h.r.

Reference: 404/21

4-blade-set 1500 mm

Specification 4-blade-set length: 675 mm rotor disc: 1500 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 165 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/31

4-blade-set 1600 mm

Specification4-blade-setlength: 725 mmrotor disc: 1600 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 175 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Reference: 417/50

2-blade-set 2500 mm

Specification 2-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 570 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 404/55

4-blade-set 1900 mm, metal

Multi-blade system, rotor disc 1900 mm Ø Specification 14.0 mm blade root 855 mm long 65.0 mm blade chord 268 g approx. 6.0 mm profile thickness metal, reflex 5.0 mm Ø bore for blade retaining screw
