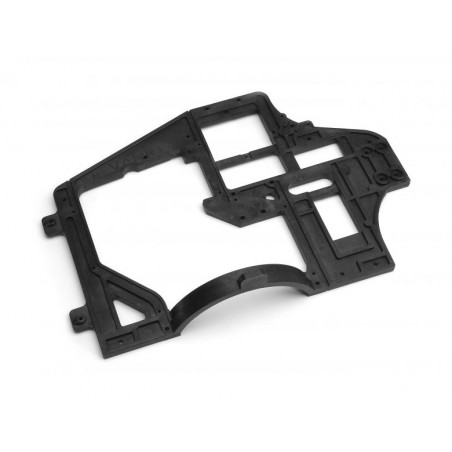

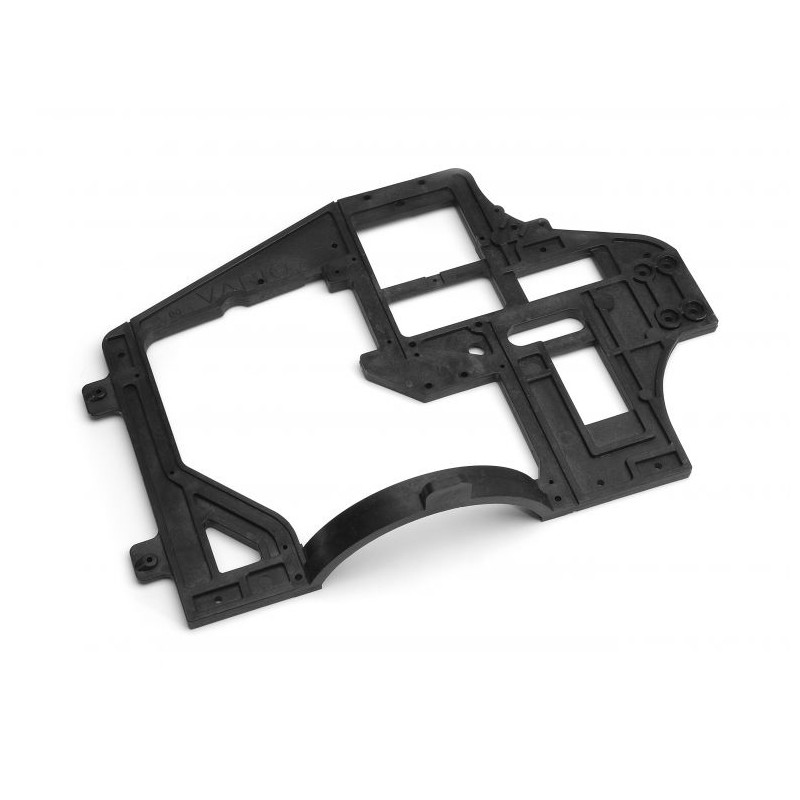

Marco lateral izquierdo SkyFox

Référence: 44/52

Couronne 52 dents

Gear 52-tooth GRP The illustration shows a symbol with the number of teeth of the main gear. The number next to the back slash shows the number of teeth for the appropriate clutch and the resulting gear ratio.

Référence: 44/70

Couronne 65 dents

Gear 65-tooth Delrin

Référence: 871/102

Main gear, 102 teeth

Not available

Référence: 251/200

Kit for lowering the tail output, X-Treme

When the X-Treme mechanics are mounted in certail fuselage such as Agusta, UH-1D or Dauphin, the tail output needs to be lower. This kit lowers the tail output.

Référence: 4/30

90° Nippel mit Zollgewinde

Référence: 833/44

Toothed belt pulley 55-tooth 3M

Toothed belt pulley 55-tooth.

Référence: 44/58

Couronne 52 dents

The combination of 52 : 32 teeth is used for the Sky Fox Boxer model, driven by a 4-stroke boxer motor with 2 x 13.26 cc capacity. 2-stroke glow plug engines (which are fitting our models because of performance and dimensions), don't achieve a satisfying result with this gear ratio.The illustration shows a symbol with the number of teeth of the main gear....

Référence: 4/7

Mechanics mount, X-Treme

Not available

Référence: 41/25

Pinion shaft 16.5 mm - for AR

The pinion shaft (shaft and integral spur gear) is one link in the transmission which transfers the engine's power to the main rotor.Pinion shaft with 16.5 mm gear depthsolely for the use with the freewheel bell Ord.No. 36/40or with the hub bell Ord.No. 36/45The length of both pinion shafts is ideal for the optional installation of a driven tail rotor for...

Référence: 870/50

Front vertical frame, X-Treme

Not available

Référence: 37/10

Gearbox housing incl cover

Even though the main gearbox is placed in the centre of the mechanics it is easily accessible for maintenance. For visual checks of gear meshing clearance, and for greasing the main gearbox it is provided with a gearbox cover.

Référence: 37/11

Gearbox cover

Gearbox cover for gearbox housing Ord.No. 37/10, alone.

Référence: 870/2

RC frame, GFK, for X-Treme

Not available

Référence: 44/45

Couronne 58 dents

Gear 58-tooth Delrin The illustration shows a symbol with the number of teeth of the main gear. The number next to the back slash shows the number of teeth for the appropriate clutch and the resulting gear ratio.

Référence: 1006/10

Main gear box

The main gearbox is responsible for driving the main and tail rotors. To complete the main gearbox you will need to select a gear with the appropriate number of teeth to match your clutch, and also a gearbox connection which mates with your existing tail rotor drive system.Main gearbox, kit-form. The pinion shaft 41/25 supplied is only suitable for use...

Référence: 1006/9

Main gear box with freewheel

If you require a driven tail rotor for auto-rotation, the main gear hub must be fitted with a freewheel; the freewheel on the main rotor shaft then needs to be replaced by a fixed hub mounted on the main rotor shaft.Main gearbox incl. freewheel for driven tail rotor for auto-rotation landings; kit-form. The pinion shaft 41/25 supplied is only suitable for...
