Ninguna marca
Referencia: 92/91
Brida rodamientos autolubricantes 6 x 10 x 3 mm

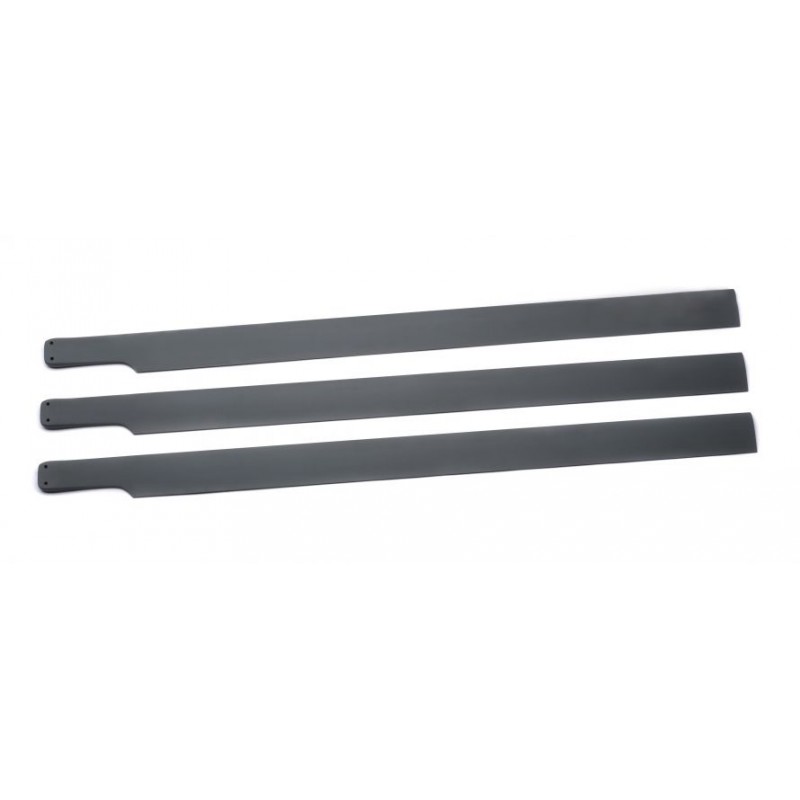

3 palas establecido 1600 mm
Política de seguridad
Política de envío
Política de devolución
3 palas establecido 1600 mm
No hay reseñas de clientes en este momento.
Reference: 404/60
Specification 6-blade-set length: 890 mm rotor disc: 2000 mm blade root: 14 mm 1-hole blade chord: 47 mm profile thickness: 7 mm weight: ca. 250 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.
Reference: F404/42
Multi-blade system, rotor disc 1680 mm Ø Specification 14.0 mm twin-blade bolt 765 mm long 53.0 mm blade chord 185 g approx. 6.8 mm profile thickness GRP, reflex 5-blade set
Reference: 404/28
Specification 3-blade-set length: 725 mm rotor disc: 1600 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 175 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.
Reference: 404/39
Specification 4-blade-set length: 765 mm rotor disc: 1680 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 185 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.
Reference: 404/19
Specification3-blade-setlength: 675 mmrotor disc: 1500 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 165 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex r.h.r.
Reference: 417/2
Specification 3-blade-set length: 990 mm rotor disc: 2300 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 420 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.
Reference: 404/40
Specification3-blade-setlength: 765 mmrotor disc: 1680 mmblade root: 14 mm 2-holeblade chord: 53.0 mmprofile thickness: 6.8 mmweight: ca. 185 gmaterial: CFKShark Skin finish: anthracite mattsymmetry: reflex, l.h.r.
Reference: 404/57
Specification 5-blade-set length: 870 mm rotor disc: 1930 mm blade root: 14 mm 1-hole drilling: ø 5 mm blade chord: 44 mm profile thickness: 7 mm weight: ca. 200 g material: CFK Shark Skin finish: anthracite matt symmetry: symmetric (l.h.r. or r.h.r. possible)
Reference: 417/350
Specification 3-blade-set length: 1120 mm rotor disc: 2560 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 7.5 mm weight: ca. 570 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.
Reference: 404/31
Specification4-blade-setlength: 725 mmrotor disc: 1600 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 175 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.
Reference: F404/32
Multi-blade system, rotor disc 1600 mm ØSpecification 14.0 mm twin-blade bolt725 mm long53.0 mm blade chord170 g approx.6.8 mm profile thicknessGRP, reflex5-blade set
Reference: 404/20
Specification3-blade-setlength: 675 mmrotor disc: 1500 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 165 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.
Reference: 404/41
Specification4-blade-setlength: 765 mmrotor disc: 1680 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 185 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.
Reference: 414/4
Specification 4-blade-set length: 915 mm rotor disc: 2100 mm blade root: 18 mm 1-hole blade chord: 65 mm profile thickness: 9 mm weight: ca. 420 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.
Reference: 413/2
Specification 3-blade-set length: 965 mm rotor disc: 2200 mm blade root: 18 mm 1-hole blade chord: 65 mm profile thickness: 9 mm weight: ca. 450 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.
Reference: 413/3
Specification 3-blade-set length: 1015 mm rotor disc: 2300 mm blade root: 18 mm 1-hole blade chord: 65 mm profile thickness: 9 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.
3 palas establecido 1600 mm
