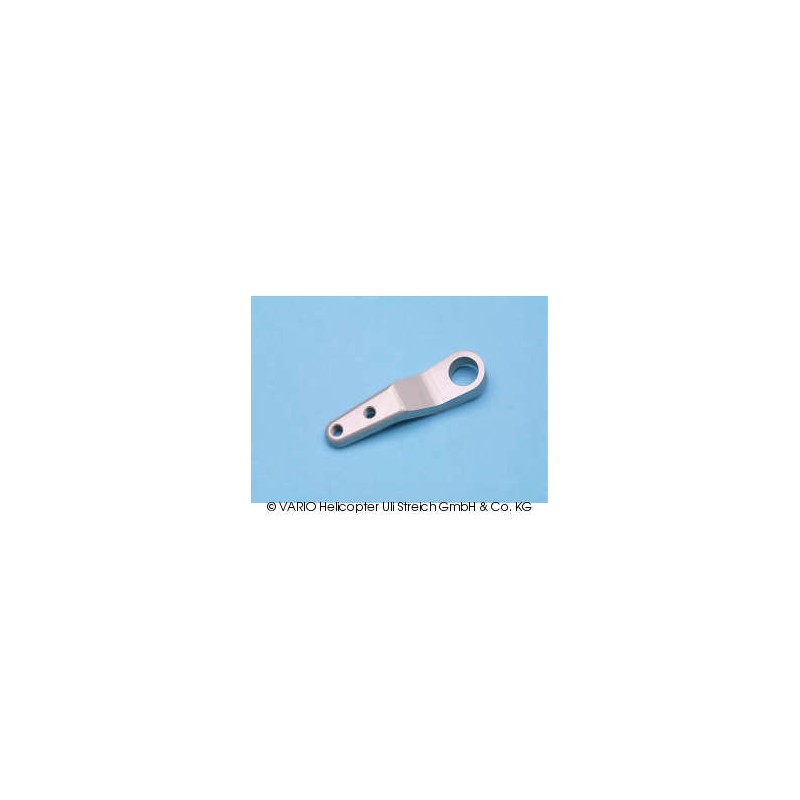

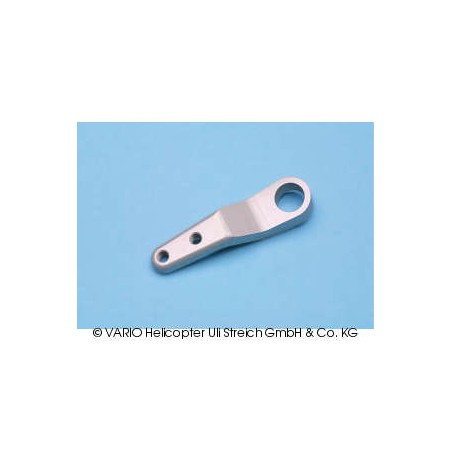

Bellcrank

Riferimento: 1005/8

Kit de conversión varillaje directo para JetRanger XL eléctrico

Riferimento: 71/30

Compensatore di passo per 10 mm

Pitch compensator, complete, for 10 mm ∅ main shaft, centre piece aluminium

Riferimento: 79/13

Flybar stainless steel 4 x 560 mm

The length of the flybar itself also plays an important role in the model's flight characteristics: the longer the flybar, the smoother the hover. A longer flybar increases the control deflections. 450 mm length is considered normal, while 510 mm provides more docile handling.

Riferimento: 832/72

Aluminium centre piece, 12 mm

Aluminium centre piece for rotor head 722/72.

Riferimento: 74/6

O-ring 2 x 6 mm soft

O-ring 2 x 6 mm soft Content of the package: 8 piecesTip: O-rings always slide with a drop of silicone oil onto the shaft.

Riferimento: 72/50

Electro rotor head centre piece

Electro rotor head centre piece, alu.

Riferimento: 703/31

3-blade centre piece, 10 mm

Item to a multi-blade rotor head for Ø 10 mm shaft; see Ord.No. 703/30, 704/30 and 705/30.

Riferimento: 73/15

Albero porta pale 8 x 115,9 mm

 Thrust bearing shaft8 Ø x 115.9 mm

Riferimento: 72/42

CFRP plates for aluminium hub

This rotor head hub with its bonded-in carbon fibre plates is a real head-turner. The plates are simply glued into the existing recesses on both sides. We recommend silicone rubber, Ord.No. 10/11, as adhesive.CFRP plates for aluminium hub matching Ord.No. 832/72pack quantity: 2 plates

Riferimento: 480/53

Co-rotating dome coverage-set

You can fit to your Chinook heads a plate each that covers the dome and spins with the rotor head rpm. A pretty detail, that also can be found on the original Chinook helicopters. The plates / dome covers are mounted on the clamp rings of the main shafts.Pack of 2 plates incl. mounting material

Riferimento: 703/45

Rotor head linkage for Alouette III

This rotor head linkage is essential for the correct operation of the rotor head of the Alouette III due to its heavy take-off weight.

Riferimento: 78/41

Mixer lever cranked

Mixer lever, content of the package 1 piece.Additionial accessories for the use of mixer levers are either two flanged ballraces or two flanged bushes from Delrin as a low cost alternative. The screwing on the blade holder arm complies with the kind of hole, i.e. it depends on the through hole or on the blind hole. Please note for choosing the screws:...

Riferimento: 68/19

Bearing pin

Bearing pin for swashplate driver 68/20. Content of the package: 1 piece.

Riferimento: 68/22

Aluminium side frames

Aluminium side frames for swashplate driver 68/20 and 68/50. Content of the package: 2 pieces

Riferimento: 71/4

Corpo centrale, compensatore di passo

Pitch mixer centre piece, aluminium, 10 mm ∅

Riferimento: 80/10

Ponte compensatore di passo

The control bridge actuates the flybar. The servos pass the control commands to the swashplate. The collective pitch compensator connected to the swashplate transfers the movement to the control bridge via the angled pushrods. The flybar accepts the control commands and passes them on to the blade holders and the rotor disc.Control bridge, GRP, for 4 mm ∅...
