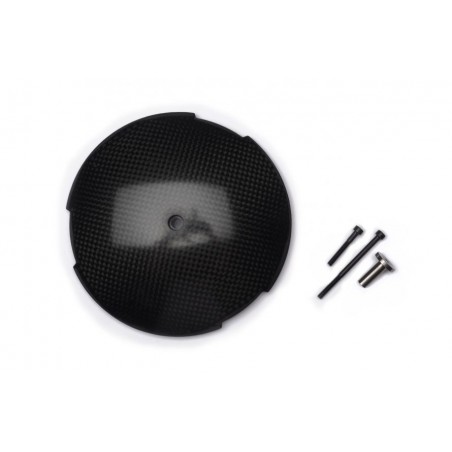

Rotor head cover for 3-blade head

Riferimento: 703/72

Eje de rodamiento de cuchillas para cabezal de 3 cuchillas

Riferimento: 73/10

Albero porta pale 8 x 110 mm

 Thrust bearing shaft8 Ø x 110 mm

Riferimento: 74/10

Anello 3 x 7 mm. duro

O-ring 3 x 7 mm hard Content of the package: 4 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Riferimento: 832/66

Ball-collet with double ball

The use of ball-collets makes it possible to attach double ball-links to the flybar; this automatically sets the correct rocker spacing. The double-ball on these ball-collets also provides an adjustment facility for the VR-22 rotor head, as the double ball-link can always be set vertical by connecting it to the inside or outside ball - provided that the...

Riferimento: 76/16

GRP blade holder, 5 mm ∅ hole

As demands on helicopters continue to rise, so stronger blade holders are required. In this case a 14 mm blade holder is combined with a 5 mm Ø hole for blade retention, i.e. the matching blade holder screws and self-locking nuts are M5 in size.GRP blade holder with long linkage armfor two-blade rotor heads

Riferimento: 73/15

Albero porta pale 8 x 115,9 mm

 Thrust bearing shaft8 Ø x 115.9 mm

Riferimento: 74/16

O-ring 2 x 12 mm soft

O-ring 2 x 12 mm soft Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Riferimento: 74/18

O-ring 2 x 19 mm soft

O-ring 2 x 19 mm soft Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Riferimento: 480/53

Co-rotating dome coverage-set

You can fit to your Chinook heads a plate each that covers the dome and spins with the rotor head rpm. A pretty detail, that also can be found on the original Chinook helicopters. The plates / dome covers are mounted on the clamp rings of the main shafts.Pack of 2 plates incl. mounting material

Riferimento: 71/30

Compensatore di passo per 10 mm

Pitch compensator, complete, for 10 mm ∅ main shaft, centre piece aluminium

Riferimento: 832/87

90 degree link

A 90° twisted double ball-link connect the mixer lever to the ball collet on the flybar, suitable for the rotor head 722/72.Content of the package: 2 pieces

Riferimento: 722/71

Collective pitch compensator 12 mm

Pitch compensator, complete, for 12 mm Ø main shaft, centre piece aluminium.For use with the rotor head Ord.No. 722/72.

Riferimento: 87/12

Doble bola-link para Delta rotor

Riferimento: 80/20

Control bridge 2-part metal, 4 mm

Control bridge 2-part metal, for 4 mm Ø flybar.

Riferimento: 76/20

Blade holder set, aluminium

On all 2-blade rotor heads up to 1800 mm rotor disc different blade holders can be mounted.Blade holder set, for one blade holder

Riferimento: 832/72

Aluminium centre piece, 12 mm

Aluminium centre piece for rotor head 722/72.
