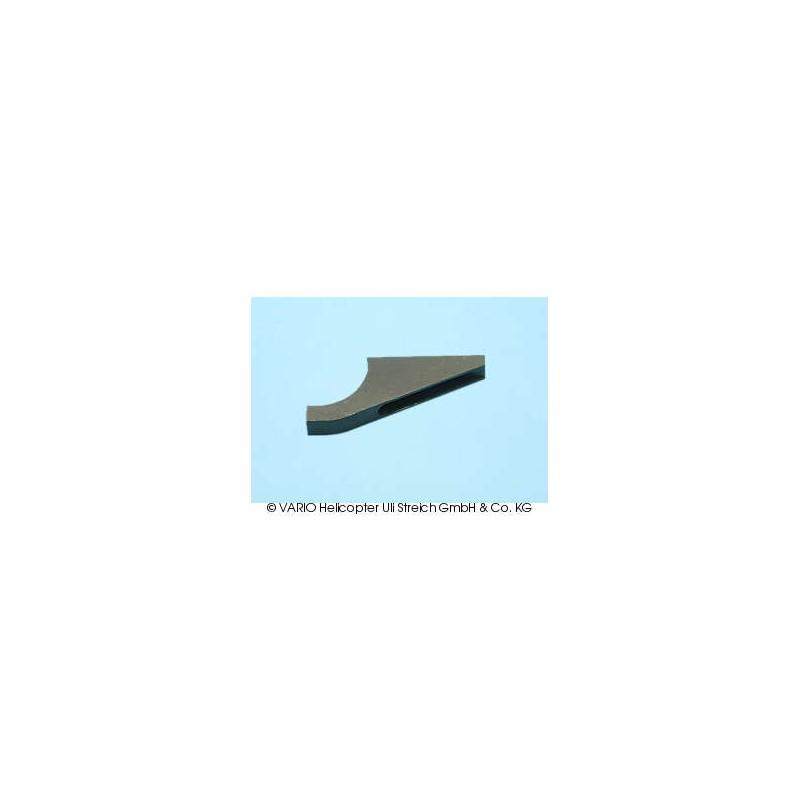

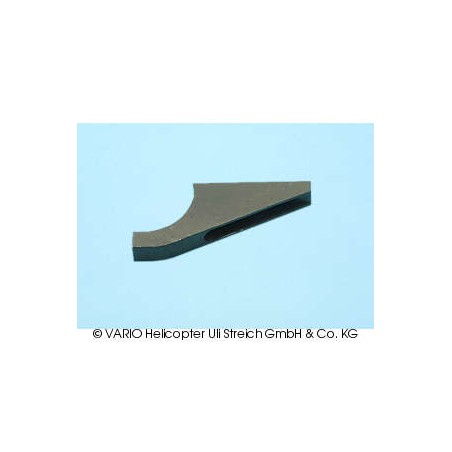

Bras porte-pales, alu

Reference: 832/77

Spacer washer 6.0 x 21.8 x 4.0 mm

Spacer washer for rotor headContent of the package: 2 pieces

Reference: 703/72

Eje de rodamiento de cuchillas para cabezal de 3 cuchillas

Reference: 702/91

Rocker for Bell 47 rotor head, silver

Not available

Reference: 72/4

Rotor brake, GRP

When you have landed and stopped the engine, the rotor head continues spinning for quite some time until it stops by itself. A rotor brake shortens the time you have to wait. Using light pressure with the flat of your hand on the domed face of the rotor brake you can stop the rotor in a few moments.Please note: stay in safe distance away from the turning...

Reference: 702/90

Aluminium centre piece

Aluminium centre piece for 12 mm Ø main shaft

Reference: 86/10

Ball collet 5 mm

Ball collets provide the fixation of double ball-links on the flybar, in order to settle the essential distance to the rocker.Ball collet 5 mm Ø, pack of 2, chrome-plated.

Reference: 702/96

Inertia weights

set of 2

Reference: 707/2

Rotor head cover for 4-blade head

Rotor head cover for 4-blade head incl. screw.Laminated of carbonapprox. 120 mm ∅, 25 mm high

Reference: 74/20

O-ring 3 x 11 mm, for CSS rotor head

O-ring 3 x 11 mm for CSS rotor head Content of the package: 2 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 702/76

GRP blade holder, 22 mm blade throat

This blade holder was specially developed for the large Bell 47 G III with a rotor diameter of 2.36 m. It has a 22 mm blade throat and a 6 mm Ø bore for the retaining screw, i.e. the matching blade holder screws and self-locking nuts are M6 in size.

Reference: 703/33

3-blade centre piece 12 mm

Component part for a multi-blade rotor head for 12 mm Ø main shaft; see Ord.No. 703/32, 704/32 resp. 705/32.

Reference: 832/66

Ball-collet with double ball

The use of ball-collets makes it possible to attach double ball-links to the flybar; this automatically sets the correct rocker spacing. The double-ball on these ball-collets also provides an adjustment facility for the VR-22 rotor head, as the double ball-link can always be set vertical by connecting it to the inside or outside ball - provided that the...

Reference: 74/19

O-ring 1.5 x 19 mm soft

O-ring 1.5 x 19 mm soft Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 87/4

Double ball-link, 90°

A 90° twisted double ball-link connect the mixer lever to the ball collet on the flybar. Content of the package: 2 pieces

Reference: 91/60

Paddles

 Paddles1 pairapprox. 29 g eachfor 4 mm Ø flybar

Reference: 87/15

Double ball-link for rotor head

 Double ball-linkpack of 2
