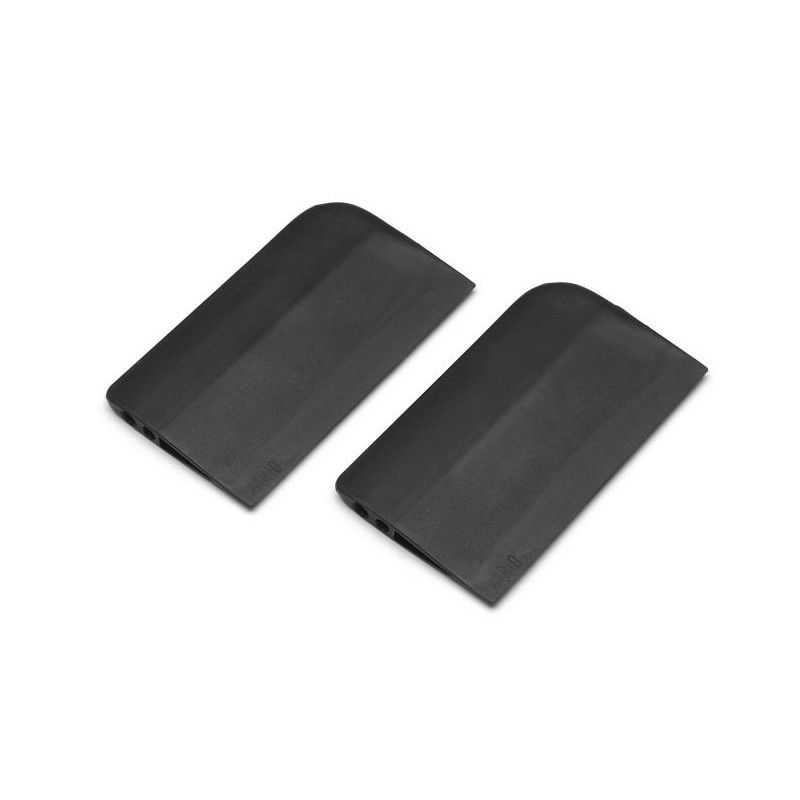

Palettes

Reference: 76/10

Blade holder, aluminium

Blade holder, aluminium, alone.

Reference: 703/41

La palanca acodada, Alu

Reference: 71/20

Collective pitch compensator 10 mm ∅

Pitch compensator, complete, for 10 mm ∅ main shaft, centre piece GRP

Reference: 54/13

Clamp ring pitch compensator 10 mm

On longer rotor shafts the clamp ring for the pitch compensator sits underneath of the centre piece directly on the rotor shaft.Clamp ring for pitch compensator 10 mm Ø, length of the pin 30 mm.

Reference: 82/54

Stabilizer rods 4 x 120 mm

Stabilizer rods 4 x 120 mm Content of the package: 2 pieces

Reference: 480/54

Anillo de sujeción plateado con 3 orificios

Reference: 1005/6

Conversion set for Delta head

In the world of full-size helicopters the Delta effect is universally acknowledged. For model helicopter rotors we have emulated the effect as closely as possible.As soon as a rotor blade is pushed out of its path by some external influence (thermal, down draught etc.) the opposite blade counters the movement and thereby subdues the rotor disc.Conversion...

Reference: 72/3

Rotor brake, GRP, red

When you have landed and stopped the engine, the rotor head continues spinning for quite some time until it stops by itself. A rotor brake shortens the time you have to wait. Using light pressure with the flat of your hand on the domed face of the rotor brake you can stop the rotor in a few moments.Please note: stay in safe distance away from the turning...

Reference: 82/23

Washer for Delta rocker 5 mm

Washer for Delta rocker 5 mm Content of the package: 2 pieces

Reference: 704/31

4-blade centre piece, 10 mm

Item to a multi-blade rotor head for Ø 10 mm shaft; see Ord.No. 703/30, 704/30 and 705/30.

Reference: 72/18

Rotor head centre piece, rigid

Aluminium centre piece, rigid, for 10 mm main shaft

Reference: 80/10

Control bridge with metal balls

The control bridge actuates the flybar. The servos pass the control commands to the swashplate. The collective pitch compensator connected to the swashplate transfers the movement to the control bridge via the angled pushrods. The flybar accepts the control commands and passes them on to the blade holders and the rotor disc.Control bridge, GRP, for 4 mm ∅...

Reference: 702/90

Aluminium centre piece

Aluminium centre piece for 12 mm Ø main shaft

Reference: 703/31

3-blade centre piece, 10 mm

Item to a multi-blade rotor head for Ø 10 mm shaft; see Ord.No. 703/30, 704/30 and 705/30.

Reference: 86/10

Ball collet 5 mm

Ball collets provide the fixation of double ball-links on the flybar, in order to settle the essential distance to the rocker.Ball collet 5 mm Ø, pack of 2, chrome-plated.

Reference: 71/28

Curved link, with pin

Curved link, with pin
