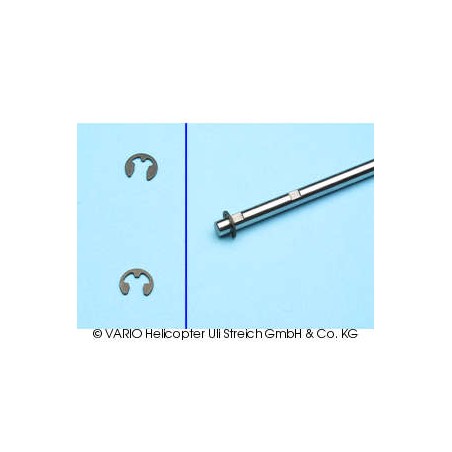

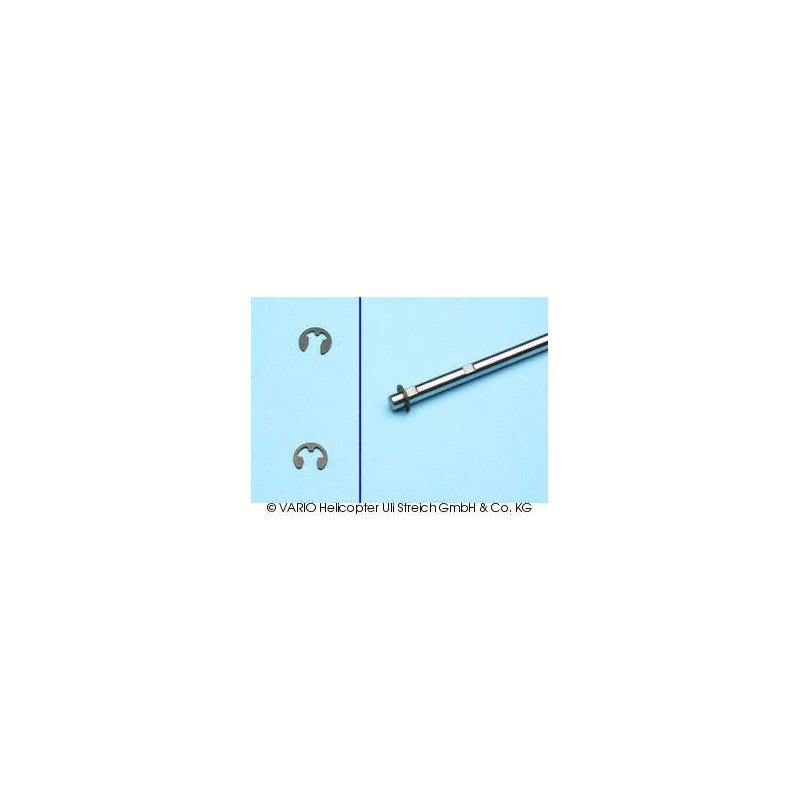

Circlips pour Ø 5 mmOrd.No. 94 C

Référence: 92/81

Heckrotor-Ergänzungsset 3-Blatt

Référence: 92/36

Couvercle pour roulement, AC

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Référence: 99/6

Bague de commande AC

 Control ringfor tail rotor shaft 6 mm ∅

Référence: 103/6

Porte-pales AC

 Tail blade holder3-partfor 6 mm ∅ hub

Référence: 98/15

Douille de commande AC

 Control sleevefor tail rotor shaft 5 mm ∅with nut (left-hand thread!)

Référence: 95/5

Pignon 5 mm, 18 dents

 Bevel gear5 mm18 toothmodule 0.8

Référence: 94/10

Axe AC 5 x 82 mm

 Tail rotor shaft5 x 82 mm

Référence: 92/38

Gehäusedeckel lang

Référence: 7/92

Boîtier d'anticouple

 Content of the package1 piece

Référence: 97/20

Kit palonnier AC

Bellcrank set, with flanged bearings, bush and shim washer

Référence: 94/18

Axe AC 6 x 87 mm

 Tail rotor shaft6 x 87 mm

Référence: 95/7

Pignon 5 mm, 19 dents

  Bevel gear 5 mm 19 tooth module 0.8

Référence: 054

Vis porte-pales anticouple M 3 x 20 mm G12

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Référence: 97/16

Bellcrank aluminum right

Not available

Référence: 92/10

Boîtier AC

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Référence: 94/16

Axe AC 6 x 92 mm

 Tail rotor shaft6 x 92 mm
