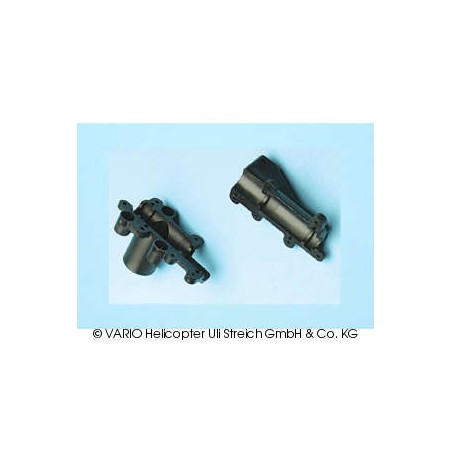

Boîtier AC

Reference: 97/16

Bellcrank aluminum right

Not available

Reference: 95/10

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 5 mm

Not available

Reference: 100/12

Ball links for tail blade grips

 Ball linkspack of 2shortconnection with ball-end bolts

Reference: 92/36

Tail gearbox bearing holder

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Reference: 92/11

Srews set 12-part

 Screw set, 12-part1 x socket-head cap screw M 2 x 8 (90015)5 x socket-head cap screw M 2 x 10 (90020)6 x self-locking nut M 2 (90525)

Reference: 97/10

Bellcrank

Bellcrank, left-hand

Reference: 94/18

Tail rotor shaft 6 x 87 mm

 Tail rotor shaft6 x 87 mm

Reference: 92/94

Fenestron control ring

 Content of the package1 piece

Reference: 99/6

Control ring for tail rotor

 Control ringfor tail rotor shaft 6 mm ∅

Reference: 97/5

Return spring, chromed

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Reference: 94/10

Tail rotor shaft 5 x 82 mm

 Tail rotor shaft5 x 82 mm

Reference: 92/87

3-Blatt Heckrotor T-Rex-Lama

Reference: 95/11

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 6 mm

Not available

Reference: 7/92

Tail rotor housing

 Content of the package1 piece

Reference: 100/7

Pin 2 mm for control bridge

Content of the package: 2 pieces.

Reference: 99/9

Control ring for tail rotor

 Control ringfor tail rotor shaft 5 mm ∅
