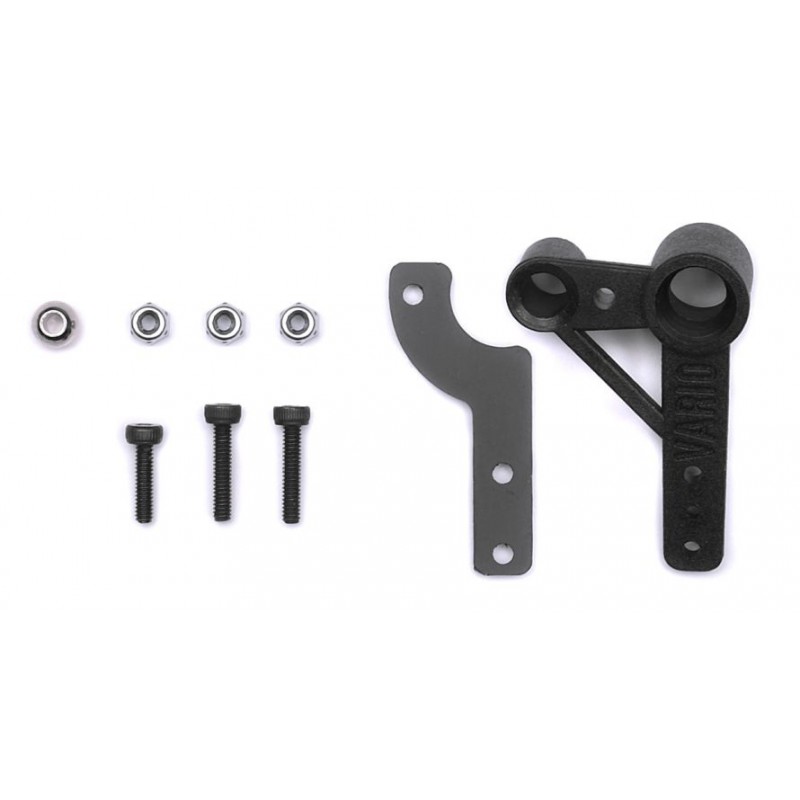

Renvoi d'anticouple, renforcé

Reference: 99/9

Control ring for tail rotor

 Control ringfor tail rotor shaft 5 mm ∅

Reference: 95/7

Bevel gear 5mm, 19 tooth

  Bevel gear 5 mm 19 tooth module 0.8

Reference: 95/11

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 6 mm

Not available

Reference: 98/16

Control sleeve for tail rotor

 Control sleevefor tail rotor shaft 6 mm ∅with nut (left-hand thread!)

Reference: 100/12

Ball links for tail blade grips

 Ball linkspack of 2shortconnection with ball-end bolts

Reference: 103/7

Tail blade Holder Alu

Not available

Reference: 94/18

Tail rotor shaft 6 x 87 mm

 Tail rotor shaft6 x 87 mm

Reference: 103/6

Tail blade holder

 Tail blade holder3-partfor 6 mm ∅ hub

Reference: 94/15

Tail rotor shaft 5 x 84.5 mm

 Tail rotor shaft5 x 82 mm

Reference: 97/5

Return spring, chromed

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Reference: 92/37

Housing cover for tail rotor

Housing cover for aluminium tail rotor with 6 mm shaftaluminium

Reference: 92/10

Tail rotor housing 2-part

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Reference: 100/7

Pin 2 mm for control bridge

Content of the package: 2 pieces.

Reference: 94/19

Heckrotorwelle 6 x 112 mm

Reference: 92/38

Gehäusedeckel lang

Reference: 103/10

Tail blade holder

Tail blade holder for hub with 5 mm.
