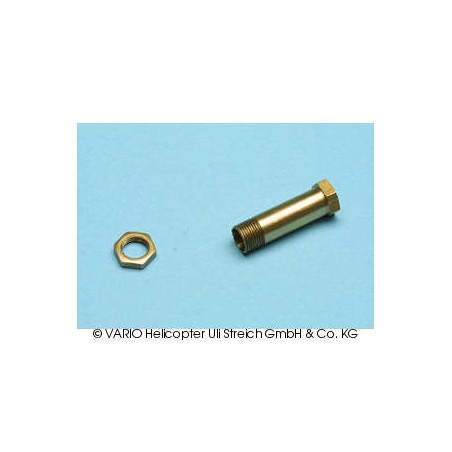

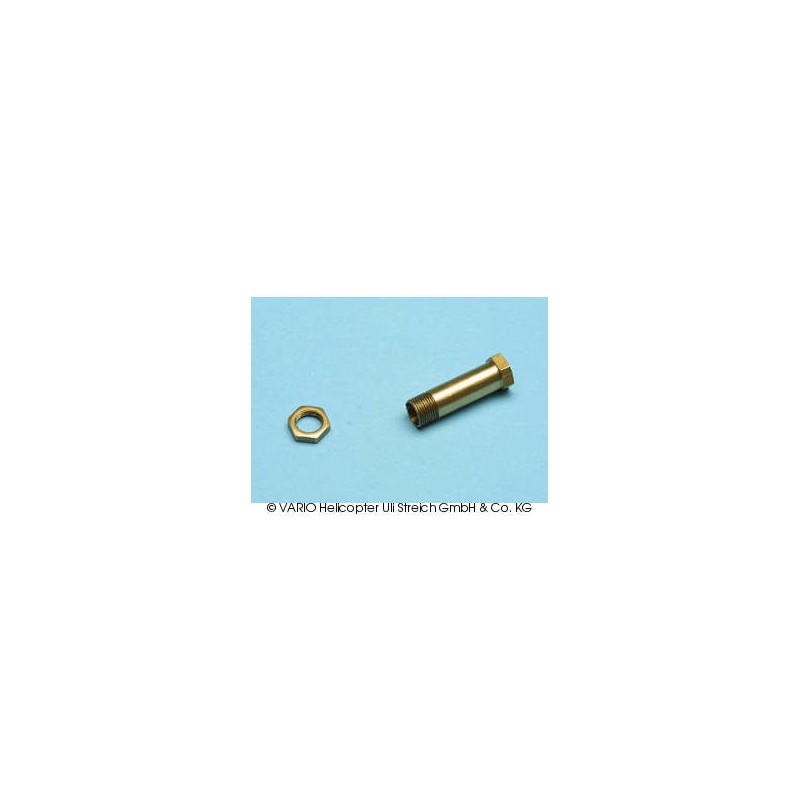

Douille de commande AC

Reference: 98/16

Control sleeve for tail rotor

 Control sleevefor tail rotor shaft 6 mm ∅with nut (left-hand thread!)

Reference: 94/18

Tail rotor shaft 6 x 87 mm

 Tail rotor shaft6 x 87 mm

Reference: 054

Blade holder bolts M 3 x 20 mm G12 for tail rotor

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Reference: 95/7

Bevel gear 5mm, 19 tooth

  Bevel gear 5 mm 19 tooth module 0.8

Reference: 95/20

Bevel gear set, speed up gearing

Bevel gear set, speed up gearing for the tail rotor of the Hughes 500, Ord.No. 9040, complete as illustrated.

Reference: 92/37

Housing cover for tail rotor

Housing cover for aluminium tail rotor with 6 mm shaftaluminium

Reference: 99/6

Control ring for tail rotor

 Control ringfor tail rotor shaft 6 mm ∅

Reference: 94/16

Tail rotor shaft 6 x 92 mm

 Tail rotor shaft6 x 92 mm

Reference: 97/30

Bellcrank, right-hand

Bellcrank, right-hand

Reference: 34/5

Tail rotor pitch gauge

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Reference: 97/20

Bellcrank set

Bellcrank set, with flanged bearings, bush and shim washer

Reference: 92/94

Fenestron control ring

 Content of the package1 piece

Reference: 92/11

Srews set 12-part

 Screw set, 12-part1 x socket-head cap screw M 2 x 8 (90015)5 x socket-head cap screw M 2 x 10 (90020)6 x self-locking nut M 2 (90525)

Reference: 92/39

Gehäuseverlängerung

Reference: 95/10

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 5 mm

Not available

Reference: 94/19

Heckrotorwelle 6 x 112 mm
