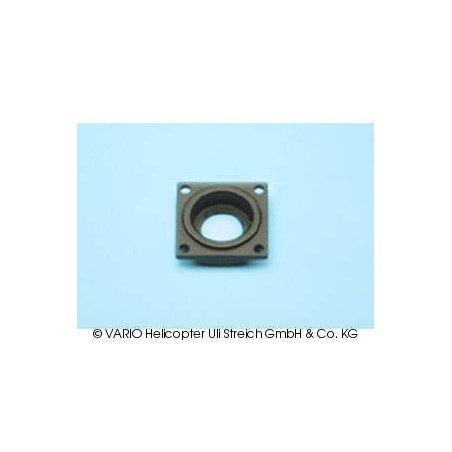

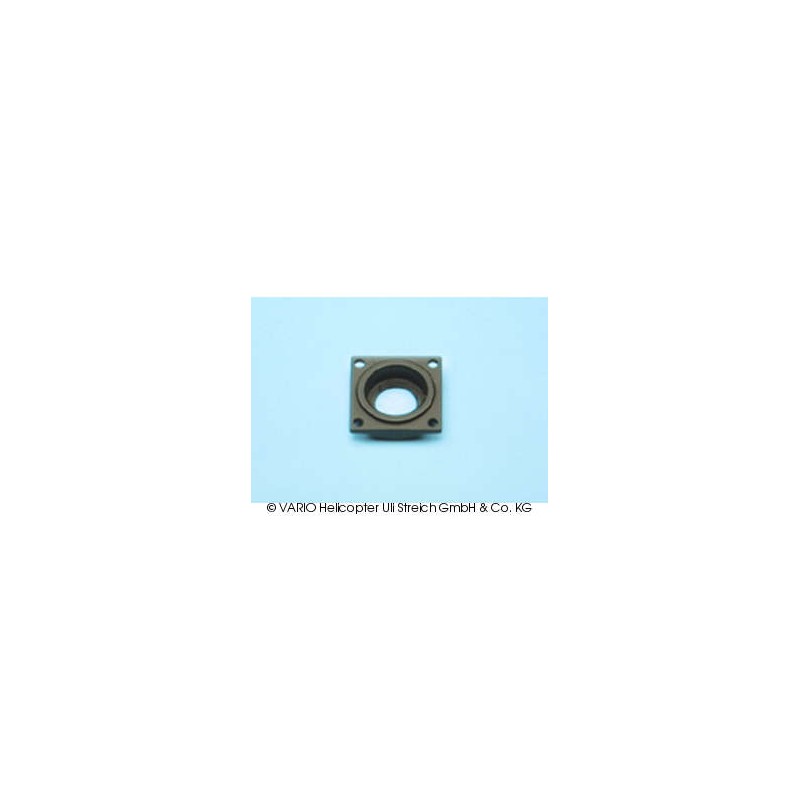

Couvercle pour roulement, AC

Riferimento: 92/10

Carter rotore di coda

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Riferimento: 99/6

Distanziale rotore coda

 Control ringfor tail rotor shaft 6 mm ∅

Riferimento: 95/10

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 5 mm

Not available

Riferimento: 92/82

Heckrotor-Ergänzungsset 4-Blatt

Riferimento: 92/38

Gehäusedeckel lang

Riferimento: 92/94

Distanziale

 Content of the package1 piece

Riferimento: 97/10

Leva commando rotore coda

Bellcrank, left-hand

Riferimento: 97/13

Heckrotorumlenkhebel rechts verstärkt

Riferimento: 94/15

Albero rotore di coda 5 x 84,5 mm

 Tail rotor shaft5 x 82 mm

Riferimento: 100/12

Comandi snodati per rotore Coda

 Ball linkspack of 2shortconnection with ball-end bolts

Riferimento: 054

Viti a brugola per fissaggio pale coda M3 x 20 G12

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Riferimento: 94/18

Albero ø 6 x 87 mm.

 Tail rotor shaft6 x 87 mm

Riferimento: 94/10

Albero rotore di coda 5 x 82 mm

 Tail rotor shaft5 x 82 mm

Riferimento: 103/20

Set porta pale di coda

Changing from a 2-blade tail rotor to a 3-blade version is quick and affordable if you use our complete blade holder set. The set includes all the components you need, including blade holder, thrust bearing, ballraces, ball-end bolt, screws etc., without 3-blade hub.

Riferimento: 92/87

3-Blatt Heckrotor T-Rex-Lama

Riferimento: 95/20

Ingranaggio-Set per alzare i giri

Bevel gear set, speed up gearing for the tail rotor of the Hughes 500, Ord.No. 9040, complete as illustrated.
