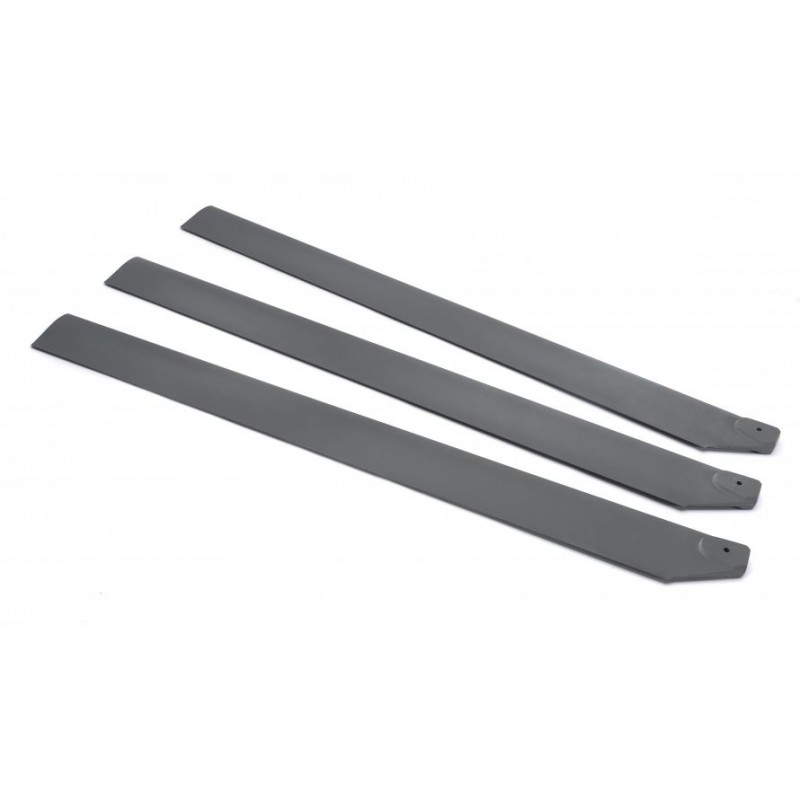

3-Blade-Set 2300 mm Carbon Starwood Lama

Référence: 404/41

Jeu 4-pales 1680 mm

Specification4-blade-setlength: 765 mmrotor disc: 1680 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 185 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Référence: 413/4

Jeu 3-pales 2300 mm

Specification 3-blade-set length: 1015 mm rotor disc: 2300 mm blade root: 18 mm 1-hole blade chord: 64 mm profile thickness: 9 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Référence: 413/50

2-blade-set 2360 mm

Specification 2-blade-set length: 1050 mm rotor disc: 2360 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 530 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 404/19

Jeu 3-pales 1500 mm

Specification3-blade-setlength: 675 mmrotor disc: 1500 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 165 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex r.h.r.

Référence: 403/9

2-blade-set 1580 mm

Specification 2-blade-set length: 700 mm rotor disc: 1580 mm blade root: 14 mm 1-hole blade chord: 59 mm profile thickness: 8 mm weight: ca. 170 g material: CFRP Shark Skin finish: anthracite matt symmetry: symmetric

Référence: 404/22

Jeu 5-pales 1500 mm

Specification5-blade-setlength: 675 mmrotor disc: 1500 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 165 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Référence: 403/33

2-blade-set 1500 mm

Specification2-blade-setlength: 660 mmrotor disc: 1500 mmblade root: 14 mm 1-holeblade chord: 65 mmprofile thickness: 9.5 mmweight: ca. 195 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: symmetric l.h.r.

Référence: F404/42

Jeu 5-pales 1680 mm

Multi-blade system, rotor disc 1680 mm Ø Specification 14.0 mm twin-blade bolt 765 mm long 53.0 mm blade chord 185 g approx. 6.8 mm profile thickness GRP, reflex 5-blade set

Référence: F413/3

Set tripales 2300mm, gris

3-Blade-Set 2300mm, gray, LH. For Gazelle

Référence: 410/3

Juego de 3 cuchillas 1350 mm 1L simétrico

Référence: 404/55

Jeu 4-pales 1900 mm, métal

Multi-blade system, rotor disc 1900 mm Ø Specification 14.0 mm blade root 855 mm long 65.0 mm blade chord 268 g approx. 6.0 mm profile thickness metal, reflex 5.0 mm Ø bore for blade retaining screw

Référence: 404/30

Jeu 3-pales 1600 mm

Specification 3-blade-set length: 725 mm rotor disc: 1600 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 175 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 419

2-blade-set 1810 mm

Specification 2-blade-set length: 815 mm rotor disc: 1810 mm blade root: 14 mm 1-hole blade chord: 72 mm profile thickness: 9 mm weight: ca. 260 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 403

2-blade-set 1550 mm

Specification2-blade-setlength: 660 mmrotor disc: 1550 mmblade root: 14 mm 1-holeblade chord: 62 mmprofile thickness: 7.5 mmweight: ca. 175 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Référence: 404/60

Jeu 6-pales 2000 mm

Specification 6-blade-set length: 890 mm rotor disc: 2000 mm blade root: 14 mm 1-hole blade chord: 47 mm profile thickness: 7 mm weight: ca. 250 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 426

2-blade-set 1680 mm

Specification2-blade-setlength: 750 mmrotor disc:1680 mmblade root: 14 mm 1-holeblade chord: 75 mmprofile thickness: 1 mmweight: ca. 250 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.
