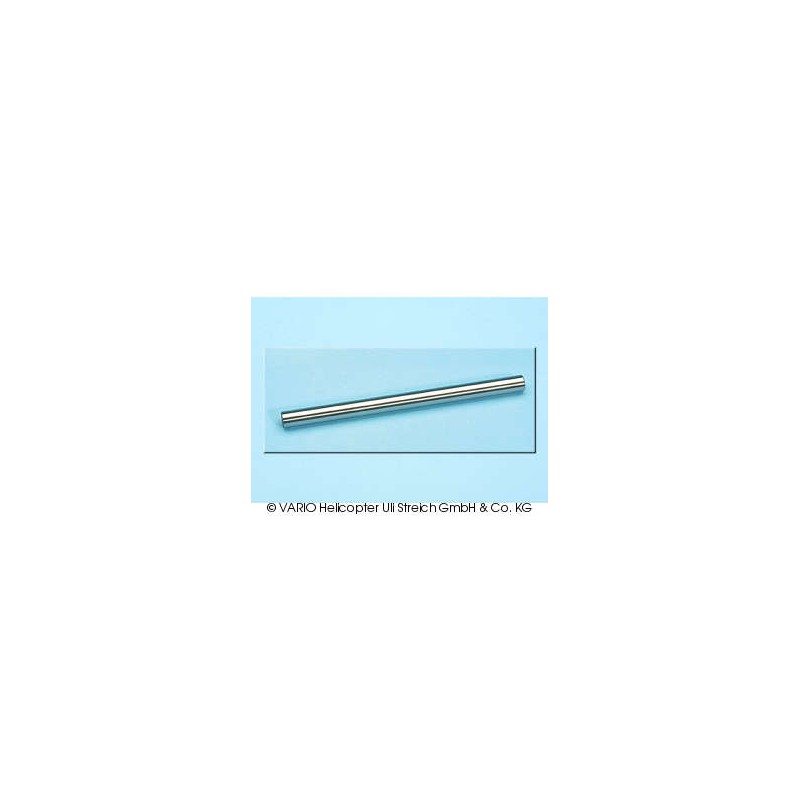

Albero porta pale 8 x 115,9 mm

Riferimento: 703/41

La palanca acodada, Alu

Riferimento: 80/10

Ponte compensatore di passo

The control bridge actuates the flybar. The servos pass the control commands to the swashplate. The collective pitch compensator connected to the swashplate transfers the movement to the control bridge via the angled pushrods. The flybar accepts the control commands and passes them on to the blade holders and the rotor disc.Control bridge, GRP, for 4 mm ∅...

Riferimento: 87/20

Actuating lever

The connection between mixer lever and variable rocker is carried out by an actuating lever, triple ballraced. Content of the package: 2 pieces

Riferimento: 707/2

Rotor head cover for 4-blade head

Rotor head cover for 4-blade head incl. screw.Laminated of carbonapprox. 120 mm ∅, 25 mm high

Riferimento: 79/15

Asta stabilizzatore 4 x 600 mm

The length of the flybar itself also plays an important role in the model's flight characteristics: the longer the flybar, the smoother the hover. A longer flybar increases the control deflections. 450 mm length is considered normal, while 510 mm provides more docile handling.

Riferimento: 86/10

Ball collet 5 mm

Ball collets provide the fixation of double ball-links on the flybar, in order to settle the essential distance to the rocker.Ball collet 5 mm Ø, pack of 2, chrome-plated.

Riferimento: 705/33

5-blade centre piece 12 mm

Component part for a multi-blade rotor head for 12 mm Ø main shaft; see Ord.No. 703/32, 704/32 resp. 705/32.

Riferimento: 832/75

Thrust washer

Thrust washer for rotor head Content of the package: 2 pieces

Riferimento: 10/81

Tubo silicone 5 x 7 x 100 mm

 Silicone sleeve5 x 7 x 100 mmtransparent

Riferimento: 76/16

GRP blade holder, 5 mm ∅ hole

As demands on helicopters continue to rise, so stronger blade holders are required. In this case a 14 mm blade holder is combined with a 5 mm Ø hole for blade retention, i.e. the matching blade holder screws and self-locking nuts are M5 in size.GRP blade holder with long linkage armfor two-blade rotor heads

Riferimento: 87/21

Washer for actuator arm 2.5 x 9 mm

Washer for actuator arm Content of the package: 2 pieces

Riferimento: 71/30

Compensatore di passo per 10 mm

Pitch compensator, complete, for 10 mm ∅ main shaft, centre piece aluminium

Riferimento: 832/66

Ball-collet with double ball

The use of ball-collets makes it possible to attach double ball-links to the flybar; this automatically sets the correct rocker spacing. The double-ball on these ball-collets also provides an adjustment facility for the VR-22 rotor head, as the double ball-link can always be set vertical by connecting it to the inside or outside ball - provided that the...

Riferimento: 82/32

Washer for variable rocker 4 mm

Washer for variable rocker 4 mmContent of the package: 2 pieces

Riferimento: 702/90

Aluminium centre piece

Aluminium centre piece for 12 mm Ø main shaft

Riferimento: 702/92

Rotor head balance weight Bell 47 black

Not available
