Brands

No brand

Reference: 10/90

Canopy latch

Review(s): 0

The canopy retainer set helps to keep your canopies undamaged for a long period. It absorbs movement, such as abrupt shocks in hard landings, and prevents cracks developing in the canopy.Knurled nuts are used to hold the canopy in place, and they do not intent the canopy when tightened.The components of the canopy retainer system are screwed against...

Price 6.20€
More
On sale upon request

Reference: 060

Ball-end bolt 3.5 mm - M 2.0 x 5.0

Review(s): 0

These ball-end bolts offer an optimal connection between a GRP servo output arm and the pushrod to the mechanics. Underneath the output arm you lock the ball-end bolt with an M 2 hexagon nut. For aluminium output arms you use ball-end bolts Ord.No. 060/7 and thread-lock fluid.

Price 13.80€
More
In stock
All best sellers

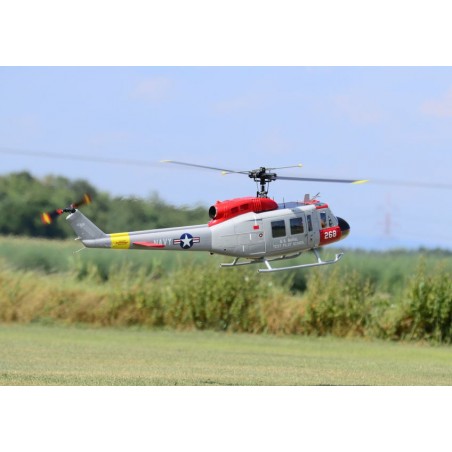

Bell 205 UH-1D 1:6 - Fuselage kit

2060.e
Rating

The "big Bell UH-1D" from VARIO is a 1050 size scale helicopter. You can power this remote-controlled model helicopter with turbine or electric propulsion. Bell Helicopter is the creator of the...

Motorization
1,263.60€
Tax included
Quantity
In stock



Política de seguridad



Política de envío



Política de devolución

Description

The "big Bell UH-1D" from VARIO is a 1050 size scale helicopter. You can power this remote-controlled model helicopter with turbine or electric propulsion. Bell Helicopter is the creator of the man-carrying version.An opening hatch can be installed in the scale position in the extreme nose of the fuselage, and this can be used to conceal facilities such as switches. The accessories for installing the hatch are included in the door fittings set. The tail boom is attached by a central screw-fitting joint; all you have to do is disconnect the tail rotor servo and undo the joint to remove the boom. The mechanical system is supported on a sub-structure consisting of aluminium plates with plastic connecting pieces, which in turn is screwed to the skid landing gear. The 3-litre kerosene tank is located on the bottom of the fuselage below the entry step. The position of the turbine aft of the rotor shaft inevitably requires nose weight for the correct Centre of Gravity, and this means that it is possible to install extensive scale fittings in the cockpit, including pilots, safety belts, landing searchlights etc. We decided on a rotor disc diameter of 2300 mm in order to ensure that this helicopter has good auto-rotation characteristics as well as very high performance. With an all-up weight of 15 - 16 kg.For VARIO's 1050 Huey we recommend a maximum main rotor speed of 853 rpm. Electric drive sets from VARIO are already tuned to this head speed.Select one of the following drive types:

Product Details
2060.e

Data sheet

Scale
1:6
Length
2180 mm
Weight
E: ca. 15,5 kg, T: ca. 16 kg
Width
620 mm
Height
405 mm
Rotor Diameter
2360 mm
Attachments
Download
Reviews

No customer reviews for the moment.

Write your review

Bell 205 UH-1D 1:6 - Fuselage kit

Bell 205 UH-1D 1:6 - Fuselage kit

The "big Bell UH-1D" from VARIO is a 1050 size scale helicopter. You can power this remote-controlled model helicopter with turbine or electric propulsion. Bell Helicopter is the creator of the...

Write your review
You might also like

Reference: 1005/12

Rotor head for Bell 212Ord.No. 1005/12

Review(s): 0

The basic method of operation of the turbine-powered Bell 212's rotor head is the same as that of the Bell 47 G III rotor head. The main difference is that the components have been modified to match the appearance of the Bell 212, and are therefore of different design. For example, a separate swashplate driver is not required, as it is integrated into the...

Price 547.10€
More
On sale upon request

Reference: 1002/78

Electric mechanics (turbine PHT3-3)

Review(s): 0

These mechanics can be used in all fuselages that are designed for the JetCat PHT3-3 or Vario Turbine mechanics Ord.No. 1002/68.You will need to order the Motor pulley gear seperatley to achieve the required rotor rpm....Motor Pulley Ord.No.42 teeth, 850 rpm, 4-blade 2300 mm Ord.No. 500/4144 teeth, 885 rpm, 3-blade 2300 mm Ord.No. 500/4348 teeth, 960 rpm,...

Price 1,533.60€
More
On sale upon request

Reference: 413

2-blade-set 2360 mm

Review(s): 0

Specification 2-blade-set length: 1050 mm rotor disc: 2360 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 450 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Price 273.00€
More
On sale upon request

Reference: 34/32

Tail rotor blades 156 mm, grey

Review(s): 0

Tail rotor blade, rotor disc 390 mm ØSpecification 8.0 mm blade root16.5 g approx.45.5 mm blade chordGRP6.7 mm profile thicknesssymmetrical156 mm longbalanced1 pairThe tail rotor blades are designed exclusively for use with the specified VARIO mechanics in conjunction with the tail rotor 1003/80. The maximum rotational speed of the tail rotor shaft is...

Price 78.20€
More
On sale upon request
16 otros productos en la misma categoría:

Referencia: 1390.e

Kit de Fuselaje Agustapara mecanica electrica y gasolina

Reseña(s): 0

11 piezas del fuselaje GFK -Juego de Ventana Tubo de transmision de acero inoxidable -Tren de aterrizaje retráctil -Diversas piezas pequeñas Escala: 1:07 Longitud: 1970mm Ancho: 450 mm Altura: 560 mm Rotor: 1880mm Motor: Eléctrico o bencina Peso: Aproximadamente 11,6 kg Los Agusta AW 139 es un helicóptero multi-role. Cuenta con tren de aterrizaje...

Precio 1.421,10 €
Más
En venta bajo pedido
