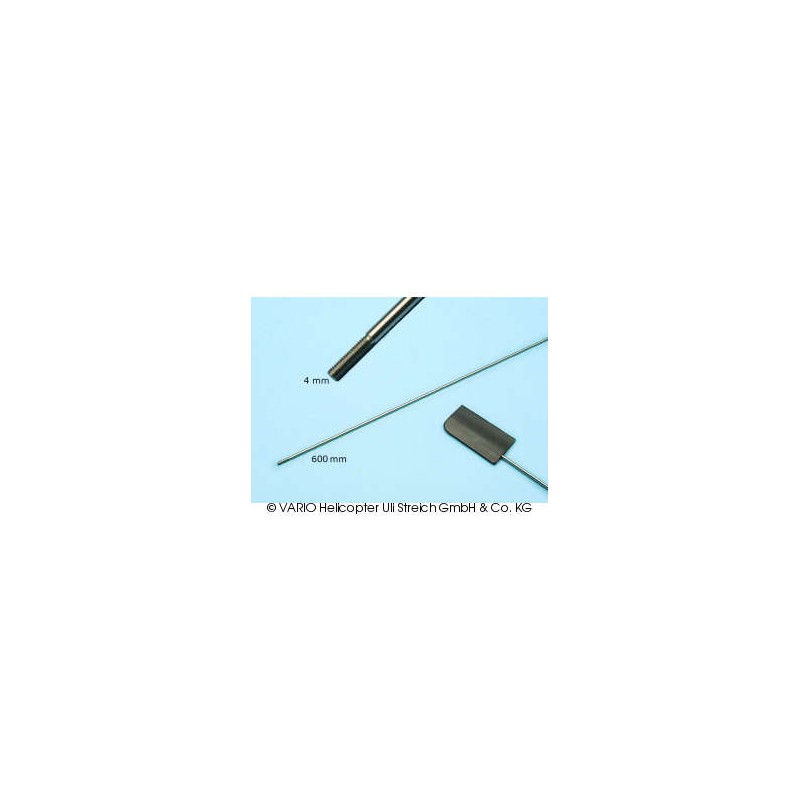

Varilla estabilizadora (acero)4x600mm

Reference: 832/73

Blade pivot shaft 10 x 187 mm

Blade pivot shaft 10 x 187 mm for rotor head 722/72

Reference: 86/5

Ball collet 4 mm, short

Ball collets provide the fixation of double ball-links on the flybar, in order to settle the essential distance to the rocker. Ball collet 4 mm Ø, overall length 19.7 mm, pack of 2, chrome-plated.

Reference: 72/5

Rotor brake, GRP

When you have landed and stopped the engine, the rotor head continues spinning for quite some time until it stops by itself. A rotor brake shortens the time you have to wait. Using light pressure with the flat of your hand on the domed face of the rotor brake you can stop the rotor in a few moments.Please note: stay in safe distance away from the turning...

Reference: 79

Flybar stainless steel 4 x 450 mm

The length of the flybar itself also plays an important role in the model's flight characteristics: the longer the flybar, the smoother the hover. A longer flybar increases the control deflections. 450 mm length is considered normal, while 510 mm provides more docile handling.

Reference: 702/15

15mm 2 blade centre piece

Aluminium centre piece for 15 mm Ø main shaft

Reference: 72/50

Electro rotor head centre piece

Electro rotor head centre piece, alu.

Reference: 76/25

Blade holder, blade grip 18 mm

Not available

Reference: 703/41

La palanca acodada, Alu

Reference: 91/55

Lead for paddles

 Lead for paddlespack of 2approx. 8.5 g each

Reference: 117/3

Spacer washer 10 x 24.6 mm

Spacer washer for rotor headPack of 2

Reference: 117/20

Thrust bearing set complete

The standard version of our mechanics includes ground thrust bearing shafts with a of 8 mm Ø and a length of 110 mm.Thrust bearings absorb the high centrifugal forces exerted by the main rotor blades. The effect of the axial bearings is retained in full when the blade holders rotate.Thrust bearing set, complete as shown.

Reference: 707/2

Rotor head cover for 4-blade head

Rotor head cover for 4-blade head incl. screw.Laminated of carbonapprox. 120 mm ∅, 25 mm high

Reference: 74/3

O-ring 1 x 4 mm soft

content of the package: 8 pieces

Reference: 82/51

Bellcrank

Not available

Reference: 832/87

90 degree link

A 90° twisted double ball-link connect the mixer lever to the ball collet on the flybar, suitable for the rotor head 722/72.Content of the package: 2 pieces

Reference: 702/76

GRP blade holder, 22 mm blade throat

This blade holder was specially developed for the large Bell 47 G III with a rotor diameter of 2.36 m. It has a 22 mm blade throat and a 6 mm Ø bore for the retaining screw, i.e. the matching blade holder screws and self-locking nuts are M6 in size.
