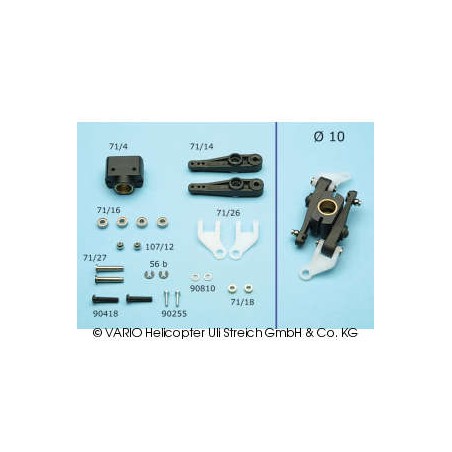

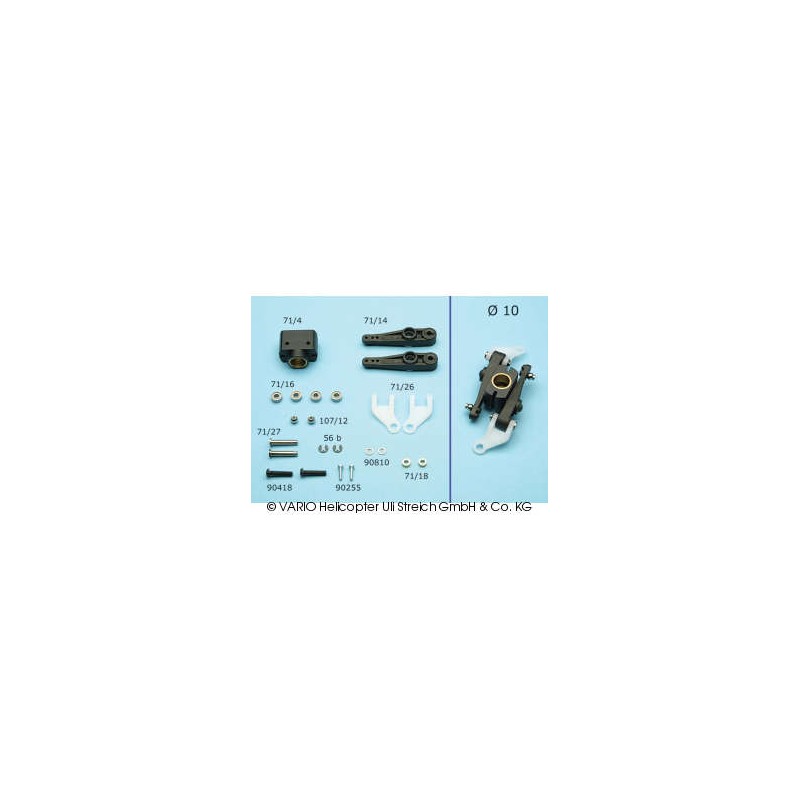

Sistema de paso colectivo 10mm

Riferimento: 71 A

Corpo centrale, compensatore di passo

Centre piece for pitchcompensator, GFK, alone.

Riferimento: 68/19

Bearing pin

Bearing pin for swashplate driver 68/20. Content of the package: 1 piece.

Riferimento: 832/70

Mixer arms, aluminium

Mixer arms, aluminium Content of the package: 2 pieces

Riferimento: 71/20

Compensatore di passo, VTR

Pitch compensator, complete, for 10 mm ∅ main shaft, centre piece GRP

Riferimento: 78/40

Set leva miscelatore

Mixer levers are an essential part of every flybar-controlled rotor head. From the swashplate a pushrod runs to the ballraced mixer arm which is screwed to the blade holder arm. The mixer levers transmit the control movement to the flybar via the double ball-link.Additionial accessories for the use of mixer levers are either two flanged ballraces or two...

Riferimento: 702/95

Spring for rotor head Bell 47

 Content of the package2 pieces

Riferimento: 480/53

Co-rotating dome coverage-set

You can fit to your Chinook heads a plate each that covers the dome and spins with the rotor head rpm. A pretty detail, that also can be found on the original Chinook helicopters. The plates / dome covers are mounted on the clamp rings of the main shafts.Pack of 2 plates incl. mounting material

Riferimento: 480/54

Anillo de sujeción plateado con 3 orificios

Riferimento: 702/96

Inertia weights

set of 2

Riferimento: 832/66

Ball-collet with double ball

The use of ball-collets makes it possible to attach double ball-links to the flybar; this automatically sets the correct rocker spacing. The double-ball on these ball-collets also provides an adjustment facility for the VR-22 rotor head, as the double ball-link can always be set vertical by connecting it to the inside or outside ball - provided that the...

Riferimento: 707

Rotor cap for Multi blade head

The diameter is 83 mm and the construction height from the screw-on surface to the highest point is 13 mm.It is fastened using an M4 x 14 hexagon socket screw (included).

Riferimento: 71/55

Collective pitch compensator 12 mm

Pitch compensator, complete, for 12 mm Ø main shaft, centre piece aluminium

Riferimento: 91/50

Paletti 105 x 60 mm per Ø 4+ 5 mm

Paddles1 pairapprox. 29 g eachfor ∅ 4 mm / 5 mm flybar

Riferimento: 82/9

Aluminium rocker

When you use a speed regulator you put the magnets into the cut-outs of this clamp ring. Clamp ring for speed collection, 10 mm Ø.

Riferimento: 74/4

O-ring 2 x 4 mm soft

O-ring 2 x 4 mm soft Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Riferimento: 832/54

Clamp ring

Clamp ring for rotor head 722/72.
