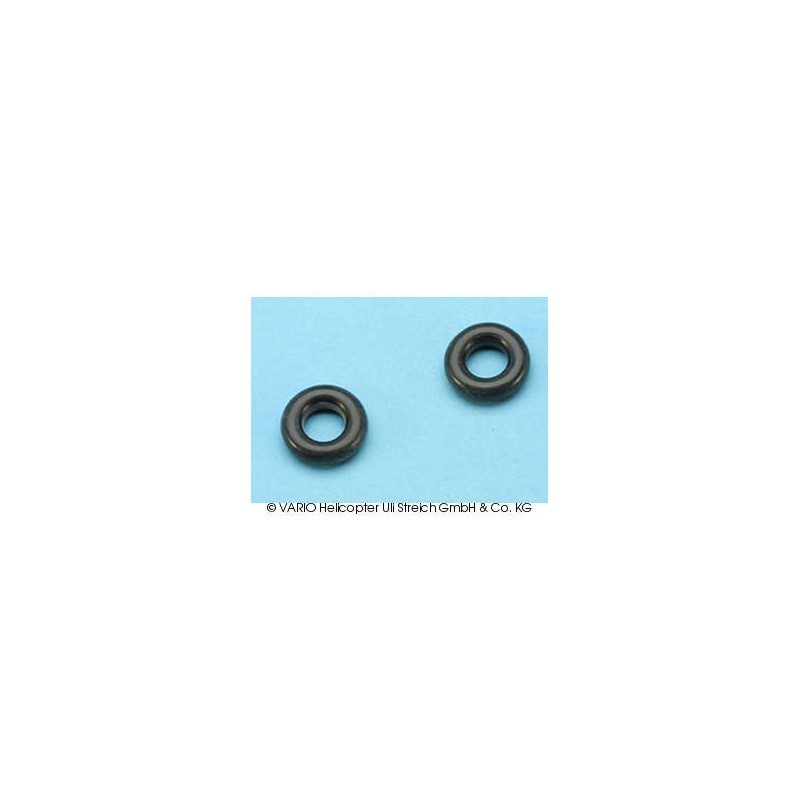

Torica de 5 x 9 mm

Reference: 832/73

Blade pivot shaft 10 x 187 mm

Blade pivot shaft 10 x 187 mm for rotor head 722/72

Reference: 703/45

Rotor head linkage for Alouette III

This rotor head linkage is essential for the correct operation of the rotor head of the Alouette III due to its heavy take-off weight.

Reference: 74/12

O-ring 3 x 12 mm hard

O-ring 3 x 12 mm hard Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 82/50

Rocker, aluminium

Rocker, aluminium, for rotor head 702/75, alone.

Reference: 82/53

Washer 3.5 x 12 x 3 mm, rubber

Washer 3.5 x 12 x 3 mm, rubber Content of the package: 2 pieces

Reference: 54/13

Clamp ring pitch compensator 10 mm

On longer rotor shafts the clamp ring for the pitch compensator sits underneath of the centre piece directly on the rotor shaft.Clamp ring for pitch compensator 10 mm Ø, length of the pin 30 mm.

Reference: 54/16

Clamp ring pitch compensator 17 mm

The 17 mm Ø clamp ring is fitted to the rotor head centre piece, the steel pin slides in the guide slot of the pitch compensator. Rotate the clamp for fine adjustment so that your helicopter flies straight when you apply a pitch-axis command.Clamp ring for pitch compensator 17 mm Ø, length of the pin 30 mm.

Reference: 72/3

Rotor brake, GRP, red

When you have landed and stopped the engine, the rotor head continues spinning for quite some time until it stops by itself. A rotor brake shortens the time you have to wait. Using light pressure with the flat of your hand on the domed face of the rotor brake you can stop the rotor in a few moments.Please note: stay in safe distance away from the turning...

Reference: 78/45

Mixer lever set, aluminium

These mixer levers from aluminium are particularly torsion proof and feature an improved control precision. For individual settings you can change the connection of the linkage (relocate the balls).Flanged bearings 3 x 7 x 3 mm are suitable also, i.e. you use existing ballraces again.Place of installation: all rotor heads which are provided with the...

Reference: 704/39

cabezal de rotor de 4 palas 15 mm

Reference: 71/30

Collective pitch compensator 10 mm

Pitch compensator, complete, for 10 mm ∅ main shaft, centre piece aluminium

Reference: 74/6

O-ring 2 x 6 mm soft

O-ring 2 x 6 mm soft Content of the package: 8 piecesTip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 71/18

Spacer for pitch compensator 2.8 x 5 x 2 mm

 Content of the package2 pieces

Reference: 832/54

Clamp ring

Clamp ring for rotor head 722/72.

Reference: 79/8

Inertia weights for Ø 5 mm flybar

Inertia weights are small "extra brakes". They increase the gyroscopic stability of the flybar and slow down the rotor head's response. For every beginner we recommend these so the responsiveness of the rotor head is reduced. The rotor head becomes more responsive as the inertia weights are moveded inwards (always place equally!). Inertia weights suitable...

Reference: 71 A

Centre piece for pitch compensatorOrd.No. 71 A

Centre piece for pitchcompensator, GFK, alone.
