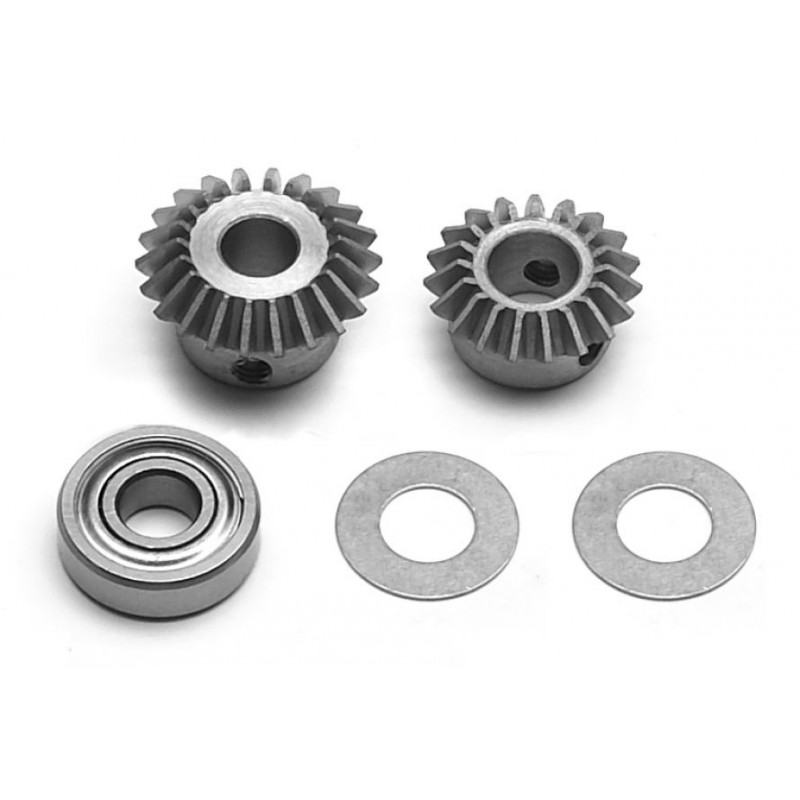

Set de piñones conicos y rodamiento para Hughes 500

Référence: 95/11

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 6 mm

Not available

Référence: 92/81

Heckrotor-Ergänzungsset 3-Blatt

Référence: 97/5

Ressort de rappel AC

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Référence: 98/16

Douille de commande AC

 Control sleevefor tail rotor shaft 6 mm ∅with nut (left-hand thread!)

Référence: 103/7

Porte-pales

Not available

Référence: 92/87

3-Blatt Heckrotor T-Rex-Lama

Référence: 92/36

Couvercle pour roulement, AC

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Référence: 99/6

Bague de commande AC

 Control ringfor tail rotor shaft 6 mm ∅

Référence: 94/10

Axe AC 5 x 82 mm

 Tail rotor shaft5 x 82 mm

Référence: 92/38

Gehäusedeckel lang

Référence: 95/10

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 5 mm

Not available

Référence: 97/30

Palonnier AC, droite

Bellcrank, right-hand

Référence: 95/5

Pignon 5 mm, 18 dents

 Bevel gear5 mm18 toothmodule 0.8

Référence: 34/5

Incidencemètre pour anticouple

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Référence: 94/19

Heckrotorwelle 6 x 112 mm

Référence: 92/37

Couvercle alu pour boîtier AC alu

Housing cover for aluminium tail rotor with 6 mm shaftaluminium
