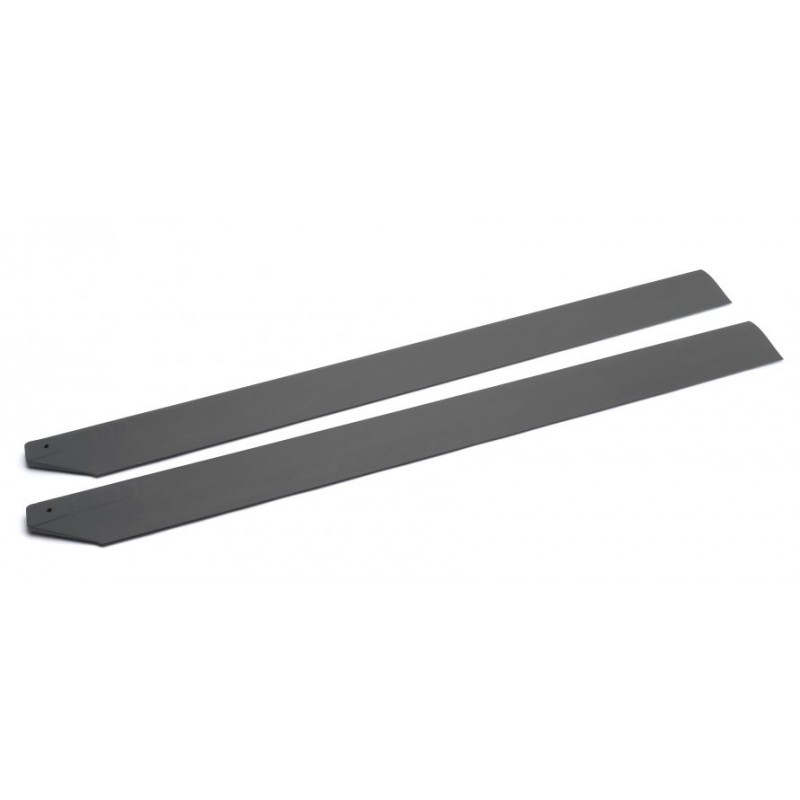

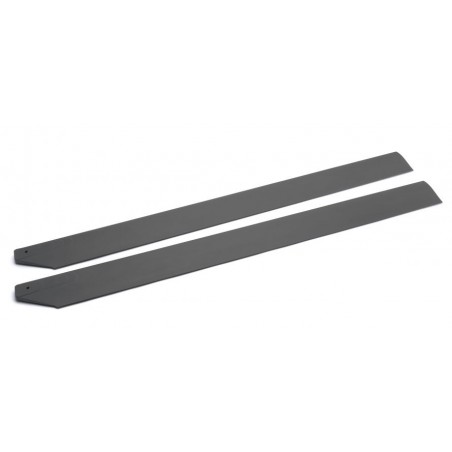

Palas Reflex 1820 mm

Reference: 404/56

4-blade-set 1930 mm Scale Hughes 500

Specification 4-blade-set length: 870 mm rotor disc: 1930 mm blade root: 14 mm 1-hole drilling: ø 5 mm blade chord: 44 mm profile thickness: 7 mm weight: ca. 200 g material: CFK Shark Skin finish: anthracite matt symmetry: symmetric (l.h.r. or r.h.r. possible)

Reference: 404/51

4-blade-set 1880 mm

Specification 4-blade-set length: 865 mm rotor disc: 1880 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 200 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 403/2

2-blade-set 1500 mm

Specification2-blade-setlength: 660 mmrotor disc: 1500 mmblade root: 14 mm 1-holeblade chord: 65 mmprofile thickness: 9.5 mmweight: ca. 180 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: symmetric l.h.r.

Reference: 422

2-blade-set 1780 mm

Specification 2-blade-set length: 800 mm rotor disc: 1780 mm blade root: 14 mm 1-hole blade chord: 68 mm profile thickness: 9 mm weight: ca. 250 g material: CFRP Shark Skin finish: anthracite matt symmetry: symmetric l.h.r.

Reference: 416/3

3-blade-set 2500 mm

Specification 3-blade-set length: 1090 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 1 mm weight: ca. 500 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/52

5-blade-set 1880 mm

Specification 5-blade-set length: 865 mm rotor disc: 1880 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 200 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/900

5-blade-set 1550 mm

Specification 5-blade-set length: 680 mm rotor disc: 1550 mm blade root: 14 mm 1-hole blade chord: 47 mm profile thickness: 7 mm weight: ca. 150 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 417/4

3-blade-set 2300 mm

Specification 3-blade-set length: 990 mm rotor disc: 2300 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 420 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 424

2-blade-set 1930 mm

Specification 2-blade-set length: 875 mm rotor disc: 1930 mm blade root: 14 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 280 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 417/5

2-blade-set 2500 mm Alu

Specification 2-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 570 g material: aluminium symmetry: reflex r.h.r.

Reference: 403/9

2-blade-set 1580 mm

Specification 2-blade-set length: 700 mm rotor disc: 1580 mm blade root: 14 mm 1-hole blade chord: 59 mm profile thickness: 8 mm weight: ca. 170 g material: CFRP Shark Skin finish: anthracite matt symmetry: symmetric

Reference: 404/41

4-blade-set 1680 mm

Specification4-blade-setlength: 765 mmrotor disc: 1680 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 185 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Reference: 403/33

2-blade-set 1500 mm

Specification2-blade-setlength: 660 mmrotor disc: 1500 mmblade root: 14 mm 1-holeblade chord: 65 mmprofile thickness: 9.5 mmweight: ca. 195 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: symmetric l.h.r.

Reference: 416/350

3-blade-set 2560 mm

Specification 3-blade-set length: 1120 mm rotor disc: 2560 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 7.5 mm weight: ca. 570 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/480

2x3-blade-set 1550 mm

Specification 2x3-blade-set length: 675 mm rotor disc: 1550 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 165 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r. + r.h.r.

Reference: 410

3-D de las palas del rotor 1380 mm
