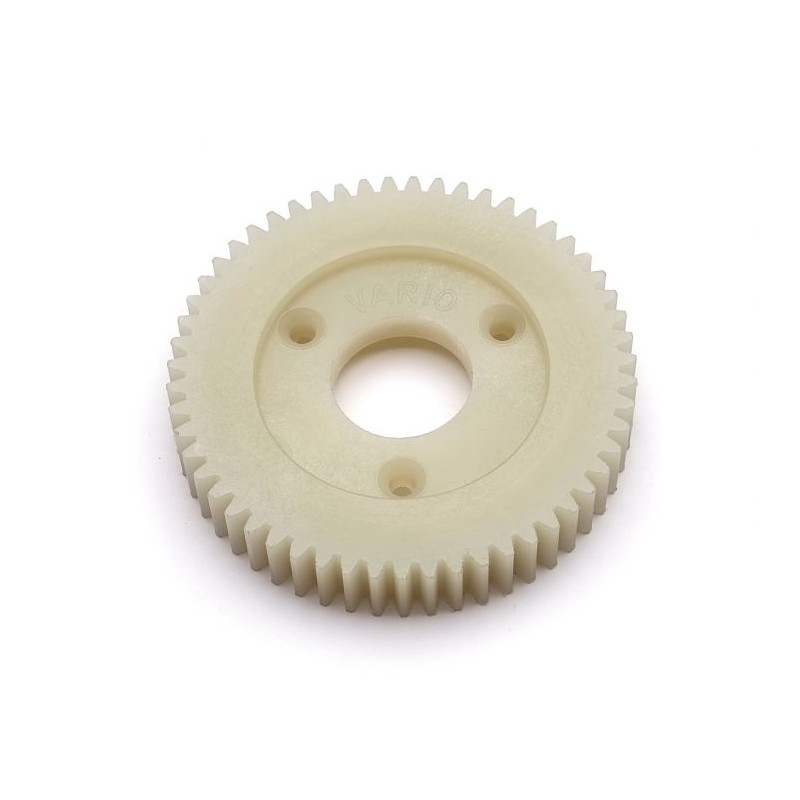

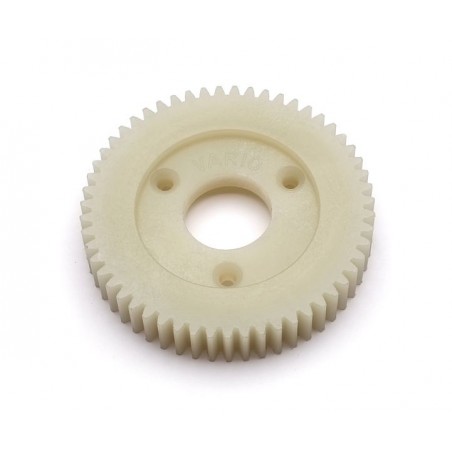

Engranaje de 55 dientes

Riferimento: 44/70

Ingranaggio a 65 denti

Gear 65-tooth Delrin

Riferimento: 37/11

Gearbox cover

Gearbox cover for gearbox housing Ord.No. 37/10, alone.

Riferimento: 44/54

Cambio a 54 denti

Gear 54-tooth GRP The illustration shows a symbol with the number of teeth of the main gear. The number next to the back slash shows the number of teeth for the appropriate clutch and the resulting gear ratio.

Riferimento: 870/52

longitudinal carrier, GFK

Not available

Riferimento: 870/73

Side plate X-Treme, CFK

Not available

Riferimento: 870/2

RC frame, GFK, for X-Treme

Not available

Riferimento: 1006/10

Main gear box

The main gearbox is responsible for driving the main and tail rotors. To complete the main gearbox you will need to select a gear with the appropriate number of teeth to match your clutch, and also a gearbox connection which mates with your existing tail rotor drive system.Main gearbox, kit-form. The pinion shaft 41/25 supplied is only suitable for use...

Riferimento: 1006/9

Main gear box with freewheel

If you require a driven tail rotor for auto-rotation, the main gear hub must be fitted with a freewheel; the freewheel on the main rotor shaft then needs to be replaced by a fixed hub mounted on the main rotor shaft.Main gearbox incl. freewheel for driven tail rotor for auto-rotation landings; kit-form. The pinion shaft 41/25 supplied is only suitable for...

Riferimento: 37/10

Gearbox housing incl cover

Even though the main gearbox is placed in the centre of the mechanics it is easily accessible for maintenance. For visual checks of gear meshing clearance, and for greasing the main gearbox it is provided with a gearbox cover.

Riferimento: 47/10

Spacer 7 x 13 x 5 mm

Spacer 7 x 13 x 5 mm

Riferimento: 871/22

Ingranaggio 8 mm, 22 denti

Not available

Riferimento: 41/15

Pinion shaft for 12 mm gear

The pinion shaft (shaft and integral spur gear) is one link in the transmission which transfers the engine's power to the main rotor.Pinion shaft for 12 mm gears The length of both pinion shafts is ideal for the optional installation of a driven tail rotor for auto-rotation landings; fitting does not require the gearbox to be dismanteled.

Riferimento: 4/30

90° Nippel mit Zollgewinde

Riferimento: 44/45

Cambio a 58 denti

Gear 58-tooth Delrin The illustration shows a symbol with the number of teeth of the main gear. The number next to the back slash shows the number of teeth for the appropriate clutch and the resulting gear ratio.

Riferimento: 251/200

Kit for lowering the tail output, X-Treme

When the X-Treme mechanics are mounted in certail fuselage such as Agusta, UH-1D or Dauphin, the tail output needs to be lower. This kit lowers the tail output.

Riferimento: 41/25

Pinion shaft 16.5 mm - for AR

The pinion shaft (shaft and integral spur gear) is one link in the transmission which transfers the engine's power to the main rotor.Pinion shaft with 16.5 mm gear depthsolely for the use with the freewheel bell Ord.No. 36/40or with the hub bell Ord.No. 36/45The length of both pinion shafts is ideal for the optional installation of a driven tail rotor for...
