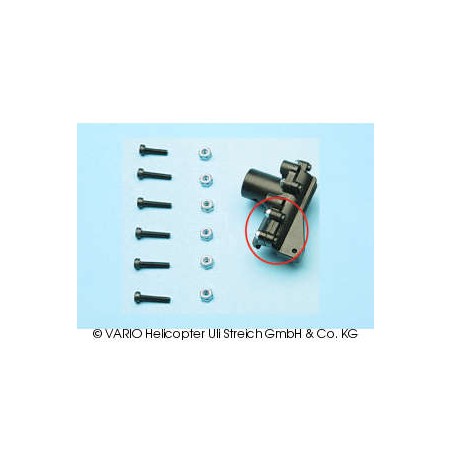

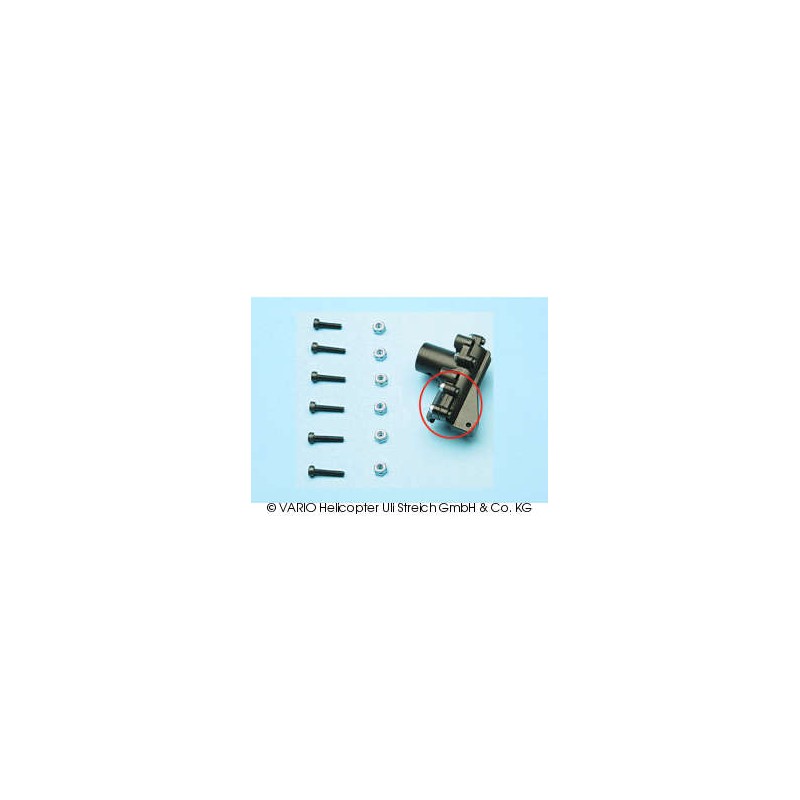

Verschraubung 12teilig

Riferimento: 92/87

3-Blatt Heckrotor T-Rex-Lama

Riferimento: 99/9

Distanziale rotore coda

 Control ringfor tail rotor shaft 5 mm ∅

Riferimento: 95/7

Ingranaggio conico 5 mm, 19 denti

  Bevel gear 5 mm 19 tooth module 0.8

Riferimento: 94/18

Albero ø 6 x 87 mm.

 Tail rotor shaft6 x 87 mm

Riferimento: 98/16

Boccola scorrevole per coda

 Control sleevefor tail rotor shaft 6 mm ∅with nut (left-hand thread!)

Riferimento: 98/15

Boccola scorrevole per coda

 Control sleevefor tail rotor shaft 5 mm ∅with nut (left-hand thread!)

Riferimento: 92/36

Coperchio per carter coda, alluminio

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Riferimento: 97/16

Bellcrank aluminum right

Not available

Riferimento: 94 C

Seeger per albero Ø 5 mm

 Circlip for 5 mm ∅ shaftpack of 2

Riferimento: 95/10

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 5 mm

Not available

Riferimento: 94/10

Albero rotore di coda 5 x 82 mm

 Tail rotor shaft5 x 82 mm

Riferimento: 97/5

Molle per rotore coda

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Riferimento: 94/16

Albero rotore di coda 6 x 92 mm

 Tail rotor shaft6 x 92 mm

Riferimento: 34/5

Calettatore di passo per rotore di coda

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Riferimento: 100/22

Comandi snodati

 Ball linkspack of 2shortconnection for ballraces

Riferimento: 97/30

Leva commando rotore coda destra

Bellcrank, right-hand
