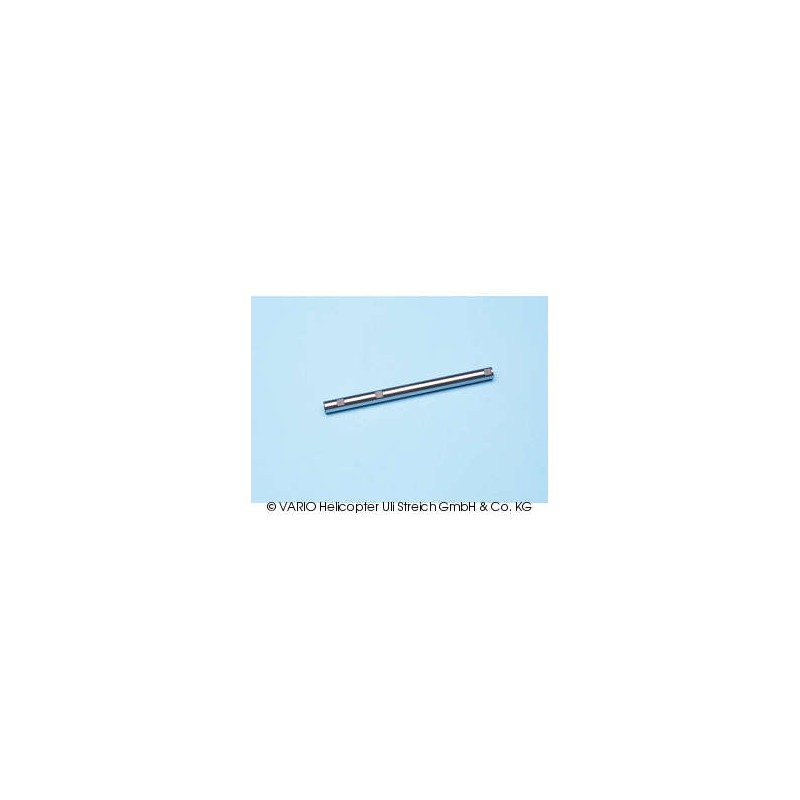

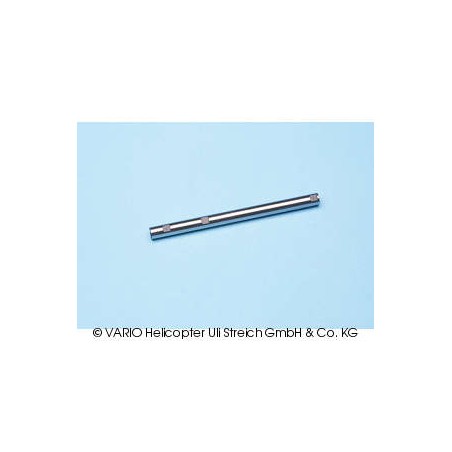

Heckrotorwelle 6 x 87 mm

Riferimento: 98/16

Boccola scorrevole per coda

 Control sleevefor tail rotor shaft 6 mm ∅with nut (left-hand thread!)

Riferimento: 95/10

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 5 mm

Not available

Riferimento: 92/80

Set per ampliamento del rotore di coda a tre pale

Scale tail rotor fittings set, complete as illustrated

Riferimento: 97/10

Leva commando rotore coda

Bellcrank, left-hand

Riferimento: 99/6

Distanziale rotore coda

 Control ringfor tail rotor shaft 6 mm ∅

Riferimento: 92/37

Coperchio per carter coda, VTR

Housing cover for aluminium tail rotor with 6 mm shaftaluminium

Riferimento: 92/87

3-Blatt Heckrotor T-Rex-Lama

Riferimento: 103/7

Boccola 5 x 6 x 14 mm

Not available

Riferimento: 97/13

Heckrotorumlenkhebel rechts verstärkt

Riferimento: 97/20

Set leva commando rotore coda

Bellcrank set, with flanged bearings, bush and shim washer

Riferimento: 054

Viti a brugola per fissaggio pale coda M3 x 20 G12

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Riferimento: 92/11

Viti per carter rotore di coda

 Screw set, 12-part1 x socket-head cap screw M 2 x 8 (90015)5 x socket-head cap screw M 2 x 10 (90020)6 x self-locking nut M 2 (90525)

Riferimento: 97/5

Molle per rotore coda

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Riferimento: 97/15

Leva comando coda, alluminio , sinistra

Not available

Riferimento: 92/10

Carter rotore di coda

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Riferimento: 100/22

Comandi snodati

 Ball linkspack of 2shortconnection for ballraces
