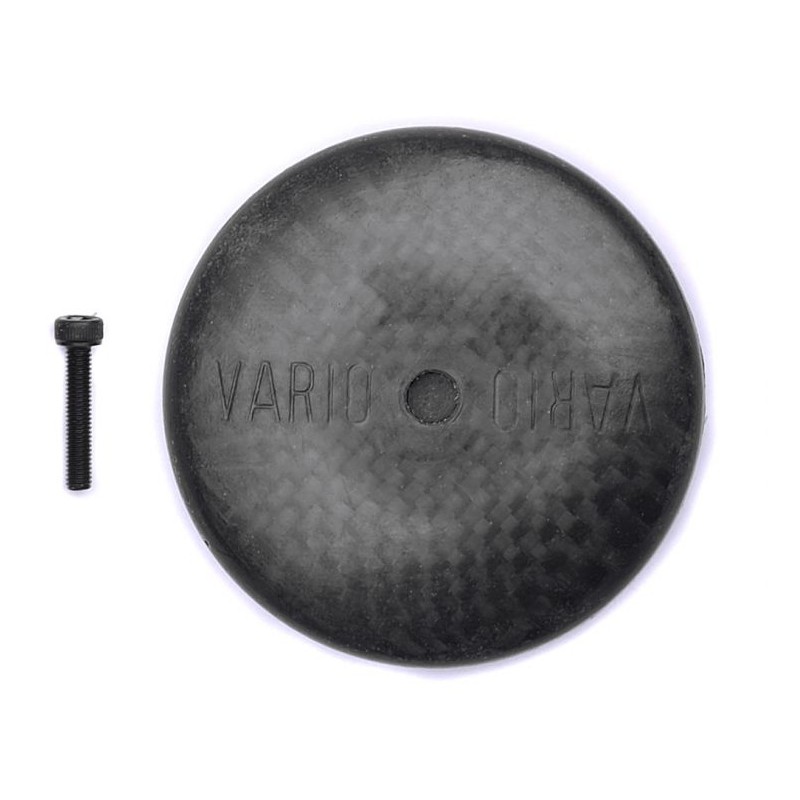

CFRP rotor brake

Reference: 10/81

Silicone sleeve 5 x 7 x 100 mm

 Silicone sleeve5 x 7 x 100 mmtransparent

Reference: 80/30

Control bridge 2-part metal, 5 mm

Control bridge 2-part metal, for 5 mm ∅ flybar.

Reference: 74/3

O-ring 1 x 4 mm soft

content of the package: 8 pieces

Reference: 702/97

Linkage ball

Not available

Reference: 76/8

Ballrace spacer, steel

Ballrace spacer, steel Content of the package: 1 piece.

Reference: 87/20

Actuating lever

The connection between mixer lever and variable rocker is carried out by an actuating lever, triple ballraced. Content of the package: 2 pieces

Reference: 80/10

Control bridge with metal balls

The control bridge actuates the flybar. The servos pass the control commands to the swashplate. The collective pitch compensator connected to the swashplate transfers the movement to the control bridge via the angled pushrods. The flybar accepts the control commands and passes them on to the blade holders and the rotor disc.Control bridge, GRP, for 4 mm ∅...

Reference: 82/50

Rocker, aluminium

Rocker, aluminium, for rotor head 702/75, alone.

Reference: 480/54

Anillo de sujeción plateado con 3 orificios

Reference: 68/26

Swashplate link piece

Swashplate link piece, straight. Content of the package: 2 pieces

Reference: 10/91

Silicone sleeve 8 x 2 x 100 mm

Content of the package: 1 piece

Reference: 71/27

Pivot pin with circlip

Pivot pin with circlipContent of the package 2 pieces

Reference: 74/11

O-ring 1,5 x 11 mm soft

O-ring 1,5 x 11 mm soft Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 832/70

Mixer arms, aluminium

Mixer arms, aluminium Content of the package: 2 pieces

Reference: 117/3

Spacer washer 10 x 24.6 mm

Spacer washer for rotor headPack of 2

Reference: 72/50

Electro rotor head centre piece

Electro rotor head centre piece, alu.
