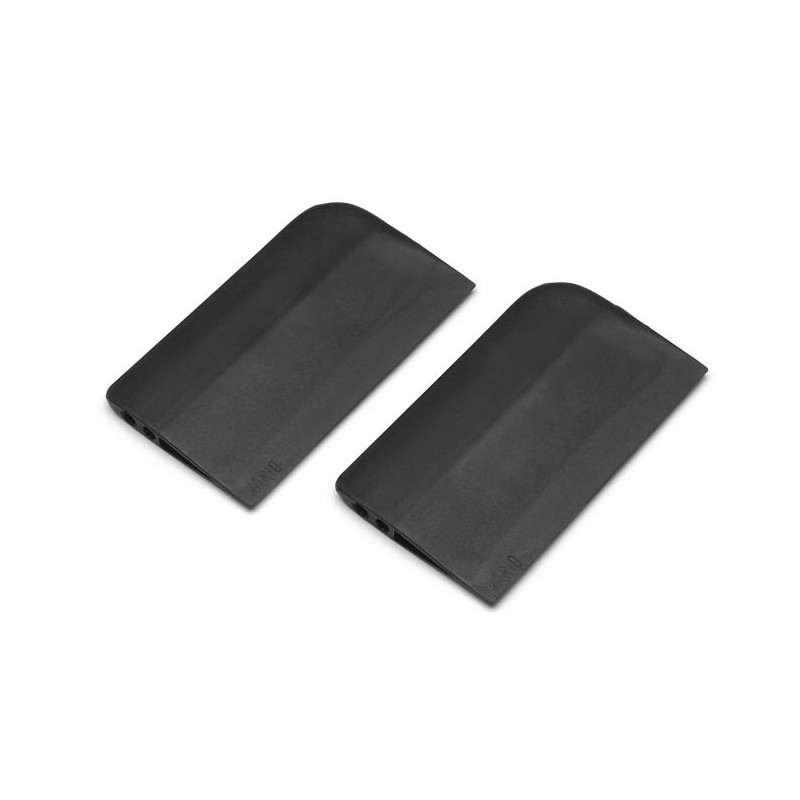

Paddles

Reference: 71/20

Collective pitch compensator 10 mm ∅

Pitch compensator, complete, for 10 mm ∅ main shaft, centre piece GRP

Reference: 76/16

GRP blade holder, 5 mm ∅ hole

As demands on helicopters continue to rise, so stronger blade holders are required. In this case a 14 mm blade holder is combined with a 5 mm Ø hole for blade retention, i.e. the matching blade holder screws and self-locking nuts are M5 in size.GRP blade holder with long linkage armfor two-blade rotor heads

Reference: 832/87

90 degree link

A 90° twisted double ball-link connect the mixer lever to the ball collet on the flybar, suitable for the rotor head 722/72.Content of the package: 2 pieces

Reference: 832/54

Clamp ring

Clamp ring for rotor head 722/72.

Reference: 86

Ball collet 4 mm

Ball collets provide the fixation of double ball-links on the flybar, in order to settle the essential distance to the rocker. Ball collet 4 mm Ø, pack of 2, chrome-plated.

Reference: 832/78

Mixer lever, aluminium

This mixer lever from aluminium matches the dimensions of the rotor head 722/72 (e.g. model Robinson R22) with a max. rotor disc of 2 500 mm.

Reference: 480/54

Anillo de sujeción plateado con 3 orificios

Reference: 54/16

Clamp ring pitch compensator 17 mm

The 17 mm Ø clamp ring is fitted to the rotor head centre piece, the steel pin slides in the guide slot of the pitch compensator. Rotate the clamp for fine adjustment so that your helicopter flies straight when you apply a pitch-axis command.Clamp ring for pitch compensator 17 mm Ø, length of the pin 30 mm.

Reference: 703/72

Eje de rodamiento de cuchillas para cabezal de 3 cuchillas

Reference: 54/13

Clamp ring pitch compensator 10 mm

On longer rotor shafts the clamp ring for the pitch compensator sits underneath of the centre piece directly on the rotor shaft.Clamp ring for pitch compensator 10 mm Ø, length of the pin 30 mm.

Reference: 82/53

Washer 3.5 x 12 x 3 mm, rubber

Washer 3.5 x 12 x 3 mm, rubber Content of the package: 2 pieces

Reference: 86/10

Ball collet 5 mm

Ball collets provide the fixation of double ball-links on the flybar, in order to settle the essential distance to the rocker.Ball collet 5 mm Ø, pack of 2, chrome-plated.

Reference: 74/5

O-ring 3 x 7 mm soft

O-ring 3 x 7 mm soft Content of the package: 4 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 91/67

Heat shrink for paddles

Heat shrinkapprox. 0.5 m, alone

Reference: 832/73

Blade pivot shaft 10 x 187 mm

Blade pivot shaft 10 x 187 mm for rotor head 722/72

Reference: 76/10

Blade holder, aluminium

Blade holder, aluminium, alone.
