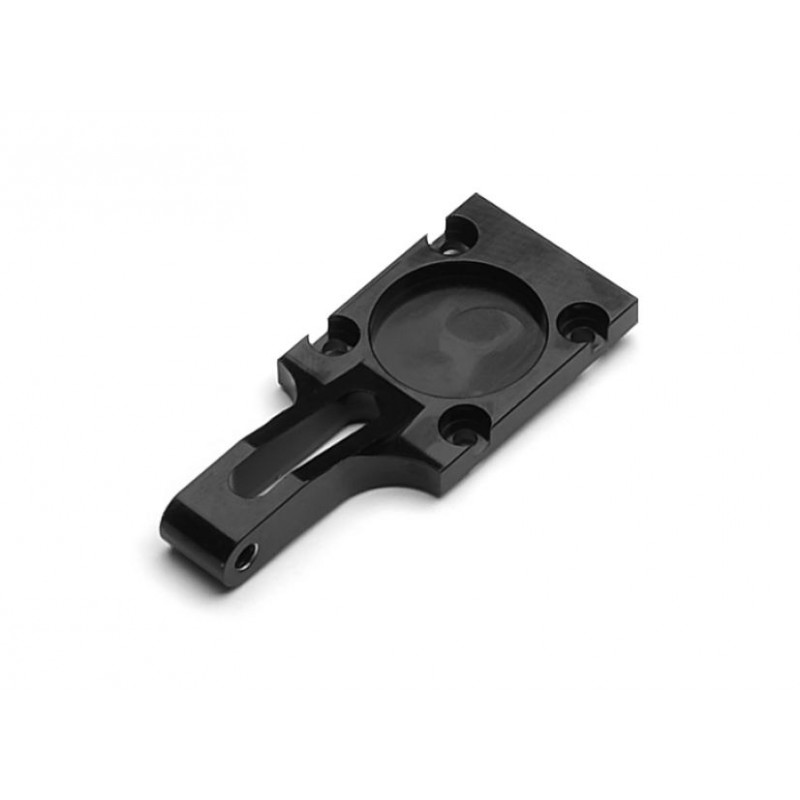

Housing cover for tail rotor

Référence: 97/16

Bellcrank aluminum right

Not available

Référence: 97/12

Renvoi d'anticouple, renforcé

The forces generated by the tail rotor rise significantly with large, heavy model helicopters; larger tail rotor blades also have the same effect. This reinforced aluminium tail rotor bellcrank is the item of choice wherever high control power is required, as it prevents the lever twisting.Reinforced tail rotor bellcrank, complete with screw fixings

Référence: 103/10

Porte-pales AC

Tail blade holder for hub with 5 mm.

Référence: 92/38

Gehäusedeckel lang

Référence: 94/18

Axe AC 6 x 87 mm

 Tail rotor shaft6 x 87 mm

Référence: 95/11

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 6 mm

Not available

Référence: 98/15

Douille de commande AC

 Control sleevefor tail rotor shaft 5 mm ∅with nut (left-hand thread!)

Référence: 34/5

Incidencemètre pour anticouple

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Référence: 94/19

Heckrotorwelle 6 x 112 mm

Référence: 92/80

Kit complément anticouple

Scale tail rotor fittings set, complete as illustrated

Référence: 97/30

Palonnier AC, droite

Bellcrank, right-hand

Référence: 92/81

Heckrotor-Ergänzungsset 3-Blatt

Référence: 7/92

Boîtier d'anticouple

 Content of the package1 piece

Référence: 92/10

Boîtier AC

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Référence: 92/39

Gehäuseverlängerung

Référence: 97/20

Kit palonnier AC

Bellcrank set, with flanged bearings, bush and shim washer
