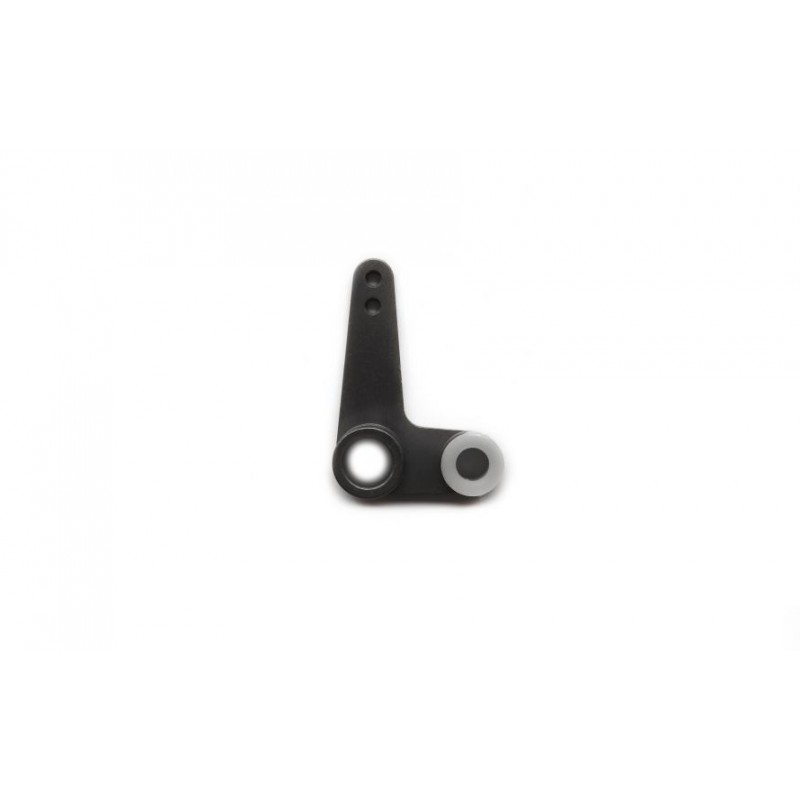

Bellcrank aluminum right

Reference: 95/20

Bevel gear set, speed up gearing

Bevel gear set, speed up gearing for the tail rotor of the Hughes 500, Ord.No. 9040, complete as illustrated.

Reference: 97/15

Bellcrank aluminum left

Not available

Reference: 97/13

Heckrotorumlenkhebel rechts verstärkt

Reference: 95/11

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 6 mm

Not available

Reference: 103/20

Tail blade holder set, rotor

Changing from a 2-blade tail rotor to a 3-blade version is quick and affordable if you use our complete blade holder set. The set includes all the components you need, including blade holder, thrust bearing, ballraces, ball-end bolt, screws etc., without 3-blade hub.

Reference: 97/5

Return spring, chromed

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Reference: 95/10

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 5 mm

Not available

Reference: 92/11

Srews set 12-part

 Screw set, 12-part1 x socket-head cap screw M 2 x 8 (90015)5 x socket-head cap screw M 2 x 10 (90020)6 x self-locking nut M 2 (90525)

Reference: 94/15

Tail rotor shaft 5 x 84.5 mm

 Tail rotor shaft5 x 82 mm

Reference: 103/10

Tail blade holder

Tail blade holder for hub with 5 mm.

Reference: 92/87

3-Blatt Heckrotor T-Rex-Lama

Reference: 97/20

Bellcrank set

Bellcrank set, with flanged bearings, bush and shim washer

Reference: 100/22

Ball links for tail blade grips

 Ball linkspack of 2shortconnection for ballraces

Reference: 34/5

Tail rotor pitch gauge

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Reference: 92/82

Heckrotor-Ergänzungsset 4-Blatt

Reference: 92/94

Fenestron control ring

 Content of the package1 piece
