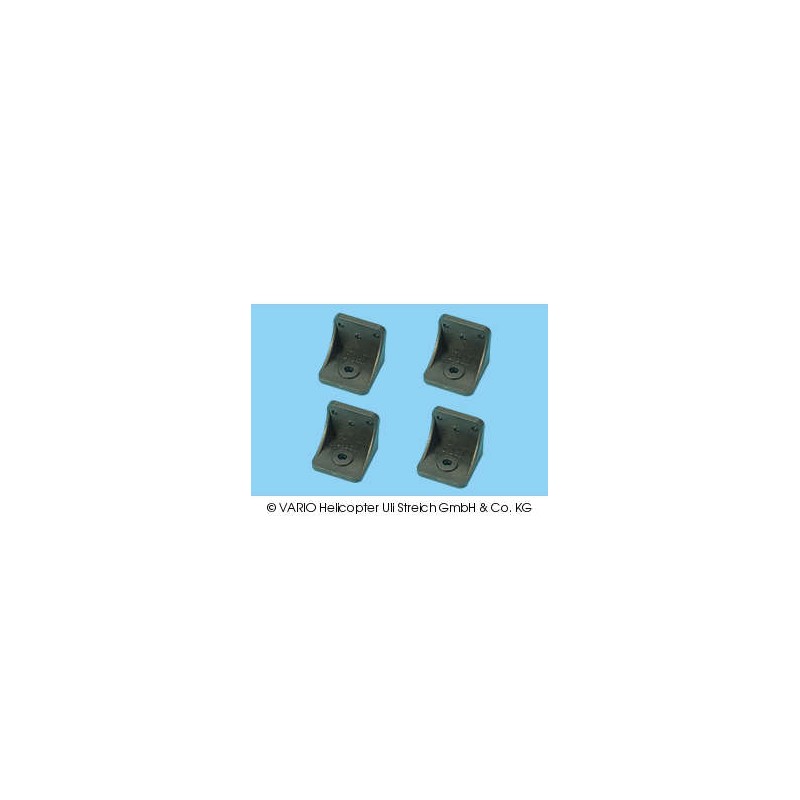

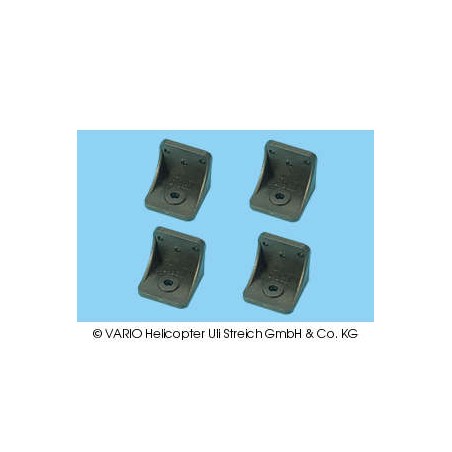

Mechanics mount, X-Treme

Reference: 4/30

90° Nippel mit Zollgewinde

Reference: 809/200

SkyFox side frames with cooling duct

Not available

Reference: 870/51

Rear vertical frame, X-Treme

Not available

Reference: 37/10

Gearbox housing incl cover

Even though the main gearbox is placed in the centre of the mechanics it is easily accessible for maintenance. For visual checks of gear meshing clearance, and for greasing the main gearbox it is provided with a gearbox cover.

Reference: 871/2

Servo plate CFK for throttle Servo, X-Treme

Not available

Reference: 871/102

Main gear, 102 teeth

Not available

Reference: 47/10

Spacer 7 x 13 x 5 mm

Spacer 7 x 13 x 5 mm

Reference: 251/200

Kit for lowering the tail output, X-Treme

When the X-Treme mechanics are mounted in certail fuselage such as Agusta, UH-1D or Dauphin, the tail output needs to be lower. This kit lowers the tail output.

Reference: 809/50

SkyFox left side frame

Not available

Reference: 37/11

Gearbox cover

Gearbox cover for gearbox housing Ord.No. 37/10, alone.

Reference: 42

Bevel gear 6 mm, 16-tooth

 Bevel gear 6 mm16-toothmodule 0.7

Reference: 44/9

Main gear hub

Not available

Reference: 44/70

Gear 65-tooth

Gear 65-tooth Delrin

Reference: 41/15

Pinion shaft for 12 mm gear

The pinion shaft (shaft and integral spur gear) is one link in the transmission which transfers the engine's power to the main rotor.Pinion shaft for 12 mm gears The length of both pinion shafts is ideal for the optional installation of a driven tail rotor for auto-rotation landings; fitting does not require the gearbox to be dismanteled.

Reference: 870/52

longitudinal carrier, GFK

Not available

Reference: 41/25

Pinion shaft 16.5 mm - for AR

The pinion shaft (shaft and integral spur gear) is one link in the transmission which transfers the engine's power to the main rotor.Pinion shaft with 16.5 mm gear depthsolely for the use with the freewheel bell Ord.No. 36/40or with the hub bell Ord.No. 36/45The length of both pinion shafts is ideal for the optional installation of a driven tail rotor for...
