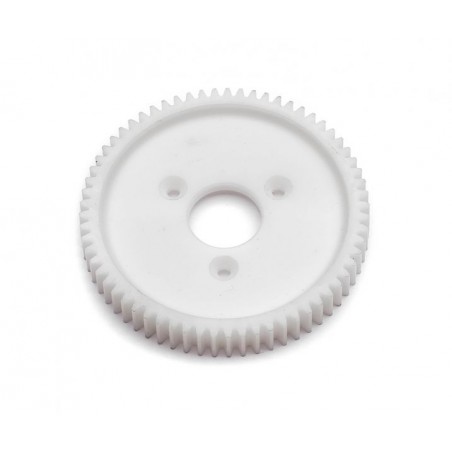

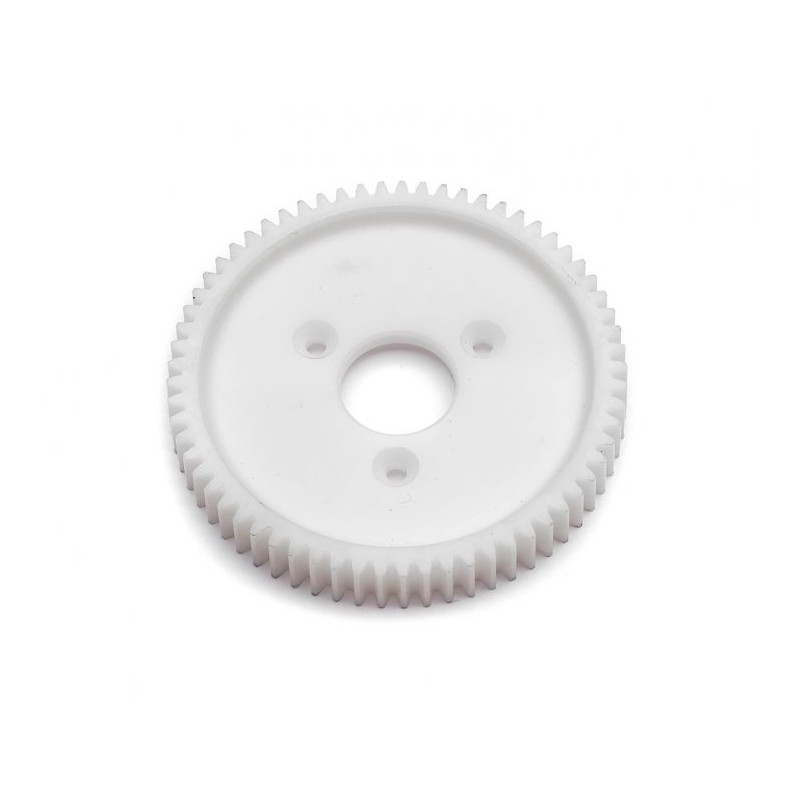

Couronne 65 dents

Reference: 44/9

Main gear hub

Not available

Reference: 37/10

Gearbox housing incl cover

Even though the main gearbox is placed in the centre of the mechanics it is easily accessible for maintenance. For visual checks of gear meshing clearance, and for greasing the main gearbox it is provided with a gearbox cover.

Reference: 870/50

Front vertical frame, X-Treme

Not available

Reference: 44/58

Gear 52-tooth

The combination of 52 : 32 teeth is used for the Sky Fox Boxer model, driven by a 4-stroke boxer motor with 2 x 13.26 cc capacity. 2-stroke glow plug engines (which are fitting our models because of performance and dimensions), don't achieve a satisfying result with this gear ratio.The illustration shows a symbol with the number of teeth of the main gear....

Reference: 44/45

Gear 58-tooth

Gear 58-tooth Delrin The illustration shows a symbol with the number of teeth of the main gear. The number next to the back slash shows the number of teeth for the appropriate clutch and the resulting gear ratio.

Reference: 833/44

Toothed belt pulley 55-tooth 3M

Toothed belt pulley 55-tooth.

Reference: 41/15

Pinion shaft for 12 mm gear

The pinion shaft (shaft and integral spur gear) is one link in the transmission which transfers the engine's power to the main rotor.Pinion shaft for 12 mm gears The length of both pinion shafts is ideal for the optional installation of a driven tail rotor for auto-rotation landings; fitting does not require the gearbox to be dismanteled.

Reference: 42

Bevel gear 6 mm, 16-tooth

 Bevel gear 6 mm16-toothmodule 0.7

Reference: 809/200

SkyFox side frames with cooling duct

Not available

Reference: 1006/10

Main gear box

The main gearbox is responsible for driving the main and tail rotors. To complete the main gearbox you will need to select a gear with the appropriate number of teeth to match your clutch, and also a gearbox connection which mates with your existing tail rotor drive system.Main gearbox, kit-form. The pinion shaft 41/25 supplied is only suitable for use...

Reference: 44/52

Gear 52-tooth

Gear 52-tooth GRP The illustration shows a symbol with the number of teeth of the main gear. The number next to the back slash shows the number of teeth for the appropriate clutch and the resulting gear ratio.

Reference: 4/7

Mechanics mount, X-Treme

Not available

Reference: 4/30

90° Nippel mit Zollgewinde

Reference: 41/25

Pinion shaft 16.5 mm - for AR

The pinion shaft (shaft and integral spur gear) is one link in the transmission which transfers the engine's power to the main rotor.Pinion shaft with 16.5 mm gear depthsolely for the use with the freewheel bell Ord.No. 36/40or with the hub bell Ord.No. 36/45The length of both pinion shafts is ideal for the optional installation of a driven tail rotor for...

Reference: 871/22

Gear 8 mm, 22 teeth

Not available

Reference: 1006/9

Main gear box with freewheel

If you require a driven tail rotor for auto-rotation, the main gear hub must be fitted with a freewheel; the freewheel on the main rotor shaft then needs to be replaced by a fixed hub mounted on the main rotor shaft.Main gearbox incl. freewheel for driven tail rotor for auto-rotation landings; kit-form. The pinion shaft 41/25 supplied is only suitable for...
