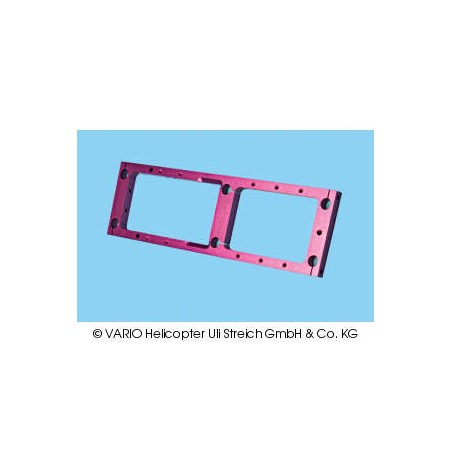

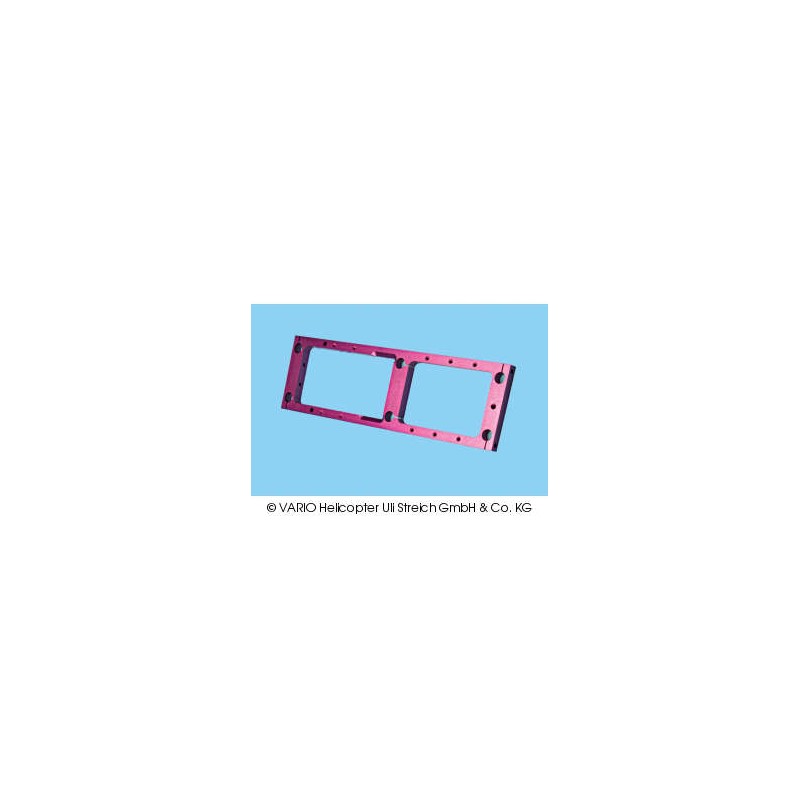

Rear vertical frame, X-Treme

Reference: 251/200

Kit for lowering the tail output, X-Treme

When the X-Treme mechanics are mounted in certail fuselage such as Agusta, UH-1D or Dauphin, the tail output needs to be lower. This kit lowers the tail output.

Reference: 44/70

Gear 65-tooth

Gear 65-tooth Delrin

Reference: 1006/9

Main gear box with freewheel

If you require a driven tail rotor for auto-rotation, the main gear hub must be fitted with a freewheel; the freewheel on the main rotor shaft then needs to be replaced by a fixed hub mounted on the main rotor shaft.Main gearbox incl. freewheel for driven tail rotor for auto-rotation landings; kit-form. The pinion shaft 41/25 supplied is only suitable for...

Reference: 870/73

Side plate X-Treme, CFK

Not available

Reference: 870/5

Servo frame, GFK, for X-Treme

Pack of 2

Reference: 833/44

Toothed belt pulley 55-tooth 3M

Toothed belt pulley 55-tooth.

Reference: 870/6

Gyro plate GFK, X-Treme

Not available

Reference: 870/53

Bearing plate, GFK

Not available

Reference: 44/9

Main gear hub

Not available

Reference: 42/19

Bevel gear 6 mm, 19-tooth

 Bevel gear6 mm Ømodule 0.719-tooth

Reference: 47/10

Spacer 7 x 13 x 5 mm

Spacer 7 x 13 x 5 mm

Reference: 4/30

90° Nippel mit Zollgewinde

Reference: 870/52

longitudinal carrier, GFK

Not available

Reference: 44/45

Gear 58-tooth

Gear 58-tooth Delrin The illustration shows a symbol with the number of teeth of the main gear. The number next to the back slash shows the number of teeth for the appropriate clutch and the resulting gear ratio.

Reference: 44/54

Gear 54-tooth

Gear 54-tooth GRP The illustration shows a symbol with the number of teeth of the main gear. The number next to the back slash shows the number of teeth for the appropriate clutch and the resulting gear ratio.

Reference: 37/10

Gearbox housing incl cover

Even though the main gearbox is placed in the centre of the mechanics it is easily accessible for maintenance. For visual checks of gear meshing clearance, and for greasing the main gearbox it is provided with a gearbox cover.
