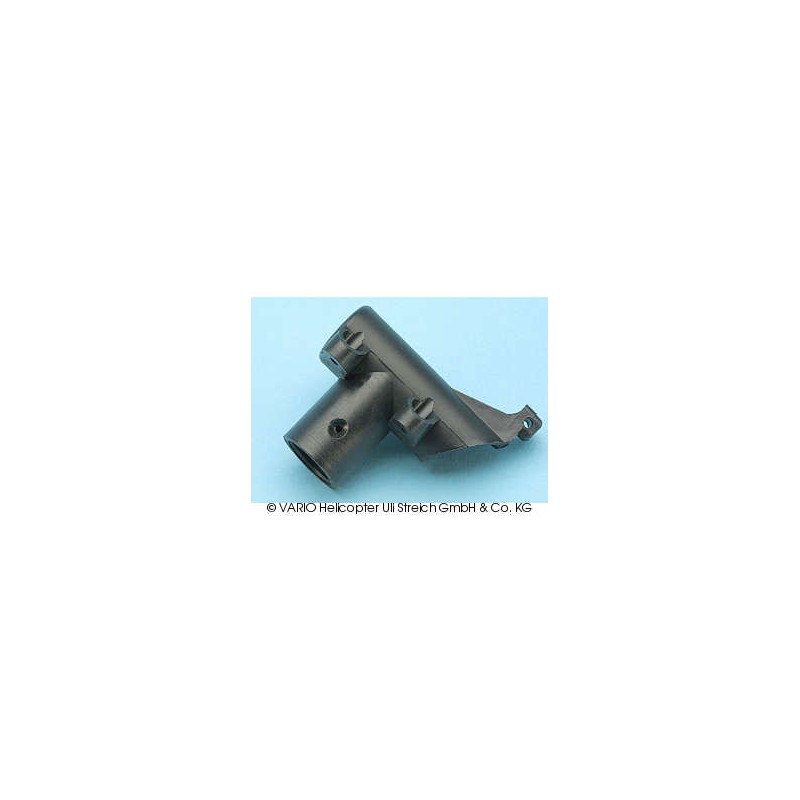

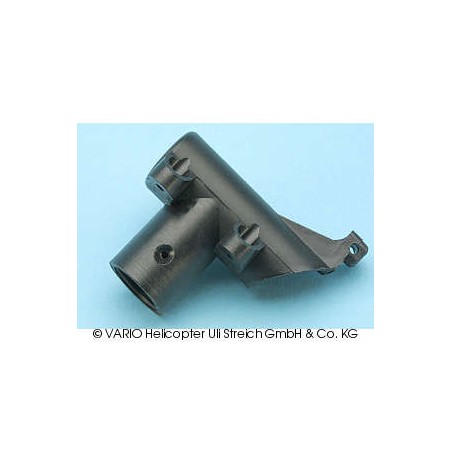

Tail rotor housing

Riferimento: 34/5

Calettatore di passo per rotore di coda

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Riferimento: 95/20

Ingranaggio-Set per alzare i giri

Bevel gear set, speed up gearing for the tail rotor of the Hughes 500, Ord.No. 9040, complete as illustrated.

Riferimento: 97/15

Leva comando coda, alluminio , sinistra

Not available

Riferimento: 103/20

Set porta pale di coda

Changing from a 2-blade tail rotor to a 3-blade version is quick and affordable if you use our complete blade holder set. The set includes all the components you need, including blade holder, thrust bearing, ballraces, ball-end bolt, screws etc., without 3-blade hub.

Riferimento: 94/16

Albero rotore di coda 6 x 92 mm

 Tail rotor shaft6 x 92 mm

Riferimento: 94 C

Seeger per albero Ø 5 mm

 Circlip for 5 mm ∅ shaftpack of 2

Riferimento: 97/10

Leva commando rotore coda

Bellcrank, left-hand

Riferimento: 92/81

Heckrotor-Ergänzungsset 3-Blatt

Riferimento: 97/30

Leva commando rotore coda destra

Bellcrank, right-hand

Riferimento: 92/39

Gehäuseverlängerung

Riferimento: 95/11

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 6 mm

Not available

Riferimento: 92/82

Heckrotor-Ergänzungsset 4-Blatt

Riferimento: 95/7

Ingranaggio conico 5 mm, 19 denti

  Bevel gear 5 mm 19 tooth module 0.8

Riferimento: 100/22

Comandi snodati

 Ball linkspack of 2shortconnection for ballraces

Riferimento: 92/37

Coperchio per carter coda, VTR

Housing cover for aluminium tail rotor with 6 mm shaftaluminium

Riferimento: 94/10

Albero rotore di coda 5 x 82 mm

 Tail rotor shaft5 x 82 mm
