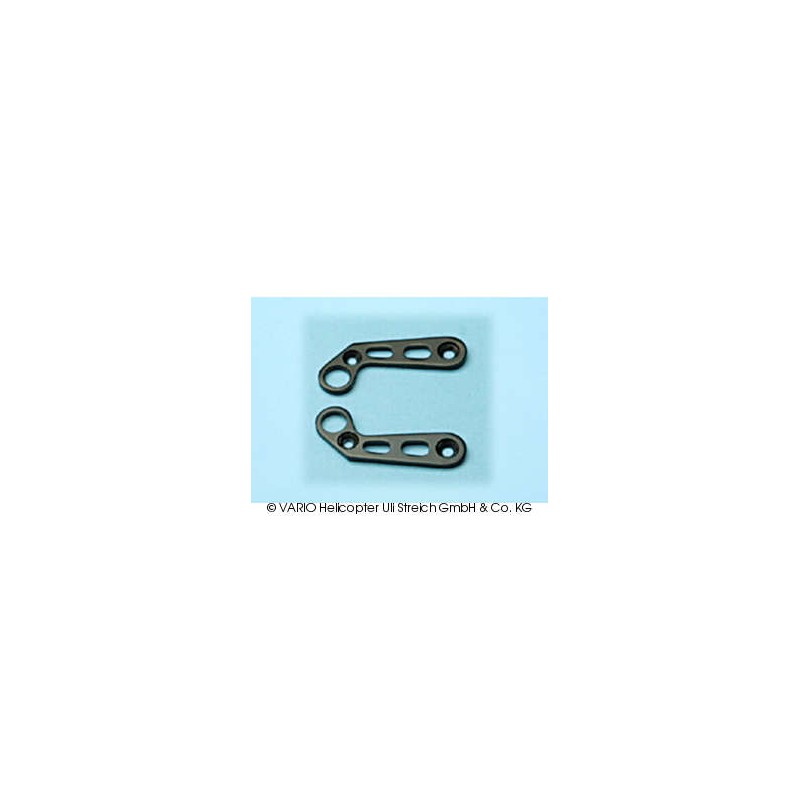

Aluminium side frames

Reference: 82/23

Washer for Delta rocker 5 mm

Washer for Delta rocker 5 mm Content of the package: 2 pieces

Reference: 832/47

O-ring 5 x 9 mm

O-ring 5 x 9 mm Content of the package: 2 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 76/16

GRP blade holder, 5 mm ∅ hole

As demands on helicopters continue to rise, so stronger blade holders are required. In this case a 14 mm blade holder is combined with a 5 mm Ø hole for blade retention, i.e. the matching blade holder screws and self-locking nuts are M5 in size.GRP blade holder with long linkage armfor two-blade rotor heads

Reference: 82/9

Aluminium rocker

When you use a speed regulator you put the magnets into the cut-outs of this clamp ring. Clamp ring for speed collection, 10 mm Ø.

Reference: 80/20

Control bridge 2-part metal, 4 mm

Control bridge 2-part metal, for 4 mm Ø flybar.

Reference: 832/87

90 degree link

A 90° twisted double ball-link connect the mixer lever to the ball collet on the flybar, suitable for the rotor head 722/72.Content of the package: 2 pieces

Reference: 703/72

Eje de rodamiento de cuchillas para cabezal de 3 cuchillas

Reference: 832/72

Aluminium centre piece, 12 mm

Aluminium centre piece for rotor head 722/72.

Reference: 54/18

Clamp ring for 12 mm

Same design as clamp ring 54/13, but for 12 mm Ø main rotor shaft.Clamp ring for pitch compensator 12 mm Ø, length of the pin 40 mm.

Reference: 82/30

Rocker kit Bell UH / Bell 212 / Bell 47

Not available

Reference: 74/16

O-ring 2 x 12 mm soft

O-ring 2 x 12 mm soft Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 74/21

O-ring 3.5 x 12 mm hard

O-ring 3.5 x 12 mm hard Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 832/55

Clamp ring, mixing base

Clamp ring for pitch compensator

Reference: 707/2

Rotor head cover for 4-blade head

Rotor head cover for 4-blade head incl. screw.Laminated of carbonapprox. 120 mm ∅, 25 mm high

Reference: 82/32

Washer for variable rocker 4 mm

Washer for variable rocker 4 mmContent of the package: 2 pieces

Reference: 78/45

Mixer lever set, aluminium

These mixer levers from aluminium are particularly torsion proof and feature an improved control precision. For individual settings you can change the connection of the linkage (relocate the balls).Flanged bearings 3 x 7 x 3 mm are suitable also, i.e. you use existing ballraces again.Place of installation: all rotor heads which are provided with the...
