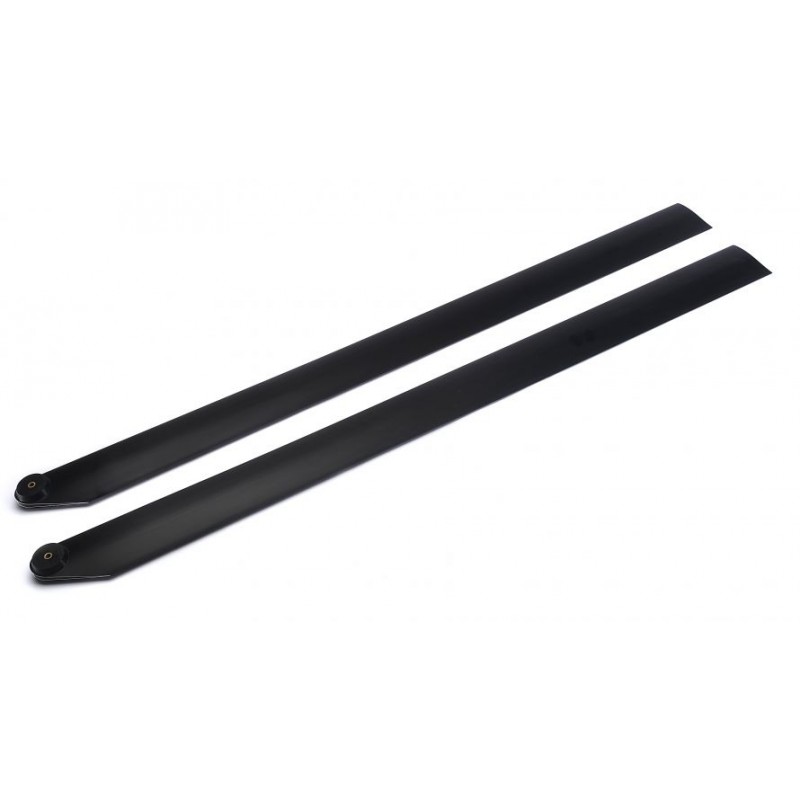

Juego de 2 cuchillas 2160 mm 1L aluminio en sentido antihorario

Reference: 403/3

FAI rotor blades 1500 mm

FAI rotor blade, rotor disc 1500 mm ØSpecification 14.0 mm blade root660 mm long64.5 mm blade chord196 g approx.9.5 mm profile thicknessGRP, symmetrical1 pair

Reference: 404/39

4-blade-set 1680 mm

Specification 4-blade-set length: 765 mm rotor disc: 1680 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 185 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 403/9

2-blade-set 1580 mm

Specification 2-blade-set length: 700 mm rotor disc: 1580 mm blade root: 14 mm 1-hole blade chord: 59 mm profile thickness: 8 mm weight: ca. 170 g material: CFRP Shark Skin finish: anthracite matt symmetry: symmetric

Reference: 404/52

5-blade-set 1880 mm

Specification 5-blade-set length: 865 mm rotor disc: 1880 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 200 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/51

4-blade-set 1880 mm

Specification 4-blade-set length: 865 mm rotor disc: 1880 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 200 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 431

2-blade-set 1630 mm

Specification 2-blade-set length: 725 mm rotor disc: 1630 mm blade root: 14 mm 1-hole blade chord: 69 mm profile thickness: 8 mm weight: ca. 210 g material: CFRP Shark Skin finish: anthracite matt symmetry: symmetric l.h.r.

Reference: 424

2-blade-set 1930 mm

Specification 2-blade-set length: 875 mm rotor disc: 1930 mm blade root: 14 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 280 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/56

4-blade-set 1930 mm Scale Hughes 500

Specification 4-blade-set length: 870 mm rotor disc: 1930 mm blade root: 14 mm 1-hole drilling: ø 5 mm blade chord: 44 mm profile thickness: 7 mm weight: ca. 200 g material: CFK Shark Skin finish: anthracite matt symmetry: symmetric (l.h.r. or r.h.r. possible)

Reference: 404/66

Juego de 4 cuchillas 2000 mm

Reference: 413/5

2-blade-set 2360 mm Alu

Specification 2-blade-set length: 1050 mm rotor disc: 2360 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 530 g material: aluminium symmetry: reflex l.h.r.

Reference: 416/5

2-blade-set 2500 mm Alu

Specification 2-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 570 g material: aluminium symmetry: reflex l.h.r.

Reference: 416/3

3-blade-set 2500 mm

Specification 3-blade-set length: 1090 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 1 mm weight: ca. 500 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 403

2-blade-set 1550 mm

Specification2-blade-setlength: 660 mmrotor disc: 1550 mmblade root: 14 mm 1-holeblade chord: 62 mmprofile thickness: 7.5 mmweight: ca. 175 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Reference: 415

2-blade-set 2160 mm

Specification 2-blade-set length: 950 mm rotor disc: 2160 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 400 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 407

2-blade-set 1500 mm

Specification2-blade-setlength: 660 mmrotor disc: 1500 mmblade root: 14 mm 1-holeblade chord: 62 mmprofile thickness: 7.5 mmweight: ca. 200 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Reference: 404/22

5-blade-set 1500 mm

Specification5-blade-setlength: 675 mmrotor disc: 1500 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 165 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.
